Connections and Wiring
24
NI-2100, NI-3100, NI-4100 Hardware Reference Guide
Using the 4-pin Mini-Phoenix Connector For Data With External Power
To use the 4-pin 3.5 mm mini-Phoenix (female) captive-wire connector for data communication and power
transfer, the incoming PWR and GND cable from the 12 VDC-compliant power supply must be connected to
the AXlink cable connector going to the Integrated Controller. FIG. 11 shows the wiring diagram. Always use
a local power supply to power the Integrated Controller unit.
Make sure to connect only the GND wire on the AXlink/PWR connector when using a separate 12 VDC
power supply. Do not connect the PWR wire to the AXlink connector’s PWR (+) opening.

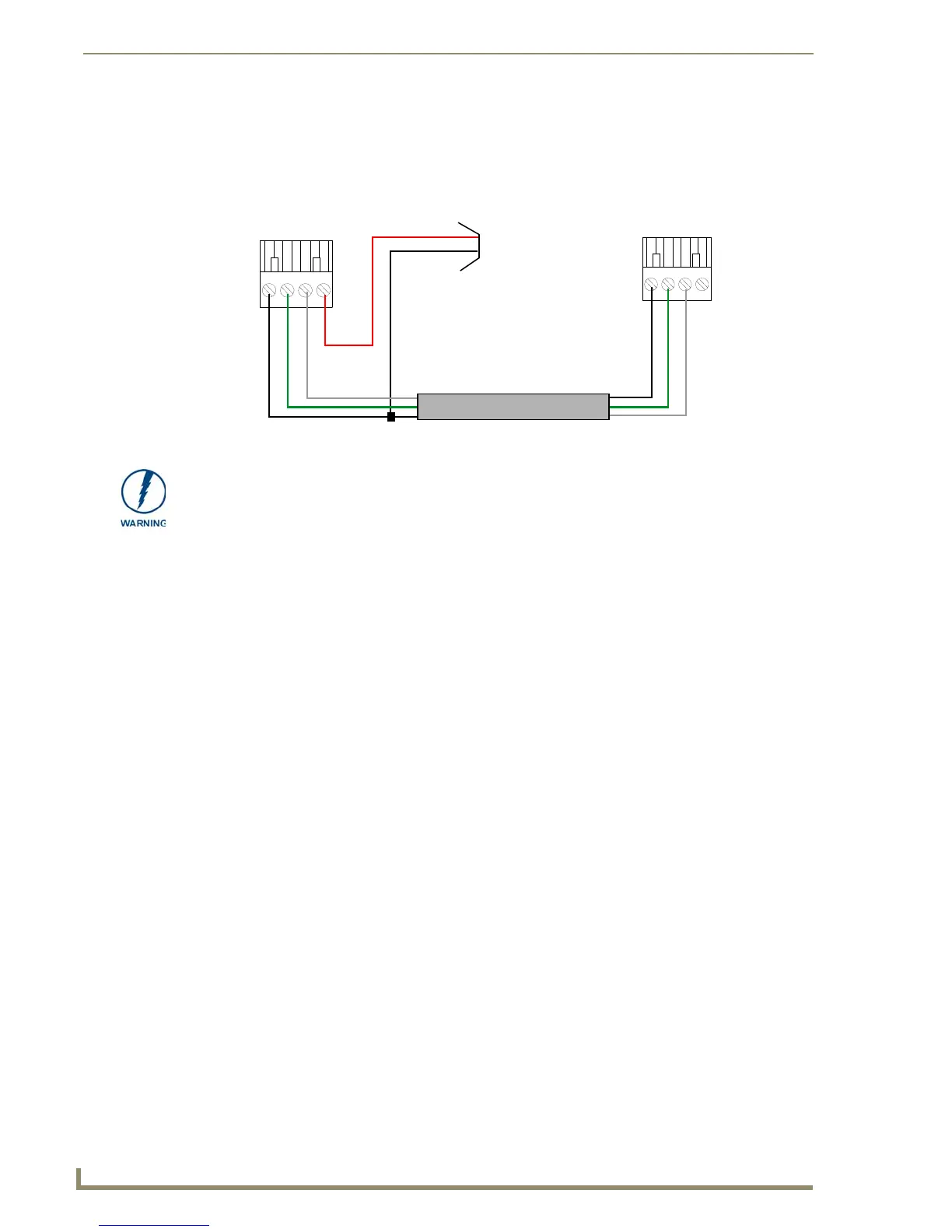

FIG. 11 4-pin mini-Phoenix connector wiring diagram (using external power source)
PWR (+)
GND (-)
Local +12 VDC
(coming from
To the Integrated Controller’s
To the external AXlink device
AXlink/PWR connector
power supply
an external
power supply)
Top view
Top view
AXP/TX
AXM/RX
GND -
AXP/TX
AXM/RX
GND -
When you connect an external power supply, do not connect the wire from the PWR
terminal (coming from the external device) to the PWR terminal on the Phoenix
connector attached to the Controller unit. Make sure to connect only the AXM, AXP,
and GND wires to the Controller’s Phoenix connector when using an external power
supply.
