Introduction
3
NI-2100, NI-3100, NI-4100 Hardware Reference Guide
NI-2100
The NI-2100 (FG2105-04) is ideal for control and automation of medium-sized rooms and multi-room
applications. The NI-2100 has 64MB of onboard RAM and is Device Discovery enabled to simplify
programming by standardizing device and function definitions, default touch panel button assignments, and
control and feedback methods.
NI-2100 Specifications

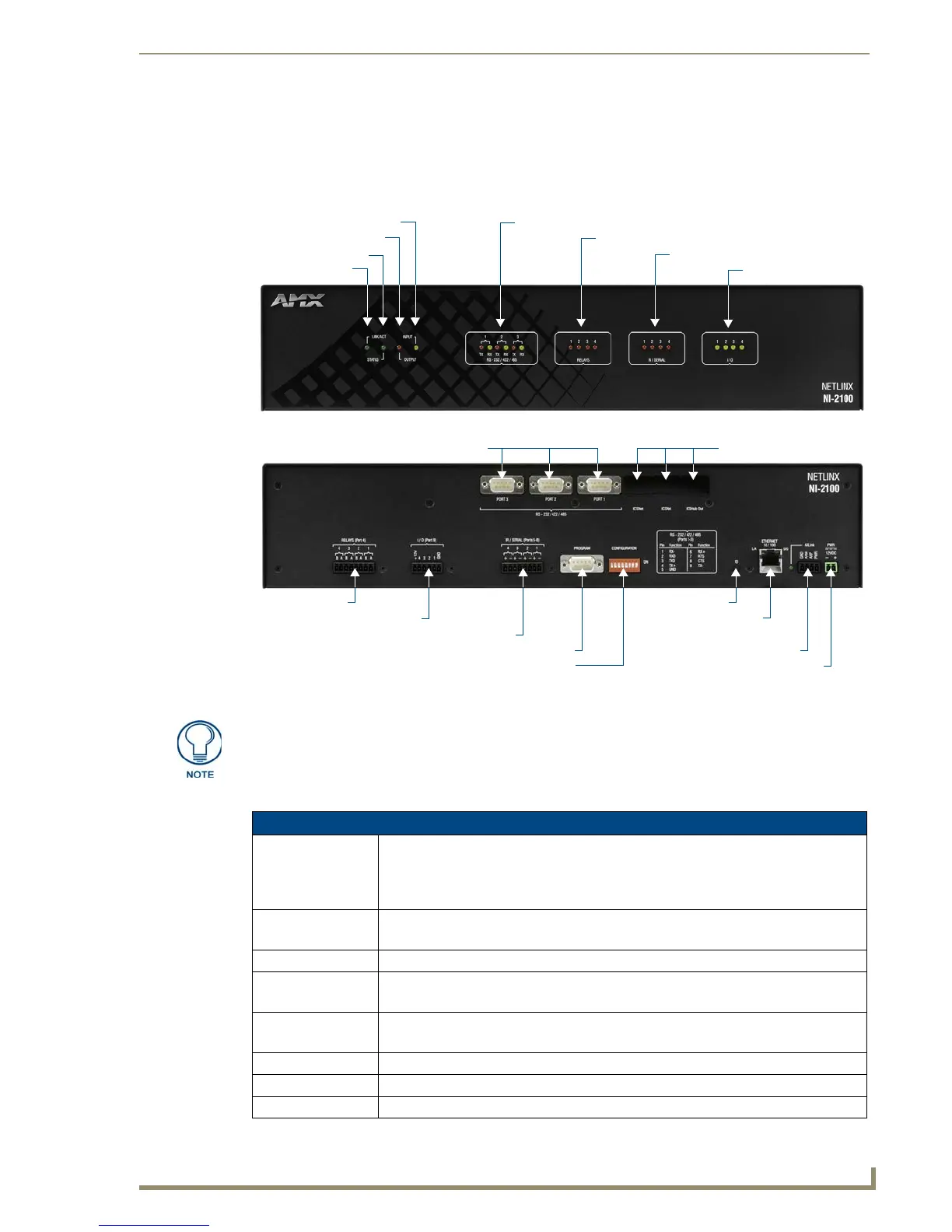

FIG. 1 NI-2100
LINK/ACT LED
STATUS LED
INPUT LED
OUTPUT LED RS-232/422/485 Status LEDs
RELAY Status LEDs
IR/SERIAL Status LEDs
I/O Status LEDs
front
rear
RS-232/422/485 (Ports 1-3)
ICSNet/ICSHub Ports
(provided by optional
ICSNet daughter card)
Relays (Port 4)
I/O (Port 9)
IR/Serial (Ports 5-8)
PROGRAM Port
CONFIGURATION DIP Switch
ID Pushbutton
ETHERNET
10/100 Port
AxLink Port
12 VDC PWR Connector
Verify you are using the latest NI firmware for the on-board Master. Verify you are
using the latest version of NetLinx Studio (available for download from
www.amx.com).
NI-2100 Specifications
Models Available: • NI-2100 64MB Controller (FG2105-04)
The NI-2100 can be upgraded to provide one ICSHub and two ICSNet ports by
installing the optional ICSNet daughter card (FG2105-10 - see Other AMX Equipment)
• NI-2100/ICS Controller with ICSNet (FG2105-14)
Dimensions (HWD): • 3 1/2" x 17" x 3 1/2" (8.8 cm x 43.2 cm x 8.8 cm)
• RU: 2
Power Requirement: 700 mA @ 12 VDC
Memory: • 64 MB SDRAM
• 1 MB Non-volatile (NV) SRAM
Compact Flash: 2GB or greater (upgradeable to 4GB - see Other AMX Equipment).
Note: AMX may increase Flash size at any time in response to market availability.
Weight: 4.50 lbs (2.04 kg)
Enclosure: Metal with black matte finish
Certifications: FCC Part 15 Class B, CE, and IEC 60950
