Preliminary Technical Data UG-1828
Rev. PrC | Page 327 of 338

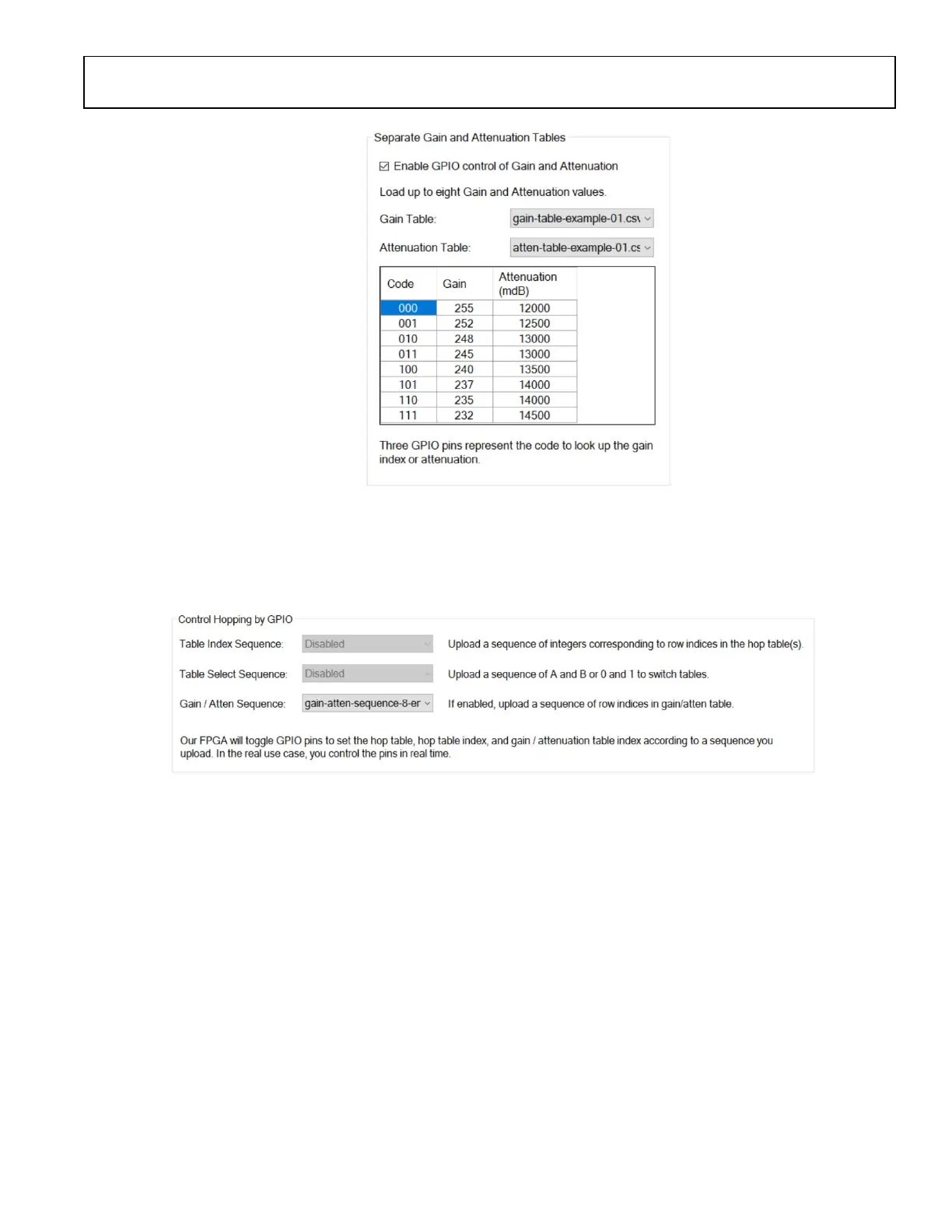

Figure 316. Separate Gain and Attenuation Tables
2. When the tables are loaded the user can enable an upload sequence in the Control Hopping by GPIO section shown in Figure
317. This CSV file contains a row of integers from 0 to 7 in the sequence that the user wants. The integer 0 will correspond to
the gain and attenuation value used in the table shown in Figure 316. This allows the user to reuse the same gain and attenuation
settings for multiple hops without the need to load the setting multiple times.
Figure 317. Control Hopping by GPIO
The FPGA board will toggle the GPIO pins to set the hop table index according to the sequence loaded. The user can select
GPIO pins used in the GPIO Pins for Control of Hop Table section.
