Description of the equipment
5
Description of the equipment
The interface connectors are located on the back panel. The external barcode reader or keyboard
can be connected to the “keyboard” (PS2) connector. The host computer can be connected to
the USB or to the serial interface connector. To use the serial interface a special RS232 cable
with the appropriate connector is needed. Please contact your distributor to order this acces-
sory. You may damage the instrument when using the wrong cable for serial port connection.
2.1. Packing list
1 Instrument
3 Strip holder
1 Adapter
1 Strip holder with grey strip
1 Manual
1 CD
1 Cable USB
1 Paper roll

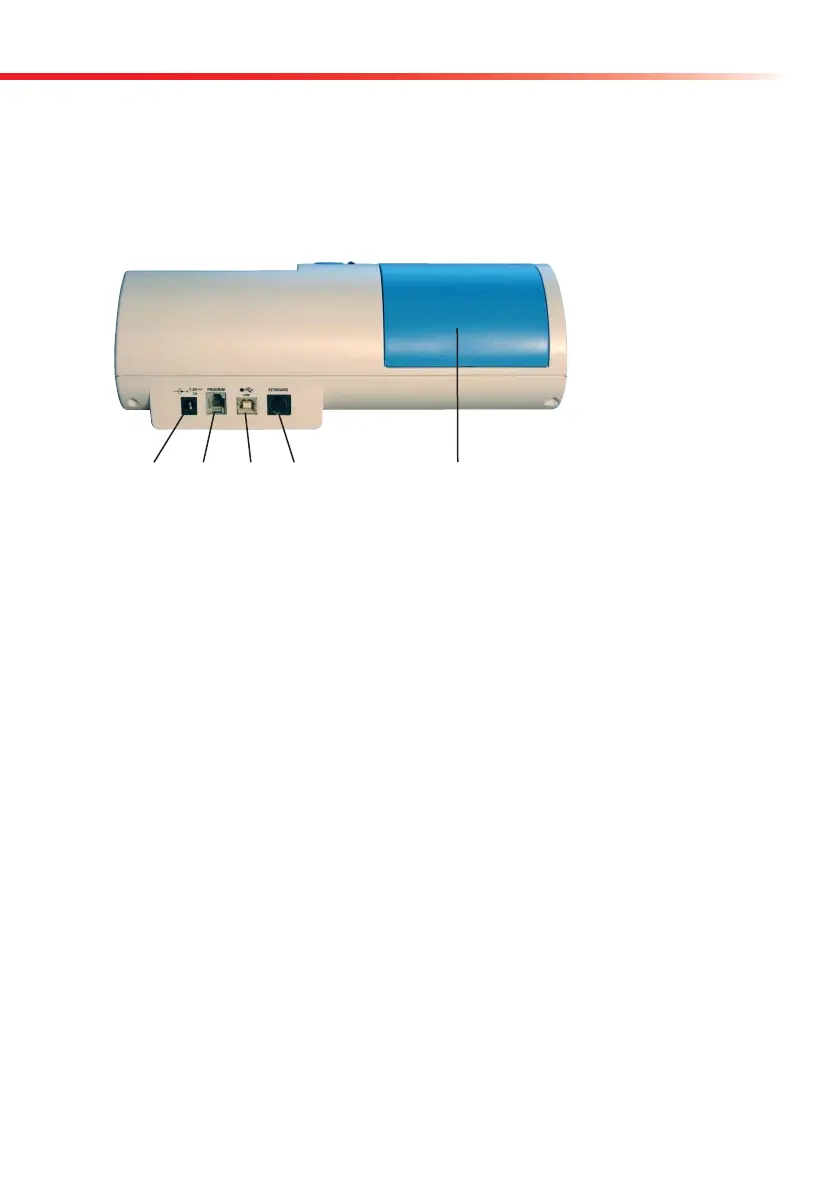

Fig. 2 Rear view of the CombiScan® 100 urine analyzer
11 12 13 14 15
11 – DC Power connector
12 – Serial interface
connector
13 – USB connector
14 – PS2 (keyboard)
connector
15 – Printer cover

Analyticon Combi Scan 100 Specifications

General

Brand	Analyticon
Model	Combi Scan 100
Category	Measuring Instruments
Language	English
