Installation

 Install all the three belts onto the

cylinders (see ﬁg. 5).

 Press the OK key. Now the convey-

or slips back and the door closes

automatically.

 Open the printer cover.

 Take the roll of printer paper and insert the roll into its cave. Load the free end of the

paper into the feeding slot in a way, that the outer side of the paper roll is facing down

while inserting it into the feeding slot (if the paper is inserted in the wrong way, there

will be no printout on the paper). The paper will be loaded automatically (see ﬁg. 6). To

remove the paper, just pull out from top side.

Now, the CombiScan

500 is ready to work.

Note: Before the ﬁrst measurement a calibration process should be done (see

section 4.5.2.2.)!

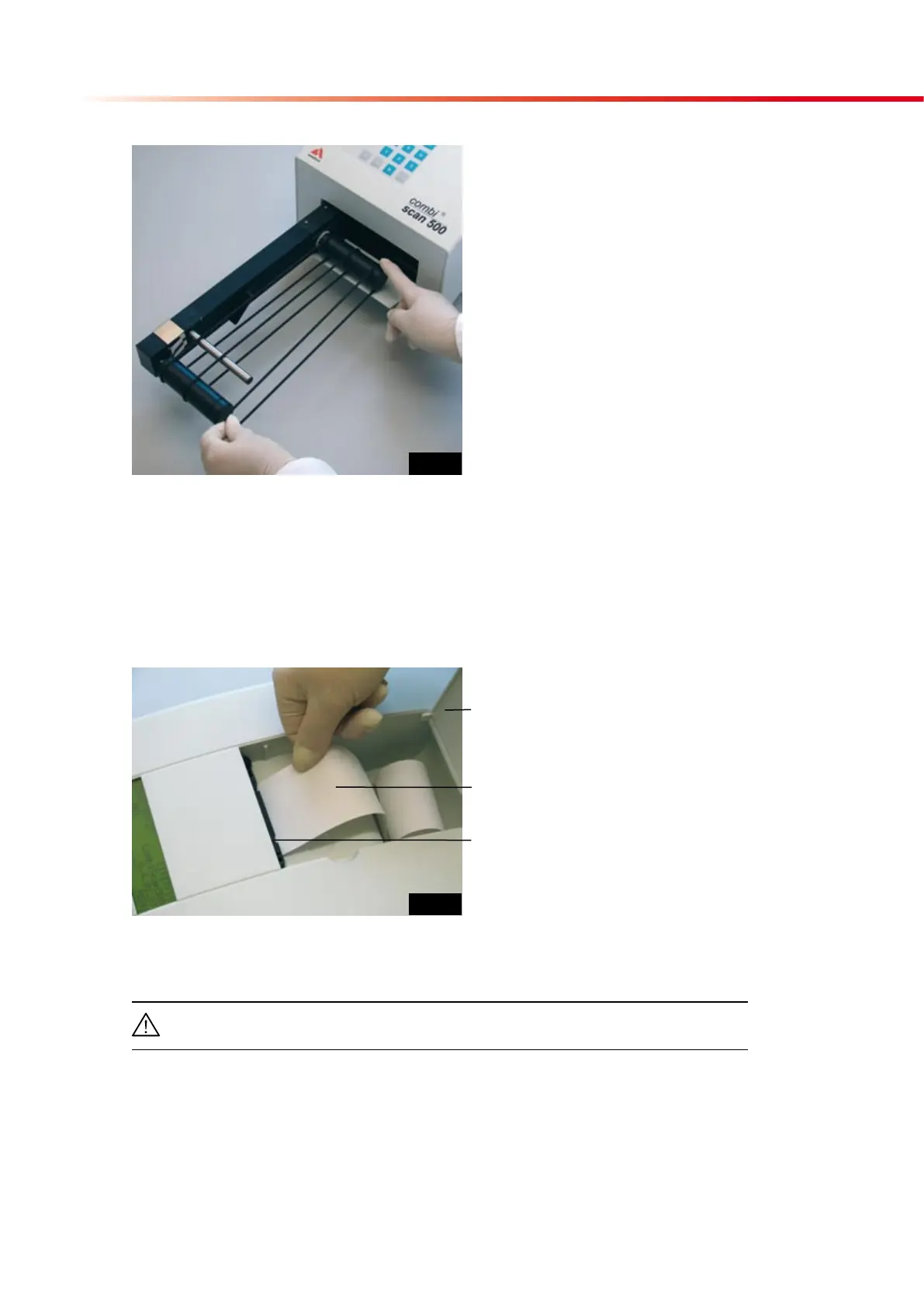

Fig. 5 Installation of the belts

Fig. 5

Printer Cover

Printer Paper

Printer

Fig. 6 Loading the printer paper

Fig. 6
