Analytik Jena SPECORD 200 User Manual

Universal holder
2.3 Using the universal holder

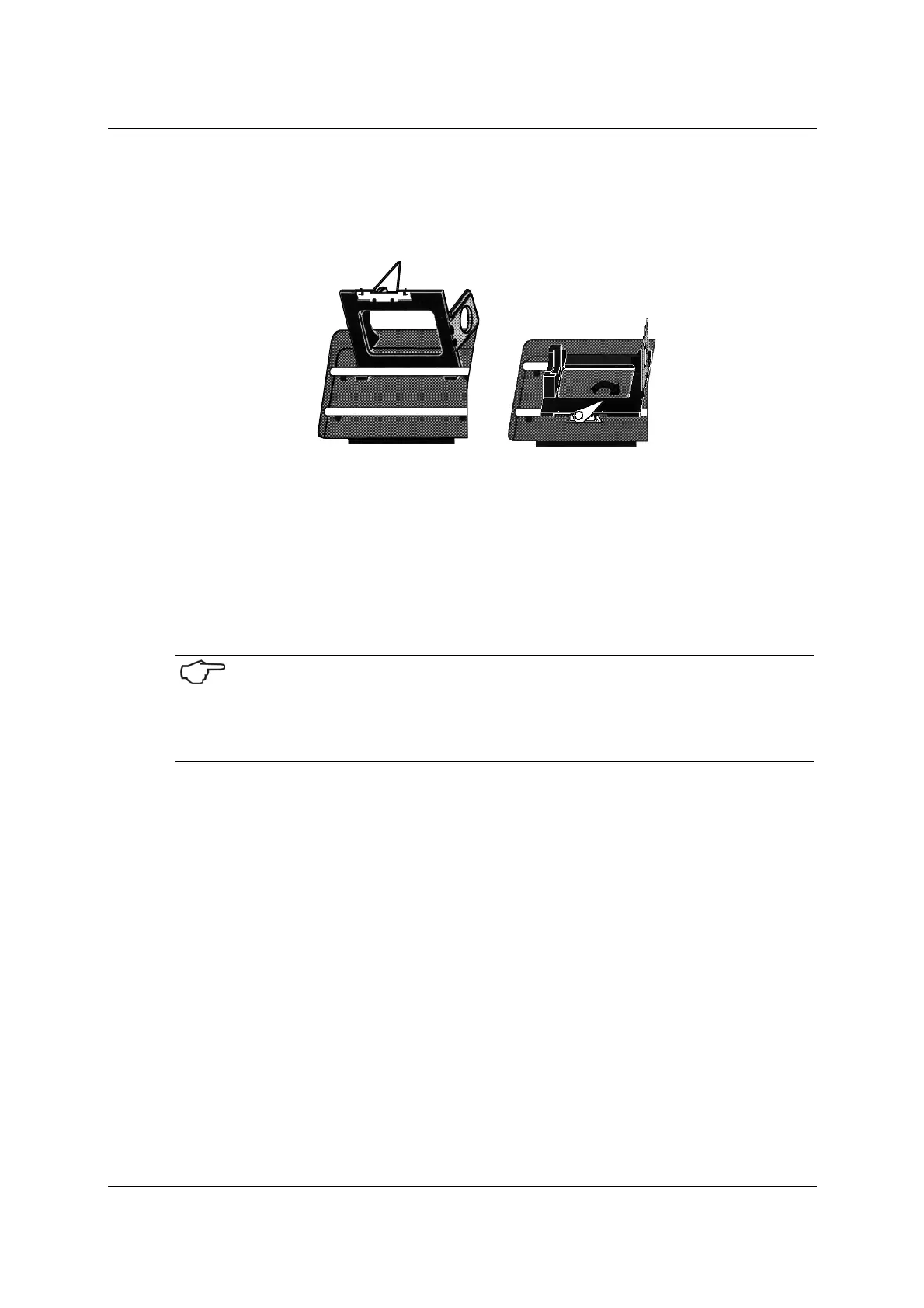

Fig. 2-2 Attaching and clamping the universal holder
1. Put the universal holder with its hook onto the rear of the carrying rails allocated to
sample or reference channel. Then, slide it to the right-hand wall of the sample
compartment as far as it will go.
2. Throw clamp lever (2) to the right to clamp the universal holder.
3. After you have attached and clamped the universal holder, slide the cell holder or
the solid sample holder onto its mounting plate.
Note
It is necessary to position the universal holder at the right-hand wall of the sample
compartment if the inserted sample shall be analyzed in the position where the beam
cross-section is minimal.
This position ensures optimum signal-to-noise ratio.
If you want to arrange the sample in a different position, you can slide the universal
holder to another place on the carrying rail and clamp it there.
You may also mount it inversely so that the plate (1) that accommodates the cell or solid
sample holder is on the left-hand side.
12 User’s Manual SPECORD 200/205/210/250 – Accessories 07/2005
Analytik Jena AG
