Holder for semi-microcells and microcells
Wavelength: 500nm
Integration time: 0.1s
Slit: 2nm
Correction: No
Cycle Mode: Manual: 20
Display: Energy
4. Align the cell holder at right angles to the beam path by taking repeated
measurements and turning knurled screw (6) each to shift the cell mount until you
obtain the maximum energy.
5. Turn screw (4) to adjust the cell holder vertically until you obtain maximum energy.
7.4 Adjustable holder for microcells, non-thermostatted (8.5 mm
beam height)
1 Fastening screw
2 Knurled screw for fastening the rider
3 Rider
4 Knurled screw for horizontal
adjustment
5 Leaf springs
6 Cell guide
7 Locating holes

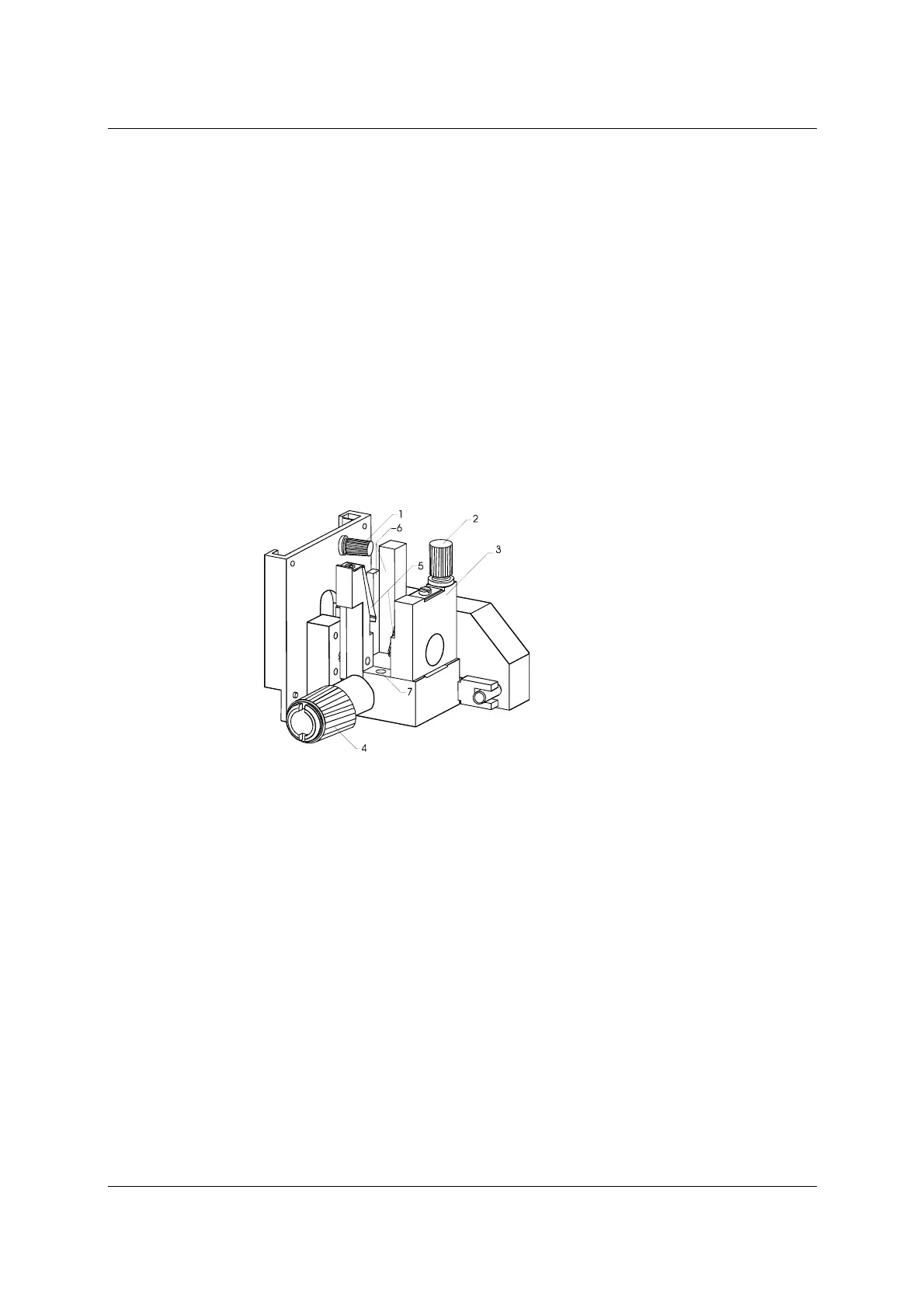

Fig. 7-3 Holder for microcells (adjustable)
Technical Data
Pathlengths of microcell 1, 2, 5, 10 mm
Height of beam center 8.5 mm
Width of cell 12.5 mm
Inserting the holder
1. Slightly unscrew knurled screw (1) on the holder to avoid jamming when you insert
the holder.
2. Slip this holder onto the mount for cells or the universal holder and push it down as
far as it will go. The universal holder must be moved as far as possible to the right-
hand wall of the sample compartment.
3. Tighten knurled screw (1) to fix the holder in the optical path of the SPECORD
®
.
4. Adjust the rider (3) using knurled screw (2) to suit the pathlength of the cell to be
used. For this, unscrew rider (3) completely by means of knurled screw (2) and
User’s Manual SPECORD 200/205/210/250 – Accessories 07/2005 23
Analytik Jena AG
