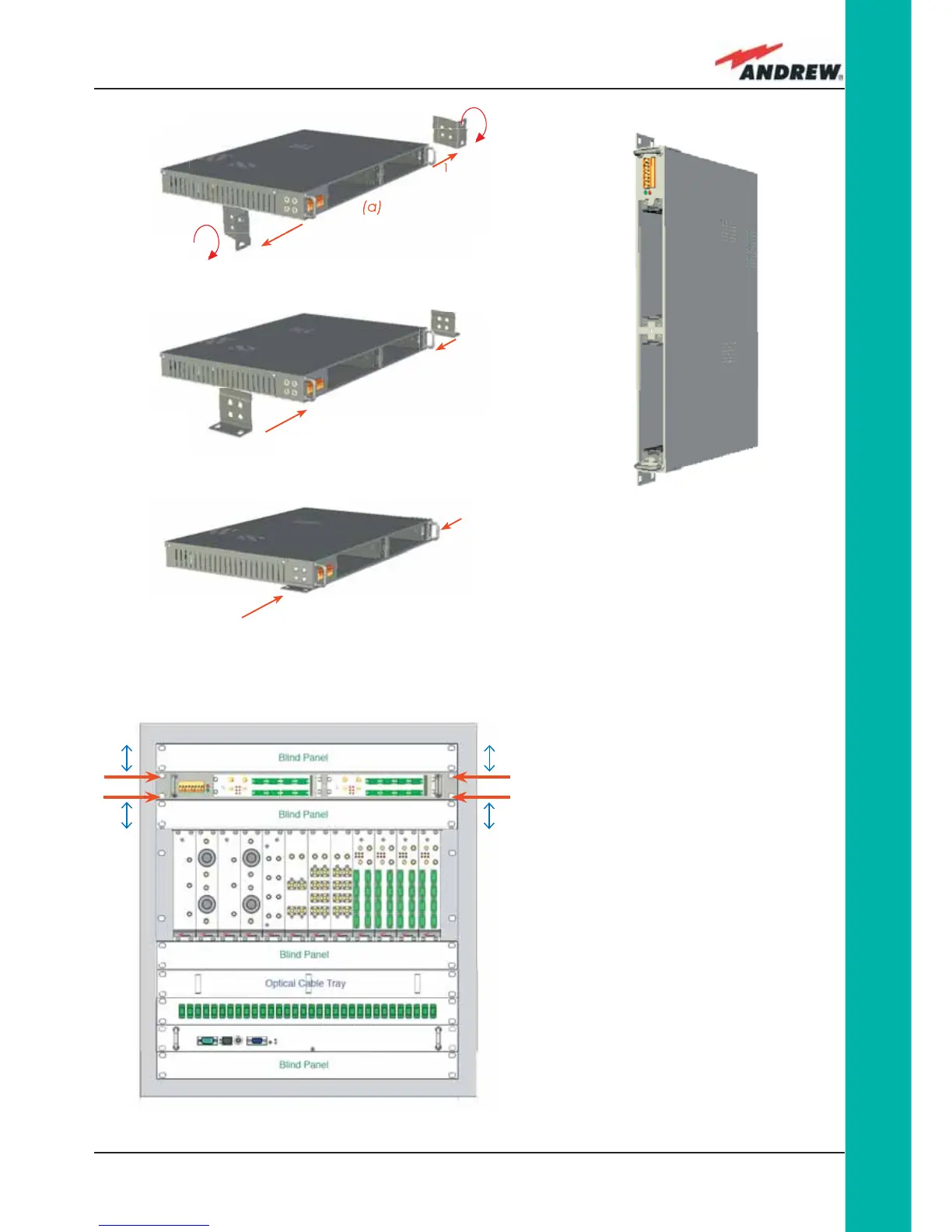

Figure 4.2.10:
Turning the brackets of the TPRF31 Fast
MiniRack, starting from the factory
confi guration (a). Once the brackets
have been turned and properly fi xed,
the TPRF31 Fast MiniRack is ready for
wall-mounting (d).
(b)
3
3
(c)
4
4
Figure 4.2.11:
Turning the brackets of the TPRF31 Fast
MiniRack, starting from the factory
confi guration (a). Once the brackets
have been turned and properly fi xed,
the TPRF31 Fast MiniRack is ready for
wall-mounting (d).
(a)
1
1
2
2
1HE1HE
1HE
1HE
