Andrew ION-B Series User Manual

65MN024-010
TFAM
Case R
3.5. Case R Remote Unit
Dimensions and Weight
Dimensions: mm. 564 x 255 x 167
(inches 21.5 x 10 x 8.1)
Weight: please refer to the Remote Unit dedicated bulletin in order to know the
updated data about the weight of your case-R Remote Unit.

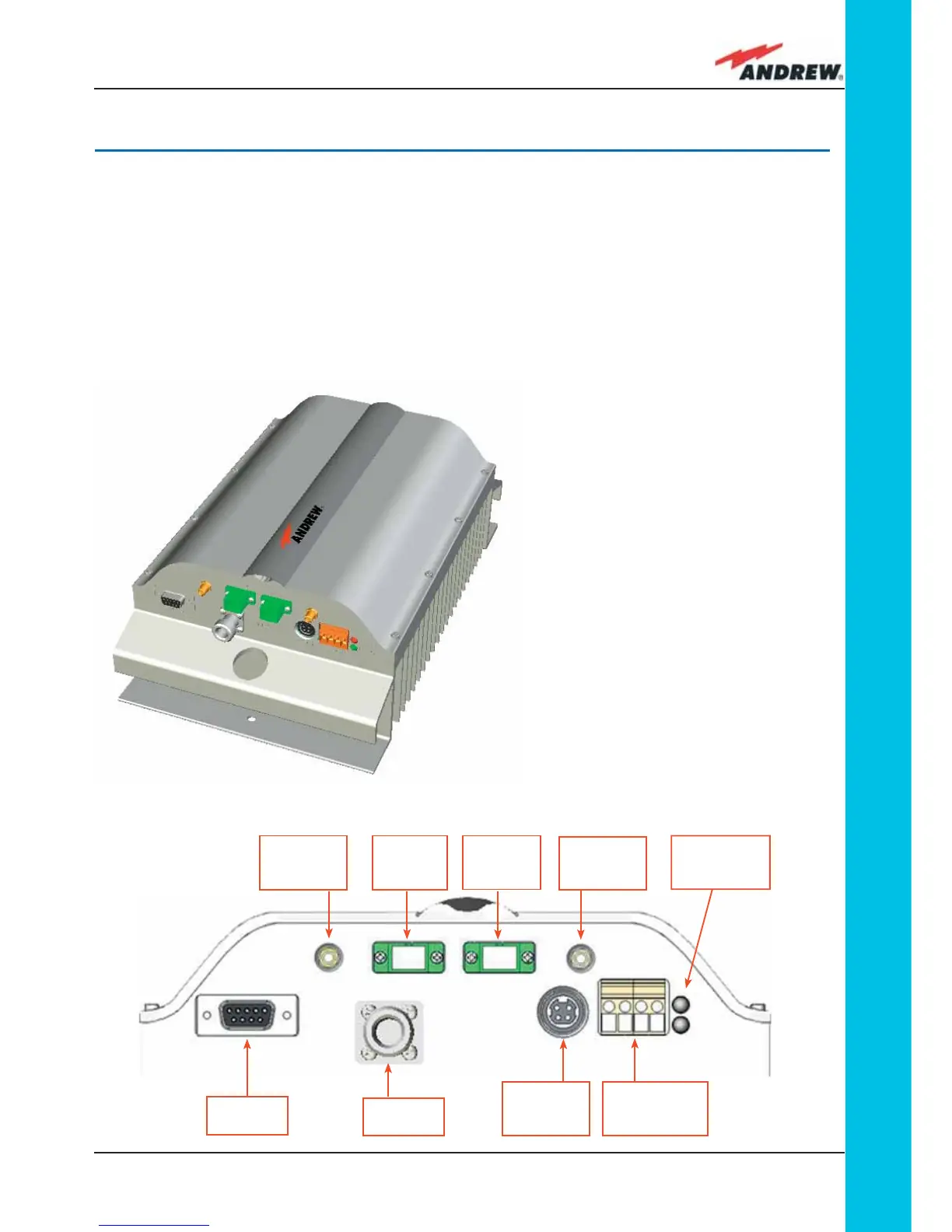

Figure 3.4.1: ION-B, Case-R
Remote Unit: (a) Remote Unit
view; (b) front view
(a)
(b)
Power
supply
connector
DL optical
port
UL optical
port
RF auxiliary
DL channel
output
RF antenna
port
RF auxiliary
UL channel
input
External
alarm
connection
LED alerts
Green =power ON;
Red = major alarm
RS-232
port
