Andrew ION-B Series User Manual

45MN024-010
TFAM
Case B
3.4. Case B Remote Unit
Dimensions and Weight:
Dimensions: 38 x 240 x 240 mm
(1.5 x 9.4 x 9.4 inches)
Weight : please refer to the Remote Unit dedicated bulletin in order to discover any
updated data regarding the weight of the Case B Remote Unit
(a)
(b)
Power
supply
connector
UL
optical
port
DL
optical
port
RF auxiliary
UL channel
input
RF
antenna
port
RF auxiliary
DL channel
output
RF
antenna
port
External
alarm
connection
LED alerts
Green =power ON;
Red = major alarm
Power
supply
connector
UL
optical
port
DL
optical
port
RF auxiliary
UL channel
input
RF
antenna
port
RF auxiliary
DL channel
input
RF
antenna
port
External
alarm
connection
LED alerts
Green =power ON;
Red = major alarm

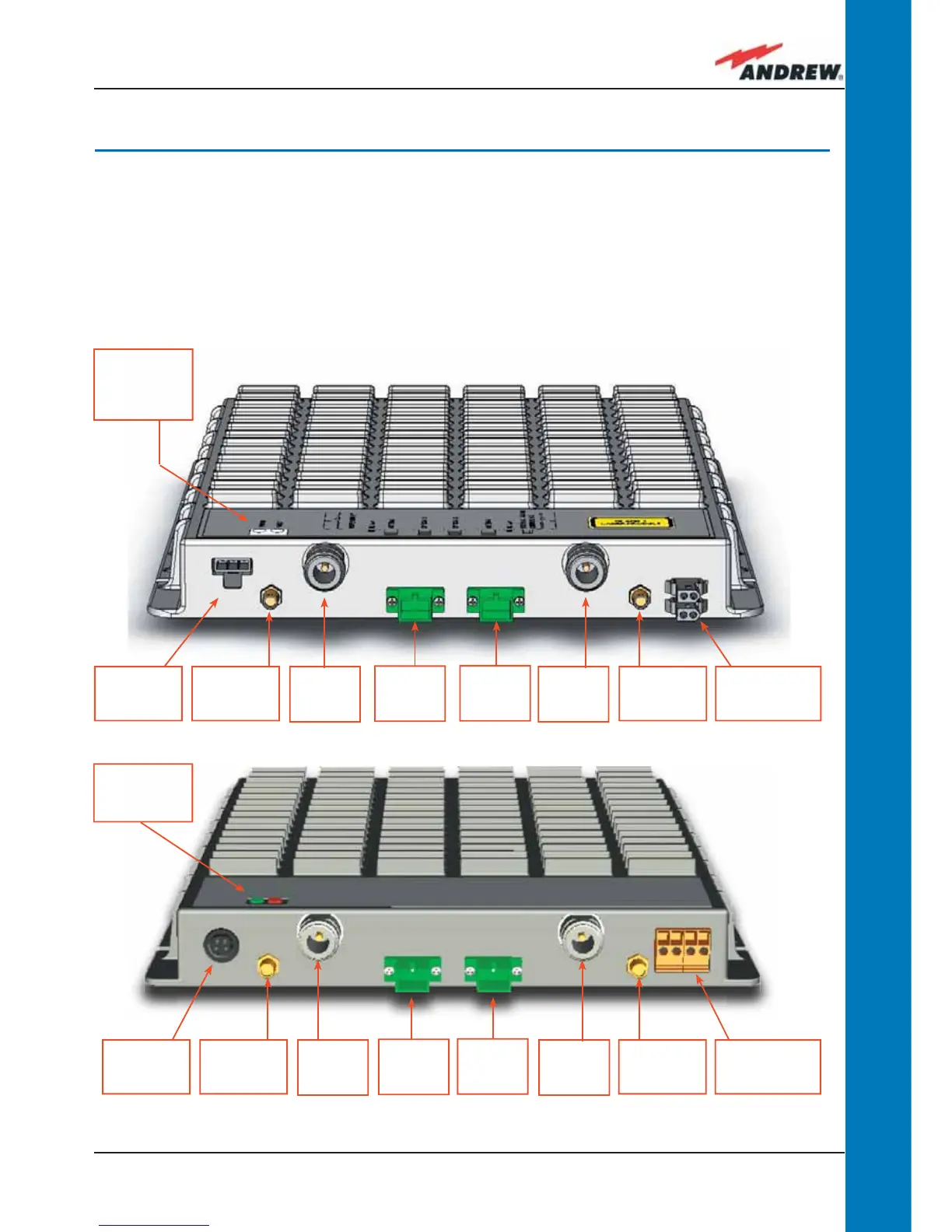

Fig. 3.3.1: TFAx Case B Remote Unit (a) and TFAx Case B Remote Unit, Power version (b)
