43MN024-010
TFAM
Case A
(e)
(f)

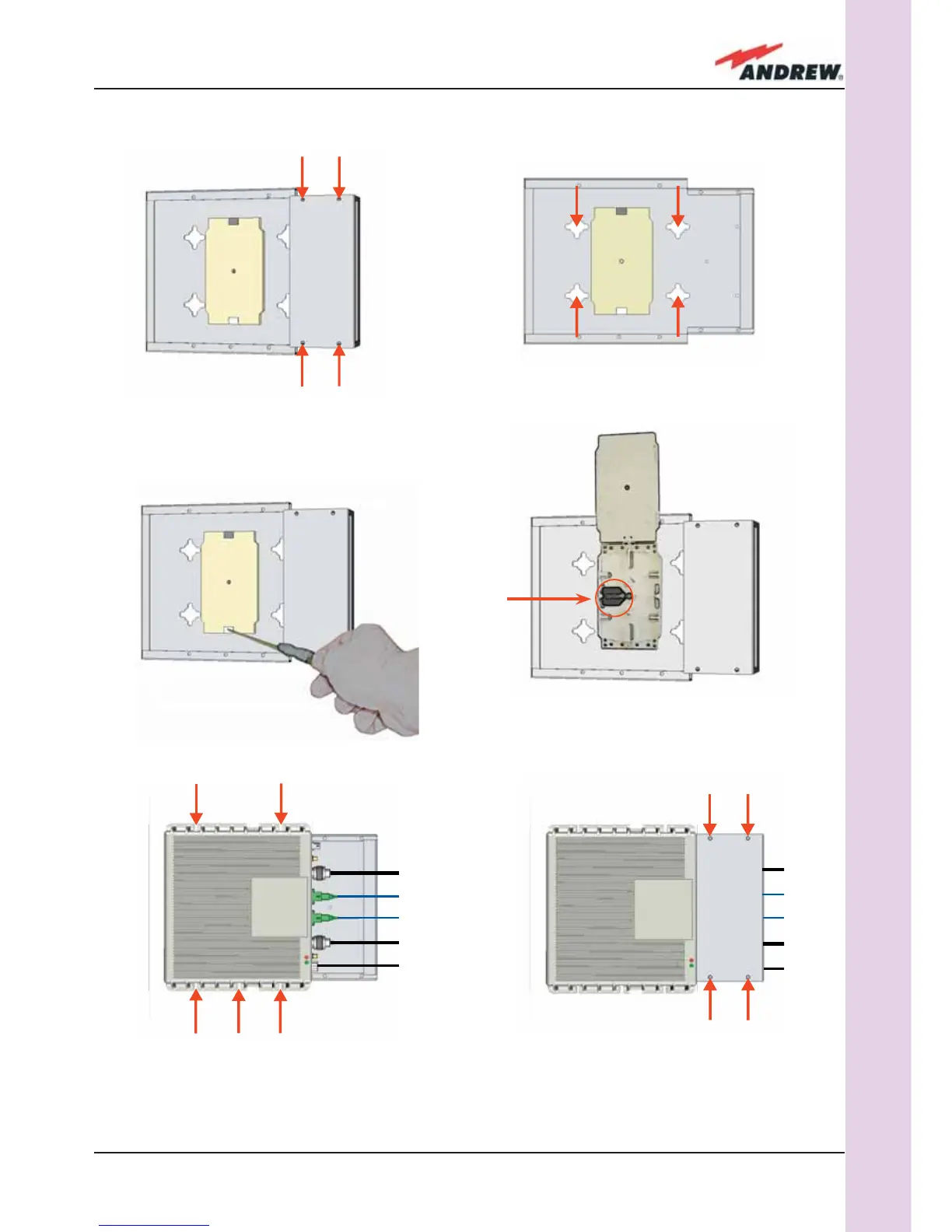

Figure 3.2.12: Mounting the TFAx Case A Remote Unit with a TKA installation kit.
Please not that the Figures do not show the mounting of the external power supply.adapter.
(a) (b)
(c)
(d)
