3.6. Case-R2 Remote Unit
Dimensions and Weight
Dimensions: mm. 564 x 255 x 167
(inches 21.5 x 10 x 8.1)
Weight: please refer to the Remote Unit dedicated bulletin in order to know the
updated data about the weight of your case-F Remote Unit.

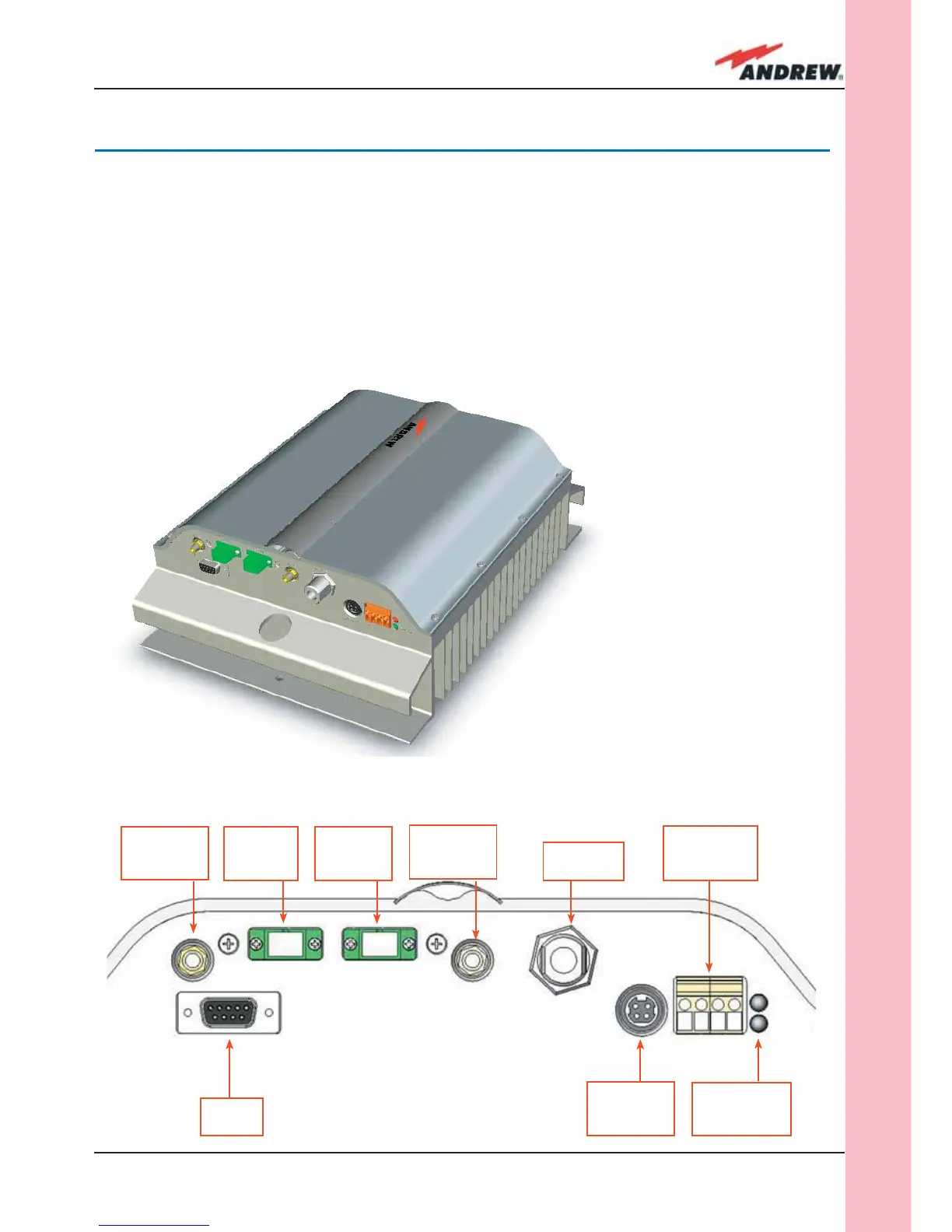

Figure 3.5.1: ION-B, Case-R2
Remote Unit: (a) fulll view; (b)
front view
(a)
(b)
Power
supply
connector
DL optical
port
UL optical
port
RF auxiliary
UL channel
input
RF auxiliary
DL channel
output
LED alerts
Green =power ON;
Red = major alarm
RF antenna
port
External
alarm
connection
RS-232
port
