Page 13 of 23

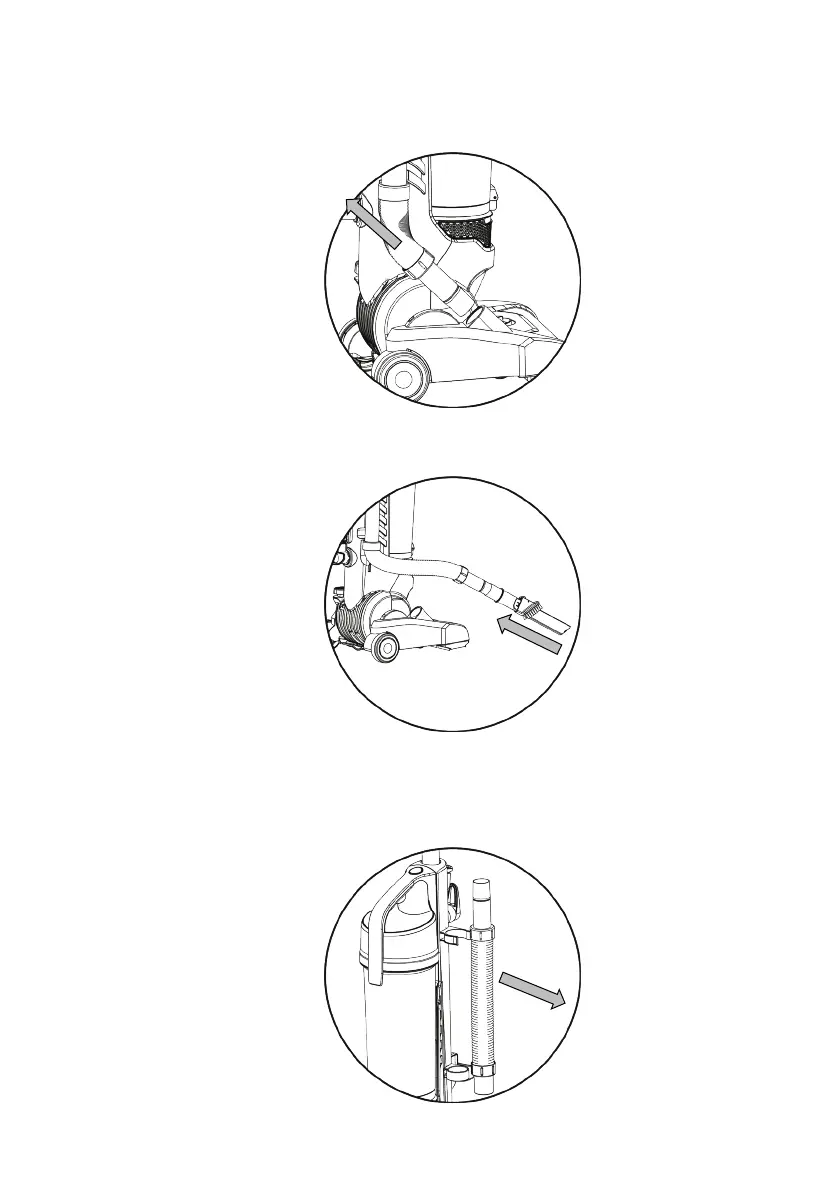

To use the hose with the crevice / brush tool, first pull out the
removable end from the Floor Head by pulling straight out as
shown.
Take the crevice / brush tool and slide it onto the end of the hose
connector.
You are now ready to use the crevice / brush tool.
To use the Extension Hose and Hose handle for the extra reach,
first unclip the Extension Hose from the Hose clamps.
