[6] Distance, Loss, dB/km
(2PA) The loss is obtained from the level difference between the
two markers.
(LSA) The loss is obtained by linear approximation of the trace
between the two markers, using least squares method.
[7] Test Parameters
Test parameters used for test are displayed. Test parameters for the
primary trace are displayed for a trace recalled from a file.
The Pulse width value is followed by the Dead-zone mode.
●
ER: Enhanced Range
●
HR: Standard

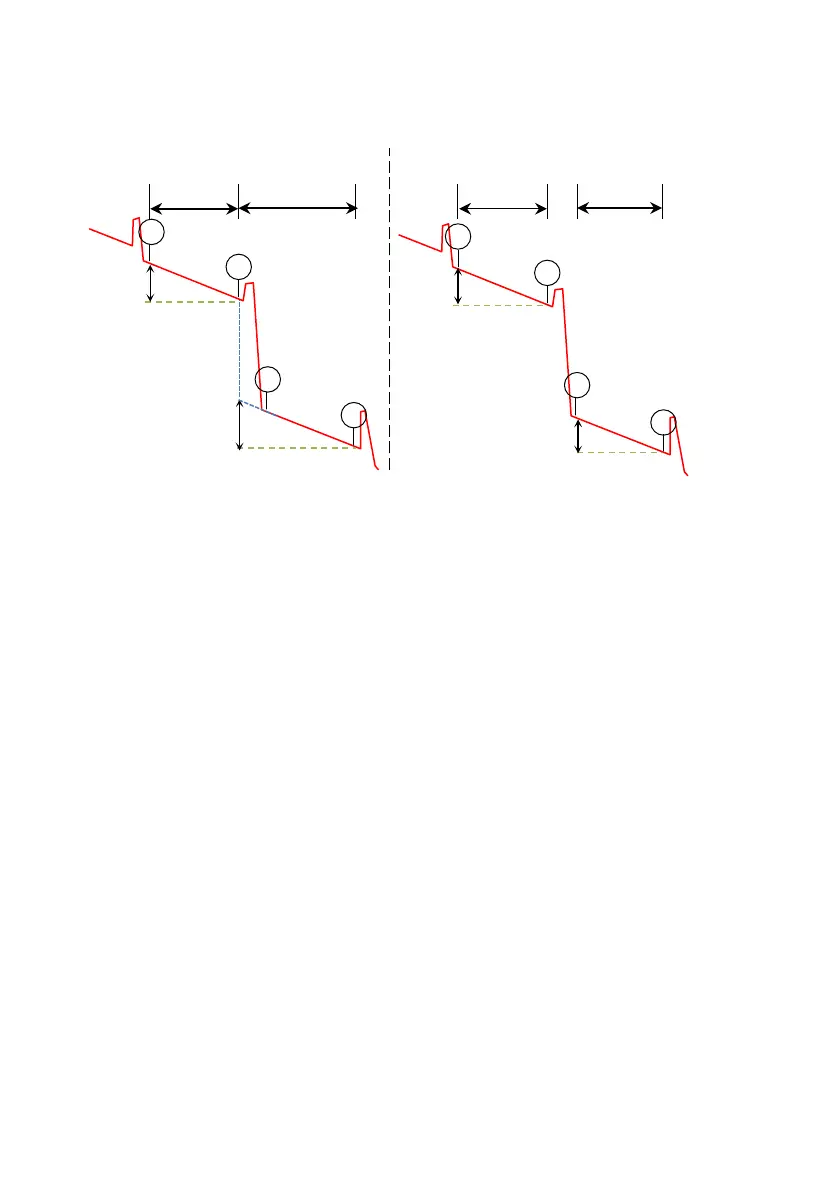

Placement (1-2, 3-4)
Placement (1-2, 2-4)
Distance
Distance
Distance
Distance
Loss
Loss
Loss
Loss
2
1
3
4
1
2
3
4
