Anritsu MT9085 Series - Fiber Visualizer; Fiber Visualizer Screen

27
Fiber Visualizer
Fiber Visualizer mode provides easy-to understand icons for
measurement results and allows you to perform pass/fail evaluation of
them easily.
Touch
Fiber Visualizer on Top Menu.
To exit Fiber Visualizer, press
Top Menu
.

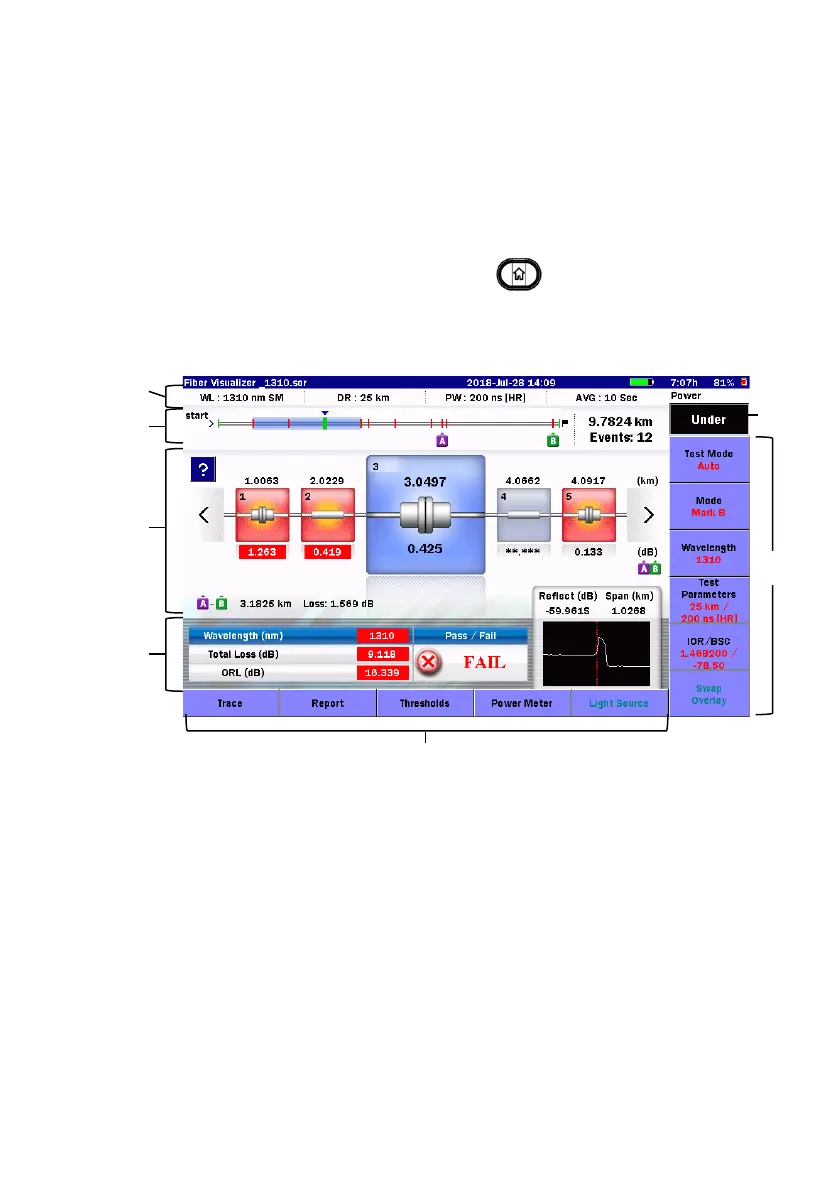

Fiber Visualizer Screen
[1] Test parameters
[5] Softkeys
[2] Fiber Schematic
[6] Extended Softkeys
[3] Trace events
[7] Power, Loss display
[4] Test results
[6]
[7]
[2]
[1]
[3]
[4]
[5]
