Report
Analysis results can be output in a report format and saved to a PDF file.
Touch

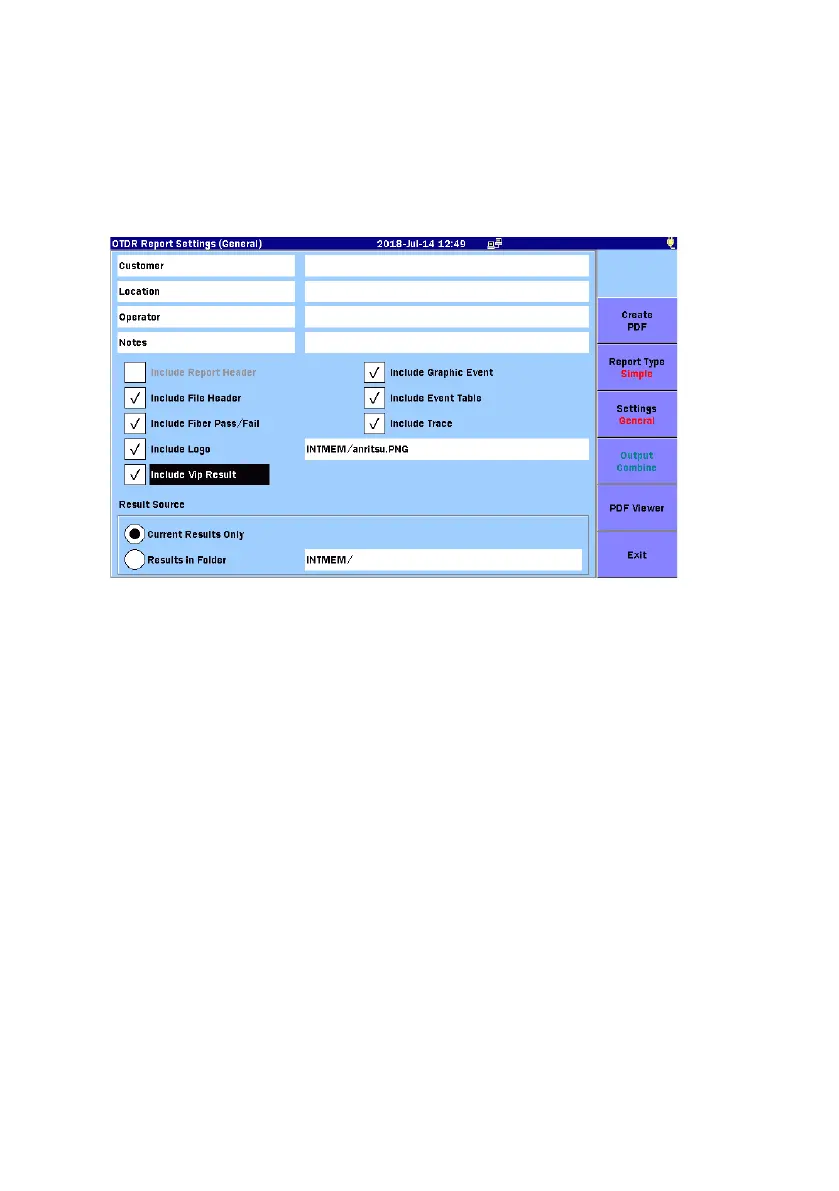

Report at the bottom of Visualizer screen, and you will see the
OTDR Report Settings screen.
Create PDF
Creates a report file.
Report Type
Sets the report type.
Full Creates a multi-page report, which can include up to six VIP
images.
Simple Reduces the size of the trace and creates a single-page report,
which can include up to two VIP images.
Settings
Switches the OTDR Report Settings screen mode.
Output
This is available when
Results in Folder is selected for Result Source.
Combine Outputs measurement results of multiple tests to a report.
Separate Outputs measurement results of a test to a report.
