Power Meter
When an optical power meter (Option 004, 005, or 007) is not installed to
the ACCESS Master,
Power Meter appears on Top Menu.
Power Meter is the function to measure an optical power using a
measurement port.
Touch
Power Meter on Top Menu.

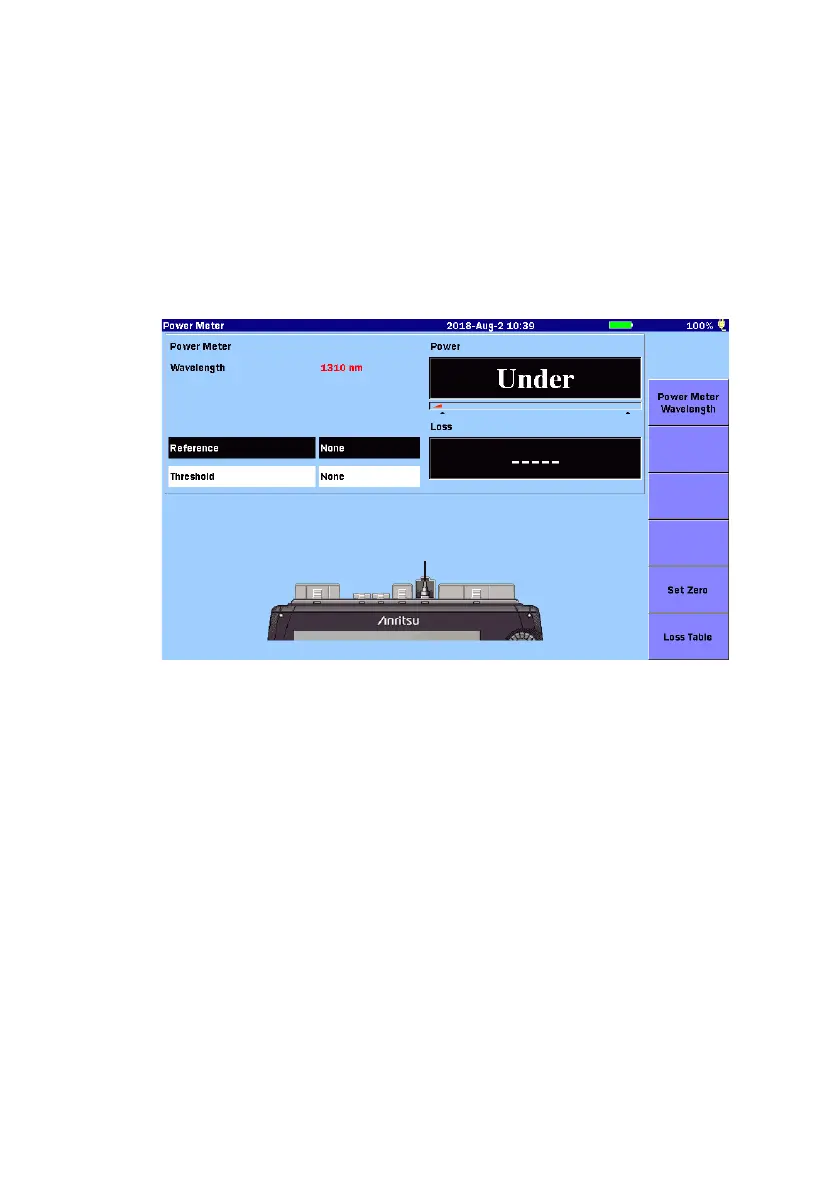

For details of the
Power Meter screen, refer to [3] to [9] on the Loss Test
Set screen (Page 38).
Modulated light cannot be measured by Power Meter.
