Anritsu MT9085 Series - Top Panel

3

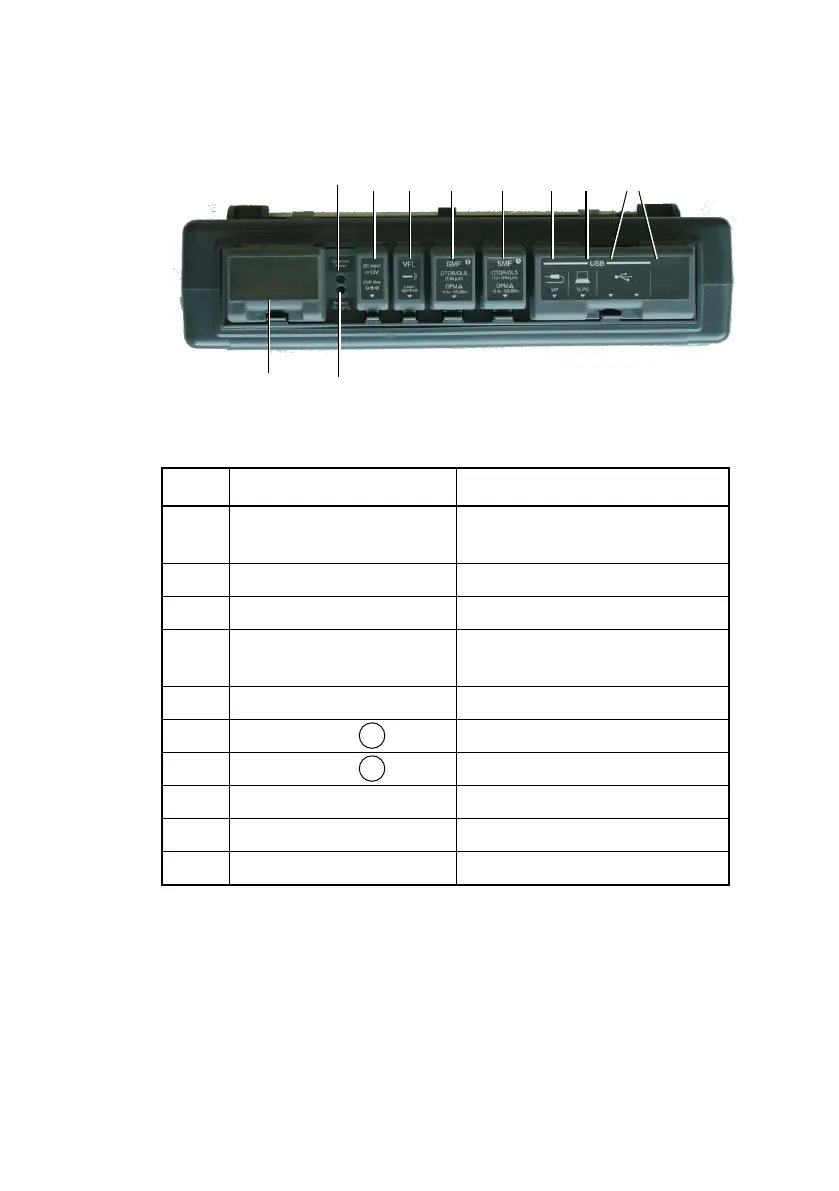

Top Panel
Table 1 Explanation of Top Panel
No. Label Explanation
[1]
Opt *
1
OPM
Optical Power Meter
(option)
[2]
Battery Charging
Battery Charging indicator
[3]
External Power
External Power indicator
[4]
DC Input
External power - DC Power
Connection
[5]
VFL
VFL port (option)
[6]
OTDR/OLS
Measurement port 2 *
2
[7]
OTDR/OLS
Measurement port 1
[8]
USB VIP
USB port (for VIP)
[9]
USB To PC
USB port (for PC)
[10]
USB
USB port (General)
*1: Option number is printed here.
*2: Option 055 and 063 only
[3]
[9]
[10]
[4]
[5]
[6]
[7]
[8]
[2]
[1]
2
1
