Anritsu MT9085 Series - Loss Test Set

38
Loss Test Set
When an optical power meter (Option 004, 005, or 007) is installed to the
ACCESS Master,
Loss Test Set is displayed on Top Menu.
Loss Test Set allows users to measure a loss of a fiber under test using a
light source and the power meter.

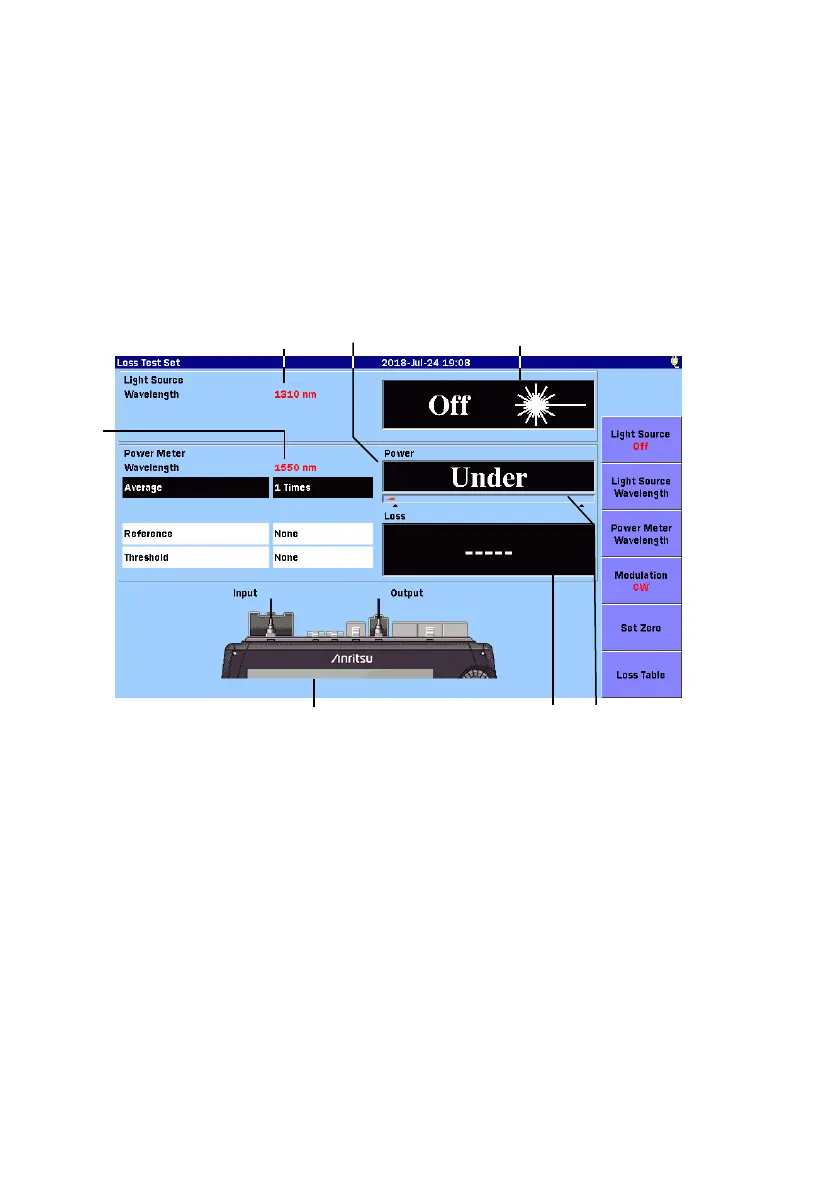

Touch
Loss Test Set on Top Menu.
[1] Light Source Wavelength indicator
Displays the wavelength set via
Light Source Wavelength.
[2] Light Source On/Off indicator
Displays the status of the light source.
[3] Power Meter Wavelength indicator
Displays the wavelength set via
Power Meter Wavelength.
[4] Absolute Power reading
Displays the measured power meter value.
“Under” is displayed if the power is less than the minimum level of
the measurement range.
[9]
[10]
[2]
[1]
[3]
[4]
[6]
[7]
[8]
[5]
