Event Table
In fiber analysis, an “event” is considered to be a distinct deviation from
normal fiber attenuation:
● a lossy connection (microbend, connector, or splice)
● a reflective connection (connector or fiber break)
● the end of fiber
Touch
Thresholds at the bottom of the screen, you can set thresholds for
the event detection and pass/fail judgement.

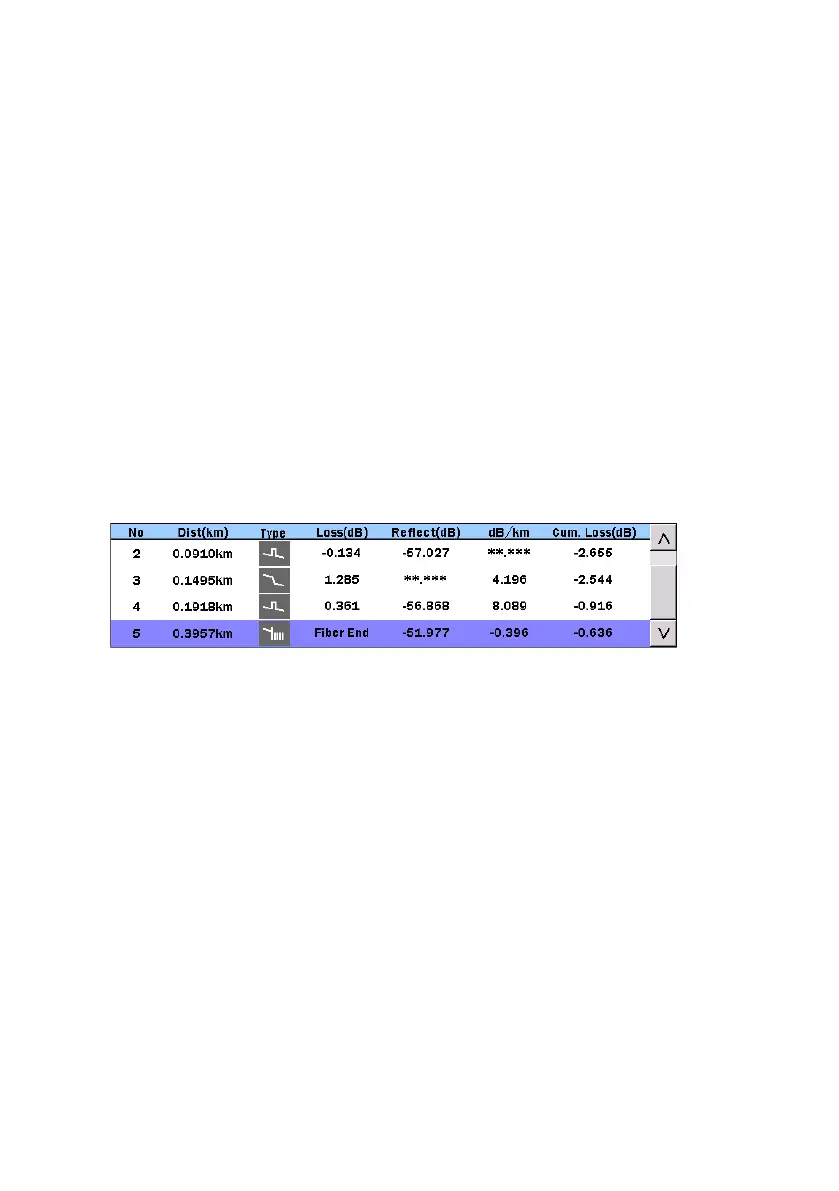

The event table displays the events that meet at least one of the Auto
Detect thresholds set in “AutoDetect”. As a result of comparison with the
Pass/Fail Thresholds, the values evaluated as FAIL are highlighted in
red.
If values are not obtained by analysis, “**.***” is displayed instead.
No
Event number for the faults in the graph area (1 to 64, counted from the
left)
Dist
Displays the distance from the ACCESS Master to the event.
Type
Displays the icons, which represent the types of events.
