Chapter 3 — Performance Verification 3-6 Directivity and Test Port Match Verification

MN469xC Series Multiport Test Set MM PN: 10410-00730 Rev. D 3-15

82. Also find the corresponding Ref + X or Ref  X value from the RF measurement chart.

83. Use the following formula to calculate the directivity:

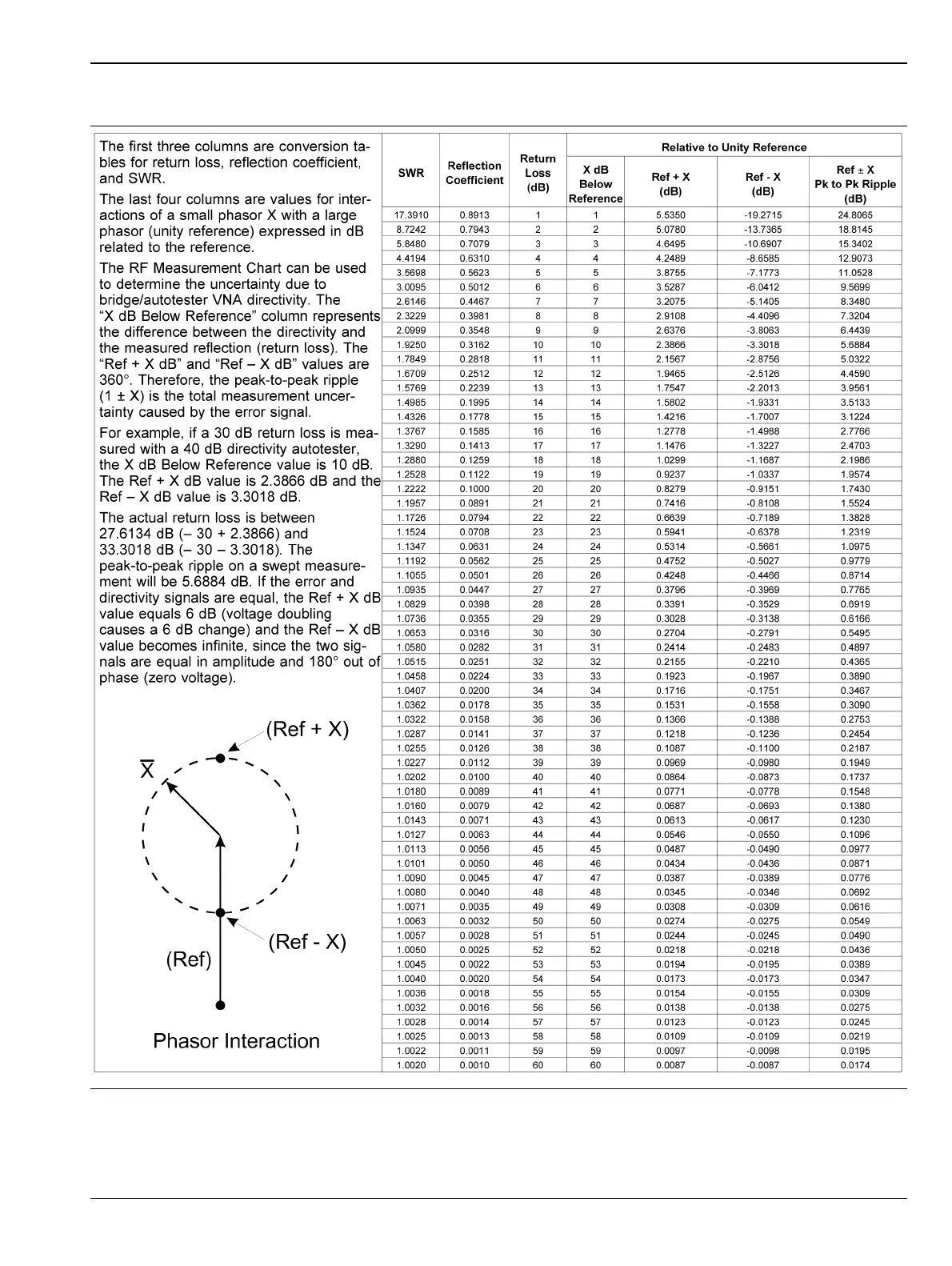

Figure 3-7. RF Measurement Chart
