Microlok II System Startup, Troubleshooting, and Maintenance UNION SWITCH & SIGNAL
SM-6800C Rev. 2.5 September 2000 6-7
4. The PC Configuration fields are used to set the port address and baud rate for the Microlok II
CPU board diagnostic port. The default settings are shown to the right of the individual
fields.

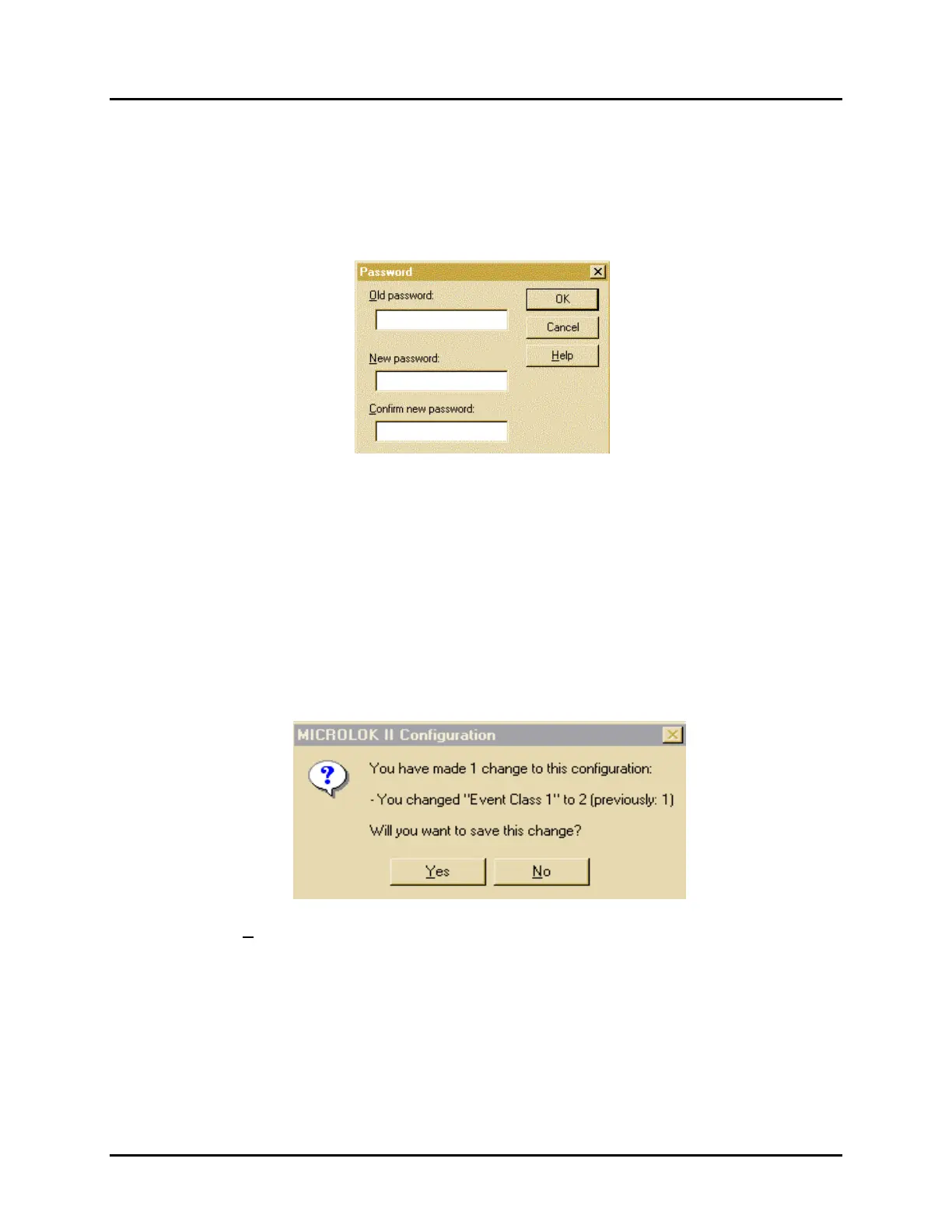

5. The Password field enables the user to change the system password. To do this, click on the
Set button. The following dialog box will appear.
a. Type in the old password in the top box.
b. Type in the new password in the center box.
c. Retype the new password in the bottom box.
d. Click on the
OK button to complete the password change.
6. When all of the general system configuration parameters have been set to the proper values
for the application, click on the Done button at the lower left corner of the screen. A dialog
box similar to the one shown below will be displayed:
7. Click on the Yes button to save the configuration changes and complete the configuration of
the general system parameters. The system configuration selection display will again be
displayed on the screen.
