Installation 8 (36)

3.3 Mechanical Installation

Anybus Wireless Bolt is intended to be mounted on top of a machine or cabinet through an M50

(50.5 mm) hole using the included sealing ring and nut.

Tightening torque: 5 Nm ±10 %

Make sure that the sealing ring is correctly placed in the circular groove in the top

part of the housing before tightening the nut.

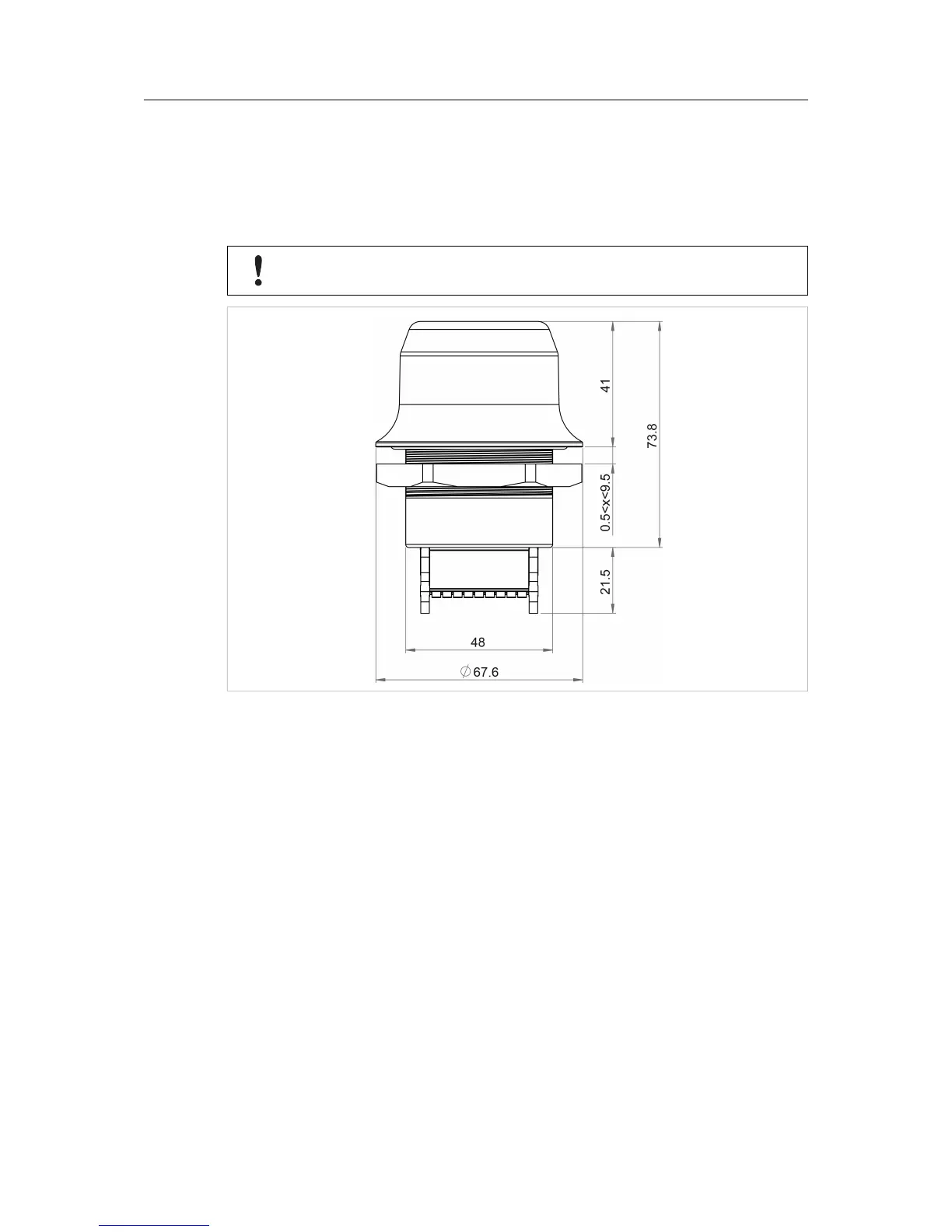

Fig. 1 Installation drawing

All measurements are in mm.

Anybus

Wireless Bolt

™

User Manual SCM-1202-007-EN 2.5
