C Technical Data
C.1 Technical Specifications
Order code AWB2000 AWB2010 AWB2020
Wired Interface type Ethernet Serial RS-232/485 + Ethernet CAN + Ethernet
Wireless antenna Internal
Maximum range 100 m (WLAN and Bluetooth)
Communication See Anybus Wireless Bolt Datasheet
Dimensions Height: 70 mm (95 mm incl. connector, 41 mm outside)
Diameter: 70 mm
Weight 81 g
Operating temperature -40 to +65 °C
Storage temperature -40 to +85 °C
Humidity EN 600068-2-78: Damp heat, +40 °C, 93 % humidity for 4 days
Housing Plastic
Protection class IP67 / TYPE 4X for top part (outside of host)
IP21 for bottom part (inside of host)
Mounting M50 screw and nut (50.5 mm hole required)
Connector Included plug connector
Power supply 9–30 VDC (-5 % +20 %)
Cranking 12 V (ISO 7637-2:2011 pulse 4)
Reverse polarity protection
Power consumption 0.7 W (idle) – 1.7 W (max)
Certifications See www.anybus.com/support and the compliance information appended to the User Manual.
C.2 Internal Antenna Characteristics

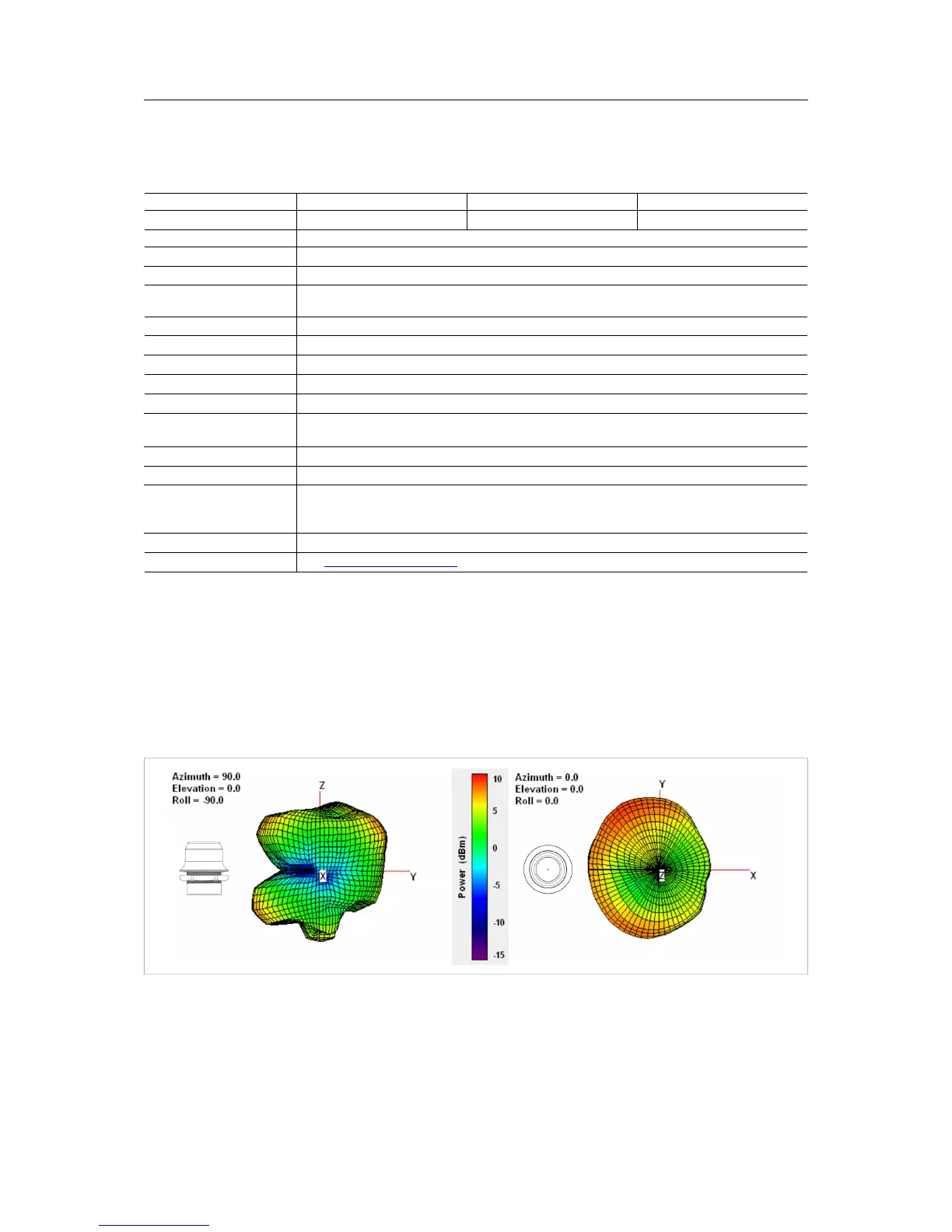

The following radiation diagrams show the characteristics of the internal 2.4 GHz antenna as
measured under laboratory test conditions. The diagrams should be regarded as a general
guide for finding the optimal placement and orientation of the units.
2.4 GHz Antenna Characteristics
