Anybus Wireless Bolt User Manual

Appendix A: Configuration Examples 31 (36)
A.5 Adding wireless connectivity to a single Ethernet node

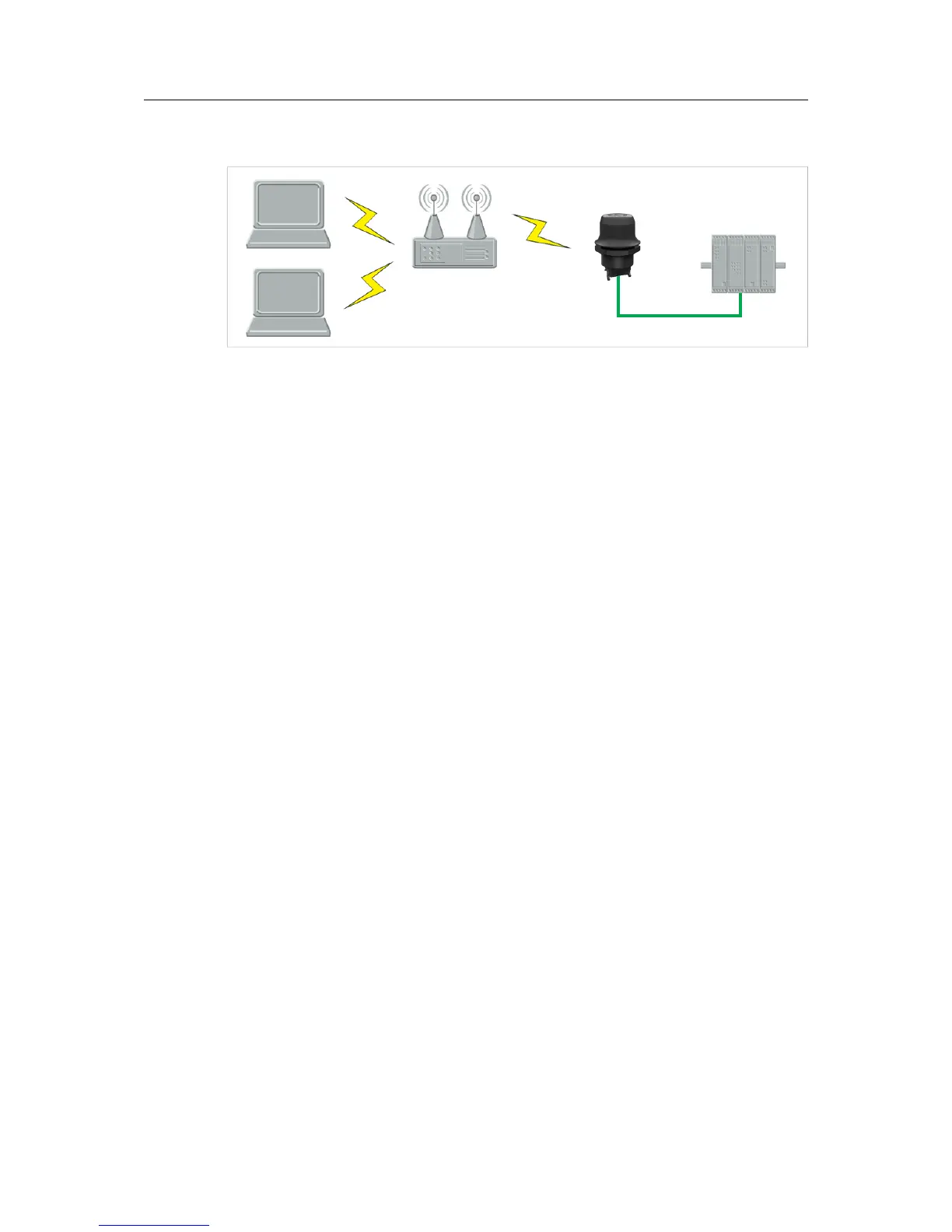

Fig. 24 Adding WLAN connectivity
This example shows how to connect a PLC to an existing WLAN with support for layer 2 and
layer 3 traffic. The WLAN interface in the Wireless Bolt will clone the MAC address of the
Ethernet interface in the PLC.
Only a single Ethernet node can communicate via a third-party WLAN access point in this setup.
Configuration
1. Reset the Wireless Bolt to the factory default settings.
2. In Network Settings, configure the IP settings as required by the wireless network.
3. In WLAN Settings, click on Scan for Networks.
4. When the scan has completed, select the wireless network from the dropdown list.
5. If required, select the authentication mode and enter the passkey for the wireless network.
6. Click on Save and Reboot.
7. Check the System Overview page to confirm that the WLAN connection is established
before continuing.
DO NOT SKIP THIS STEP! After the final steps of the configuration procedure the web
interface may no longer be accessible from the network without doing a factory reset.
8. In WLAN Settings, set Bridge Mode to Layer 2 cloned MAC only.
9. Enter the MAC address of the PLC in the Cloned MAC Address field.
10. Click on Save and Reboot.
The Wireless Bolt will now function as a WLAN interface for the PLC using the MAC address of
its Ethernet interface.
Anybus
®
Wireless Bolt
™
User Manual SCM-1202-007-EN 2.5
