Anybus Wireless Bolt User Manual

Appendix A: Configuration Examples 28 (36)
A.2 PROFINET networking via Bluetooth (Easy Config)

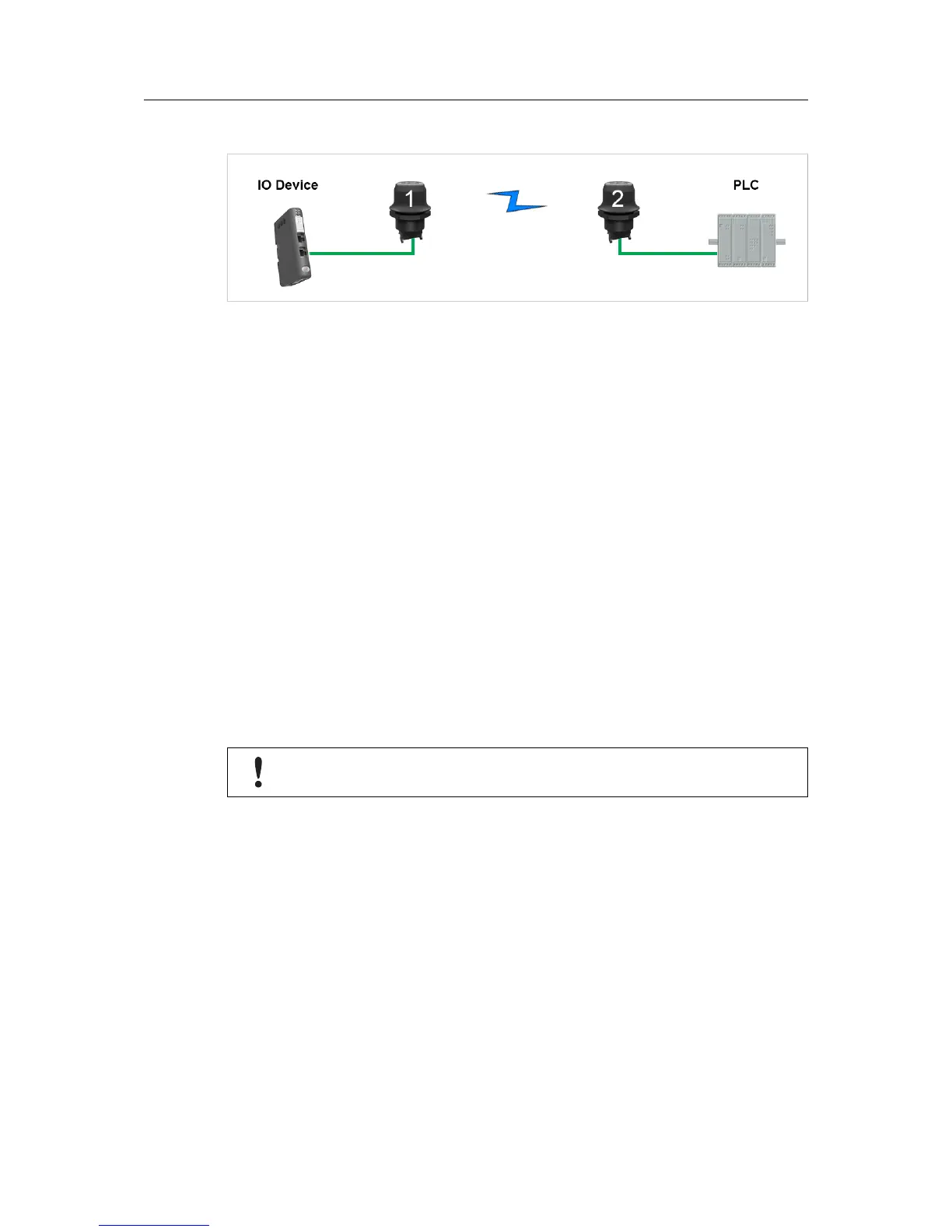

Fig. 21 PROFINET wireless network
This example describes how to connect a PROFINET IO device and a PROFINET PLC via
Bluetooth using two Wireless Bolts and Easy Config.
Configuration
Please refer to the documentation for the IO device and the PLC regarding how to configure
PROFINET communication.
1. Reset both Wireless Bolts to the factory default settings.
2. Connect Wireless Bolt 1 to the IO device and Wireless Bolt 2 to the PLC.
3. Set Wireless Bolt 1 to Easy Config Mode 4.
This unit will now be discoverable and open for automatic configuration.
4. Set Wireless Bolt 2 to Easy Config Mode 6
This unit should now automatically discover and configure unit 1 as a Bluetooth client, and
configure itself as an access point.
The IO device should now be able to communicate with the PLC as if using a wired connection.
Adding More Devices
Up to 6 additional clients can be added to the access point by repeating the procedure. Each
new client will be assigned the next free IP address within the current subnet.
The IO cycle update time for each IO device must be set to ≥ 64 ms.
Anybus
®
Wireless Bolt
™
User Manual SCM-1202-007-EN 2.5
