AOpen XC Cube - Introduction to Jumper Settings and Other Connectors

JP28 Keyboard/Mouse Wakeup Jumpers
You can use JP28 to enable or disable this function, which could resume your system from suspend
mode with keyboard or mouse. The factory default setting is “Disable” (1-2), and you may enable this
function by setting the jumper to 2-3.
Introduction To Jumper Settings and Other Connectors

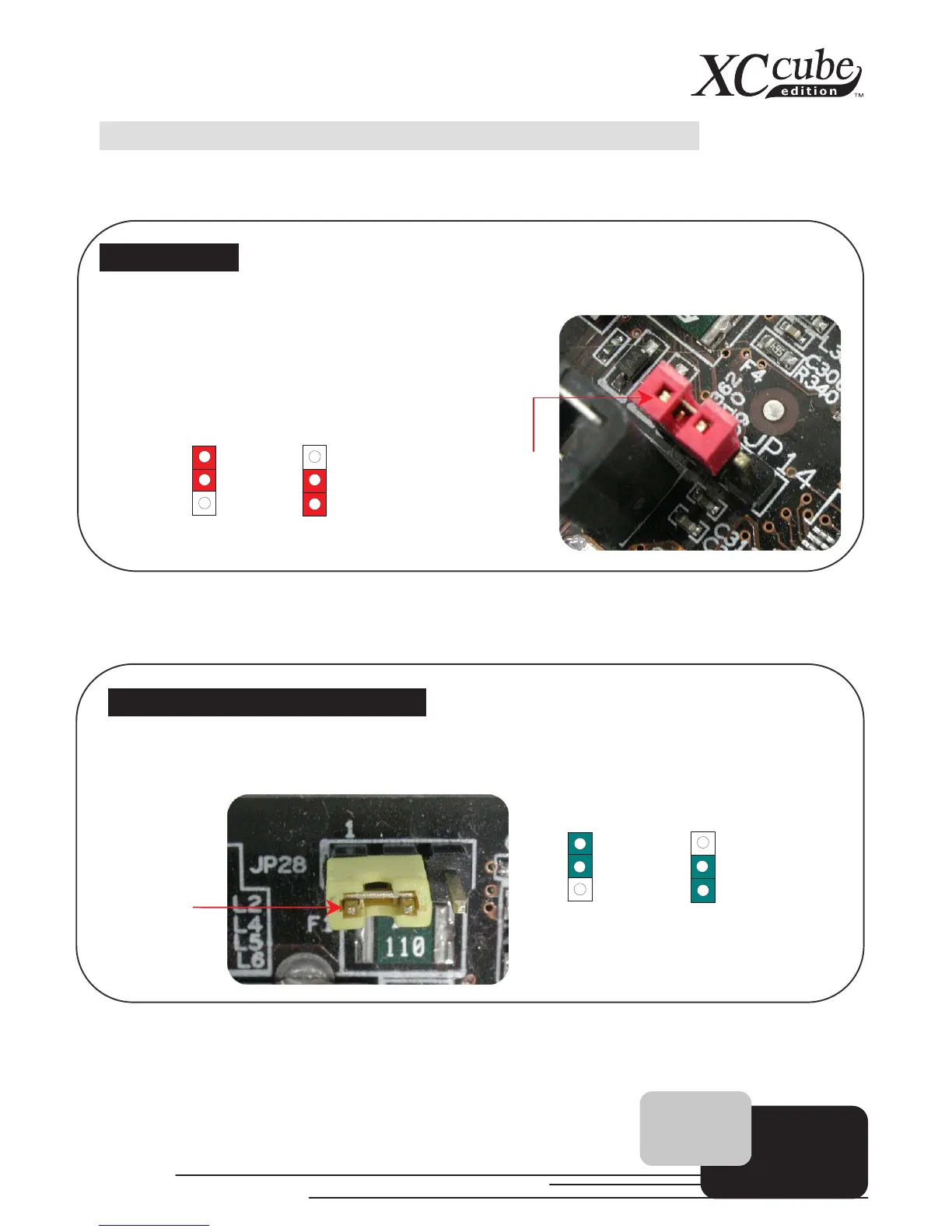

JP14 Clear CMOS
You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pin 1 & pin 2.
5. Connect ATX power cable back to connector PWR2.
Normal
(
default
)
Clear CMOS
1
1
Pin 1
Pin 1
Enable
Disable
(Default)
