2.2 Accessory

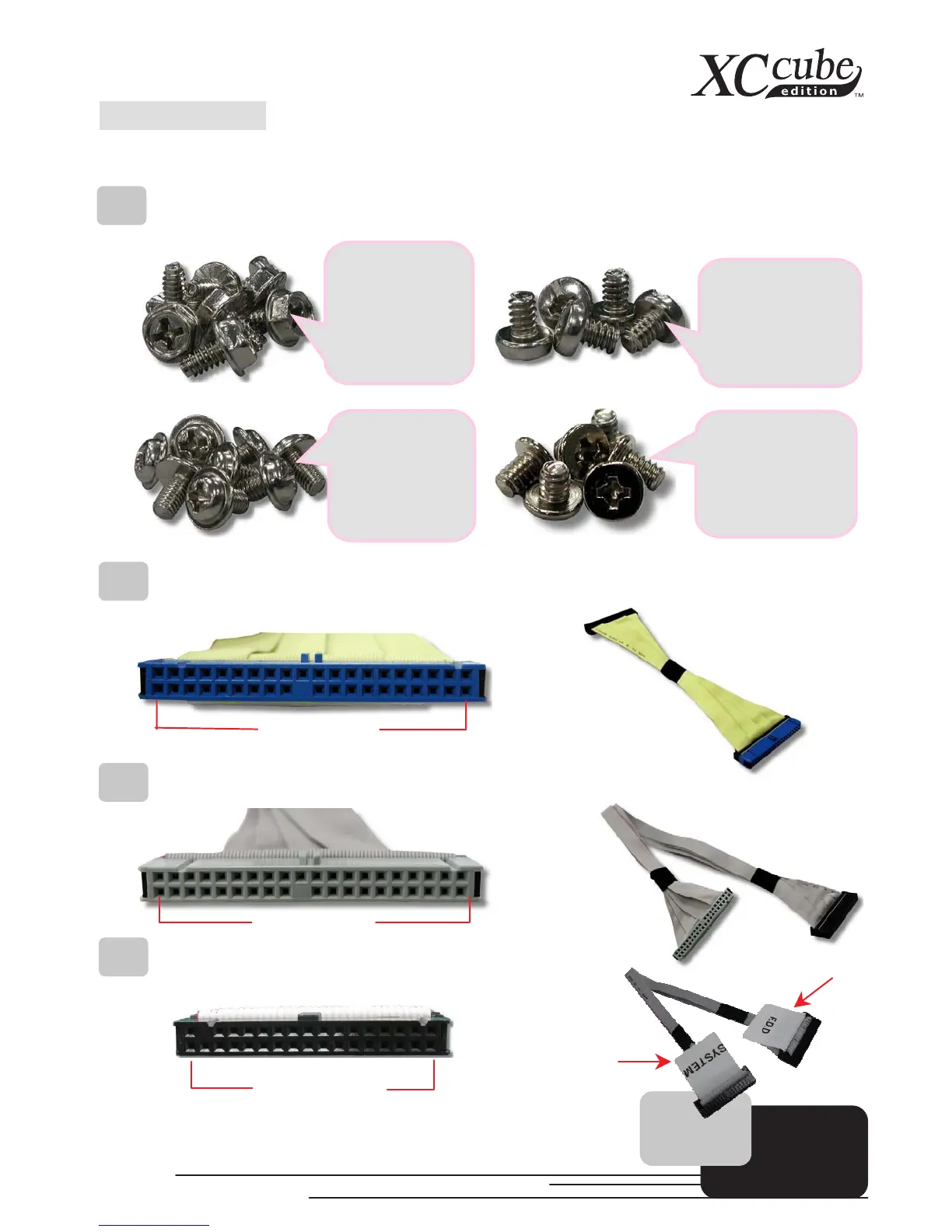

Beside main components, you are supposed to see the following accessories:
Fixed screws: After opening the accessory parcel, you'll see the following four different type of
screws:
IDE Cable: a 40 -pin connector to connect the hard disk with IDE interface.
IDE Cable: a 40 -pin connector to connect the optical device IDE interface.
Disk Drive Cable: a 34-pin connector to connect disk drive.
As shown in the
picture, the
threads on NO.1
screw are wide
and it has a
hexagonal head
As shown in the
picture, threads
on NO.2 screw
are narrow and
there is a rin
g
on its head.
40-pin hard disk
Connector
40-pin optical
Connector
As shown in the
picture, the NO.3
screw’s threads
are wide as well
but it has a round
head.
As shown in the
picture, the NO.4
screw’s threads
are wide as well
but it has a flat
head.
34-Pin Connector
FDD header
Motherboard
header
