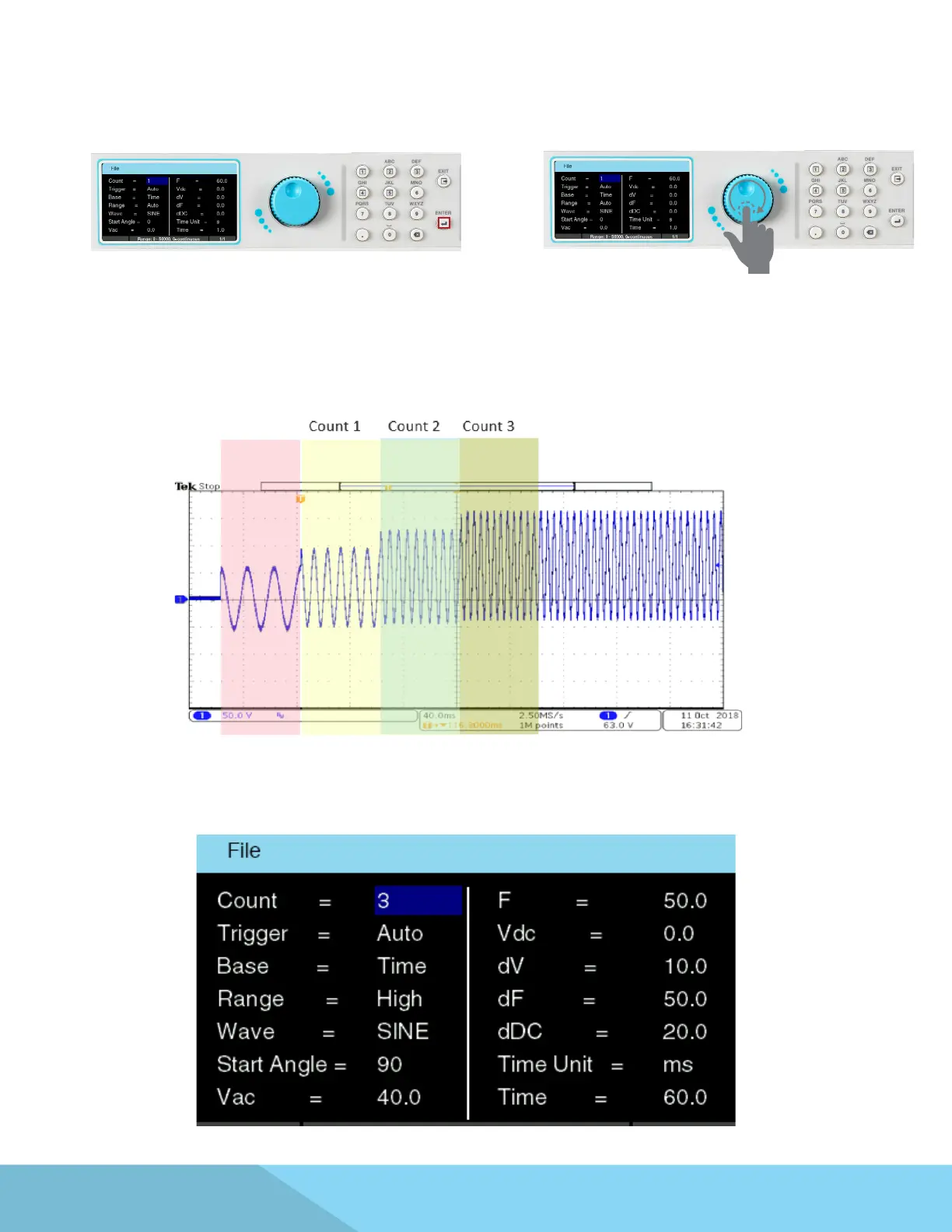

7. After entering the le name press the ENTER

key on the keypad to save the le name and

display the test parameters for editing:

8. The test parameters can be edited in the

exact same manner as the system parameters,

using a combination of the rotary knob and

keypad.

4.4.6 Step Mode – Test Parameters

The Step Mode allows you to create and generate step-up outputs based on your dened voltage,

frequency, and interval settings. A typical waveform for Step Mode will look like the following:

The above waveform was generated using the following parameters of the Step Mode:
