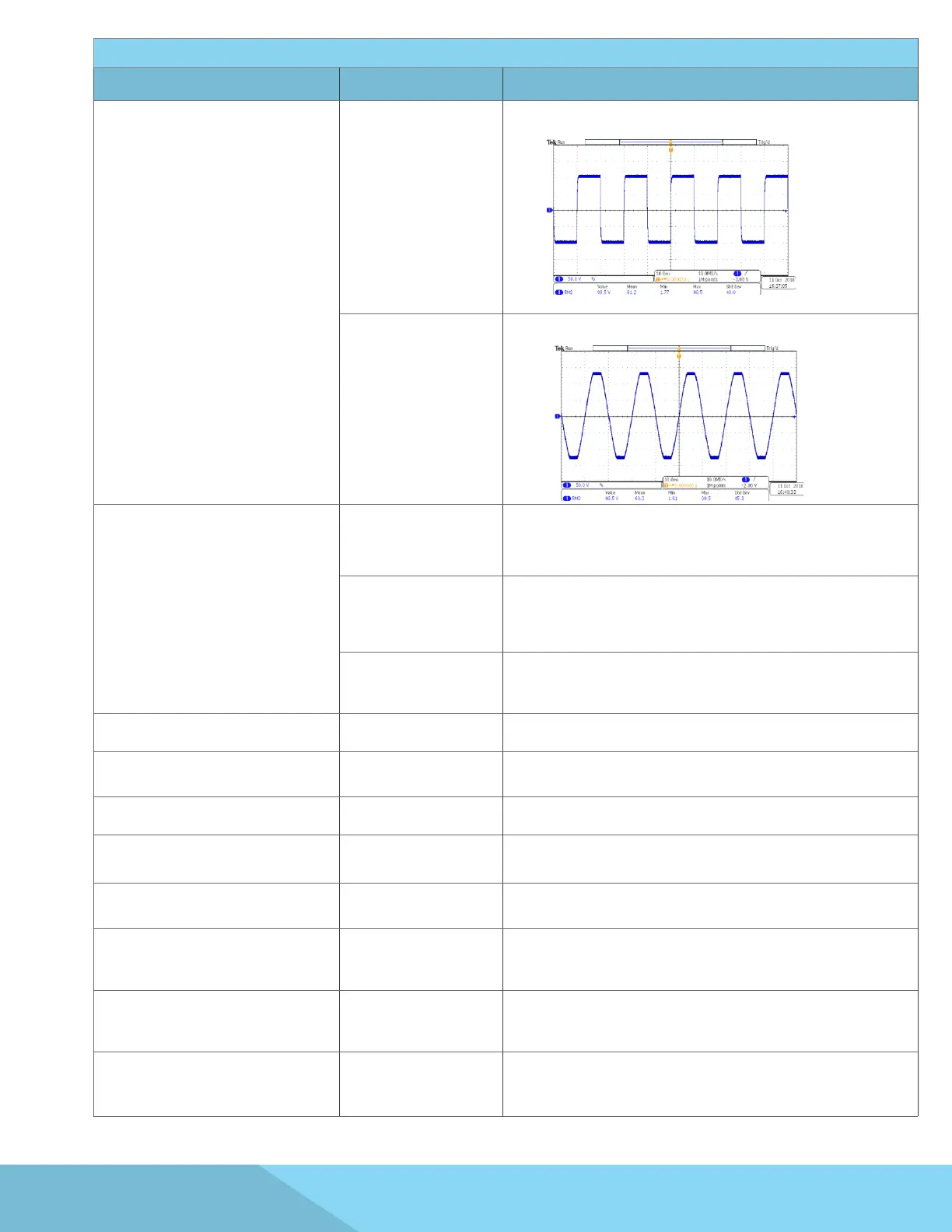

Manual Mode - Test Parameters
Parameter Setting/Range Description
WAVE
SQUARE
(0 - 219V, 0 - 310 V)
Sets the power source for a square output waveform:
CSIN
(0 - 155V, 0 - 310V)
Sets the power source for a clipped-sine waveform:
Range
Auto
Sets the power source in an Auto Range mode. The power
source will automatically interpret the voltage range and switch
to high or low voltage output range.
High
Sets the power source in the High Range mode for voltage
output. The current will be limited to half of its full range. See
section 3.1 Specifications.
Low
Sets the power source in the Low Range mode for voltage
output. Full current will be available in this mode. See section 3.1
Specifications.
Vac 0 - 310V AC voltage output
Vdc 0 – 420V
DC voltage output (only available in DC or AC+DC couple
modes).
F 5 – 1200Hz Output frequency for AC or AC+DC couple modes.
Ramp up 0.1 - 999.9s
Provides flexibility to increase the voltage output over a duration
of time prior to achieving the programmed output voltage.
Start Angle 0 - 359°
Provides flexibility to select the starting angle of the sine wave
when the output voltage is generated.
A-Hi
Depends on the
model. See section 3.1
Specifications
Provides flexibility to program a maximum current threshold or
ceiling level. When this level is reached a failure will occur.
P-Hi
Depends on the
model. See section 3.1
Specifications
Provides flexibility to program a maximum wattage threshold or
ceiling level. When this level is reached a failure will occur.
A-Hi Delay 0.0 – 999.9s
Provides flexibility to program a time delay to allow the A-Hi limit
to be exceeded (for an amount of time) without resulting in the test
to fail.
