36

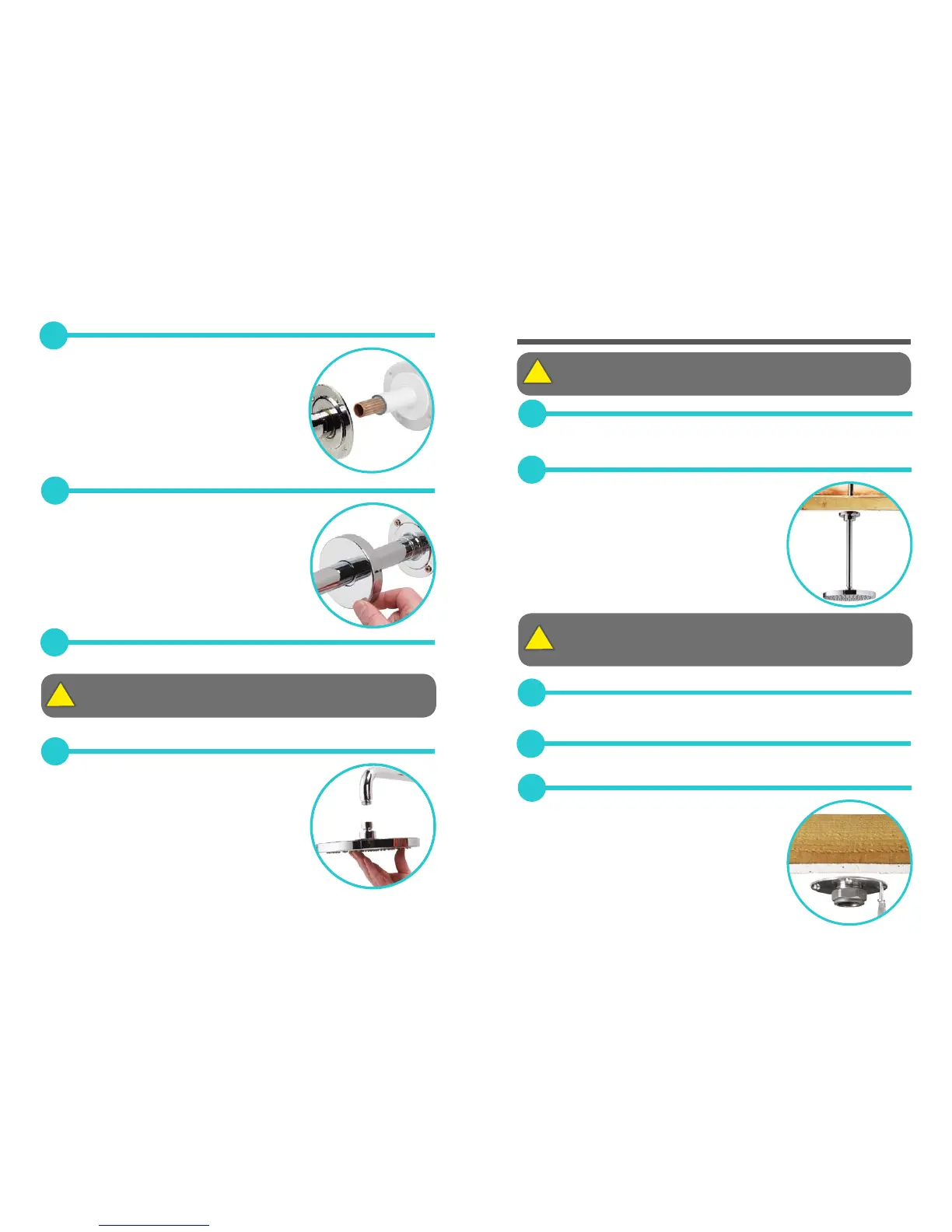

Refit the shower arm and secure it to the wall using
the screws provided (if suitable).
38
Run the shower for a few seconds to clear any debris that may be present.
37
Fit the fixing cover plate.
39
Ensuring the rubber washer is in the correct
position, attach the showerhead to the fixed arm
and carefully secure using a suitable spanner, or
a tool with smooth jaws, suciently to lock the
head into position.
CEILING MOUNTED FIXED HEAD
18 19
The ceiling mounted fixed head is supplied with screws for fixing the product
to a noggin. A NOGGIN MUST BE USED AS PART OF THIS INSTALLATION.
40
Run a 15mm outlet pipe from the outlet B of the diverter box to the preferred
position for the fixed head.
41
Locate the position for the fixed head in the
bathroom and firstly drill a pilot hole to mark the
position before checking that there is suitable
space behind the ceiling for the fixing assembly.
42
Drill a hole (minimum ø28mm, maximum ø40mm) through the ceiling and the
noggin.
43
Remove the fixing bracket carefully from the fixed head arm.
44
Set the fixing bracket into position and mark the
fixing points. Remove the bracket and drill and
prepare suitable fixings. Refit the fixing bracket
and secure it through the ceiling and into the
noggin using the screws provided (if suitable).
The minimum height required behind the ceiling is 50mm and the space must
allow for an 80mm wide,
50mm deep noggin to be used to support the assembly.
