16 17
28

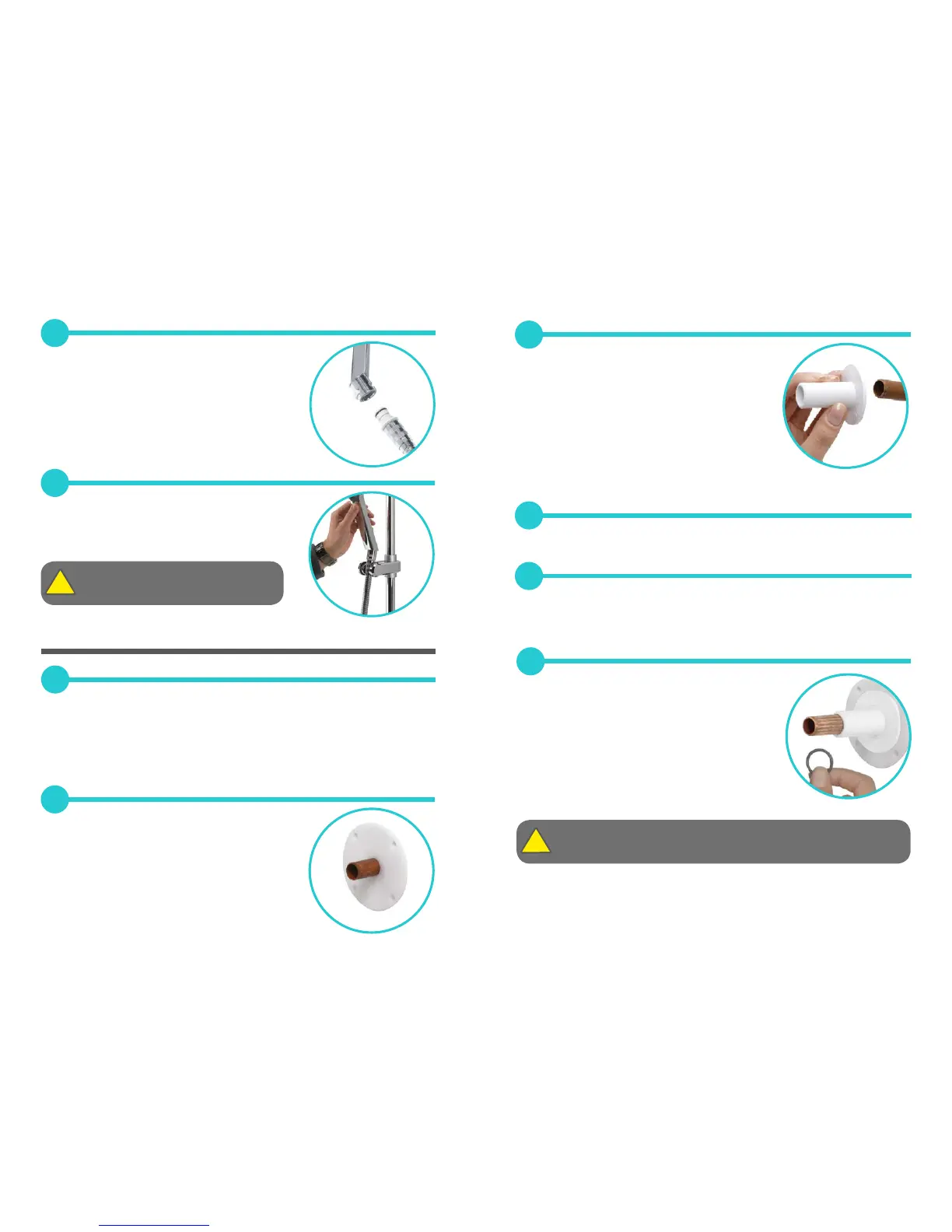

Re-insert the pivot hose connector into the handset
and push the tab to lock into position.
29
Insert handset into PINCH GRIP
TM
slider.
32
Ensure the pipe is clean and free of dust and slide the
fixing bush onto the pipe flush with the wall spacer.
WALL MOUNTED FIXED HEAD
33
Slide the fixed head arm over the fixing bush flush with the wall surface and mark
the four fixing points.
34
Carefully remove the fixed head arm and drill and prepare the fixings using the
fixings provided, if suitable, taking care to avoid pipework hidden in the wall.
35
Ensuring the fixing bush is clean and free of dust,
fit the 15mm O-ring against the end of the fixing
bush. Lubricate the O-ring using a suitable
silicone based lubricant.
Refer to point 60 of commissioning
instructions.
The O-ring must be positioned on the 15mm pipe flush to the fixing
bush, not onto the fixing bush shaft.
30
Cut the outlet pipe to the finished length (55mm – 150mm measured from the
finished wall surface) using a rotary type cutter. If a hacksaw is used, the pipe
end must be carefully de-burred and chamfered. Slide the wall spacer down the
projecting pipe flush with the finished wall surface.
31
Slide the spacer on to the projecting pipe flush with
the finished surface.
