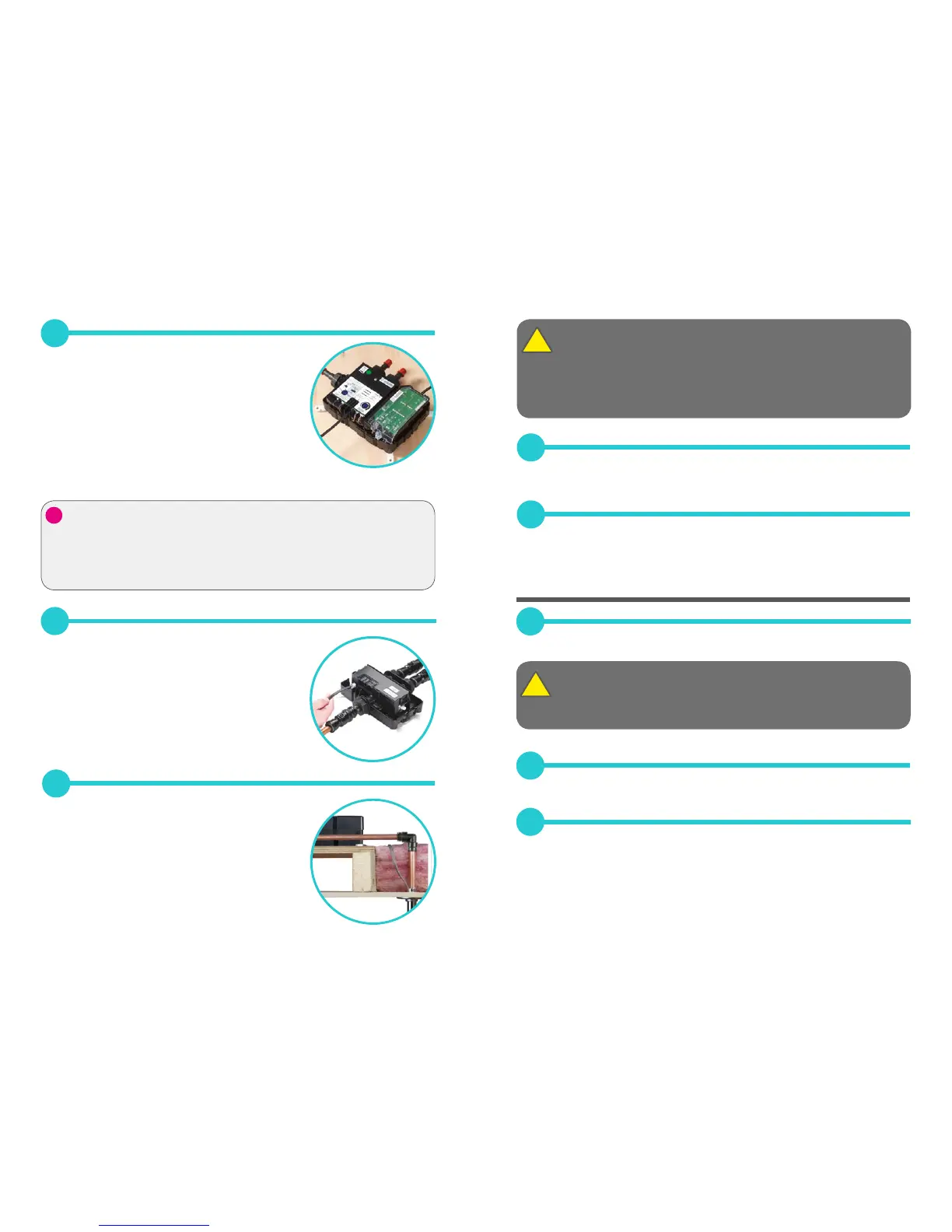

20
Remove top case of Quartz
TM
smart valve, plug in
CANBUS data cable and replace top case. Fix the
CANBUS converter box to joist/board with
self-tapping screws provided.
21
Connect the 2m patch lead cable to both the
diverter box and the secondary socket on the
Quartz
TM
smart valve. Feed the cable out of the
Quartz
TM
smart valve and diverter ensuring it is
correctly routed within the data cable channel.
If diverter is not being installed please proceed to point 22.
22
Run a supply pipe from the Quartz
TM
smart valve to
the top of the rail assembly.
If using a divert product run the supply from outlet
A to the top of the rail assembly.
14 15
23
For divert products run a supply pipe from outlet B of the diverter box to the
secondary outlet.
24
If installing a single outlet model, please go to point 60 for further instructions.
The 90° elbow must be used and kept easily accessible for future servicing
and product replacement.
To ensure optimum performance use as few elbows as possible.
To maximise flow rates we recommend using copper pipe.
Run the outlet pipe from the Quartz
TM
smart valve or diverter to the top of the
shower rail at a mildly upward gradient to reduce water dumping after use.
25
Attach the hose to the base thread at the bottom of the rail. The hose must be
tightened to point where washer forms a seal.
Current water supply regulations state that the handset should not be
allowed to pass a point 25mm above the spill over level of the bath or shower
tray. If this cannot be achieved, the hose must be passed through the gel
hook which has been designed to be utilised as a hose restraint.
ATTACHING ACCESSORIES
27
Ensure the hose washer is in the correct position and screw the pivot hose
connector into the hose.
26
To attach the handset to the hose disengage the pivot clip from the bottom of
the handset by pressing the tab and pulling the pivot hose connector clear.
Helpful tip...
If Installing a diverter, the Quartz
TM
smart valve secondary socket MUST be used
to connect the Quartz
TM
smart valve to the diverter. This is located next to the
Q
TM
smart valve main socket and is accessed by carefully snapping and removing
the entry pillar.
)
. .
