5.2 BASE
The following should be observed when selecting a base

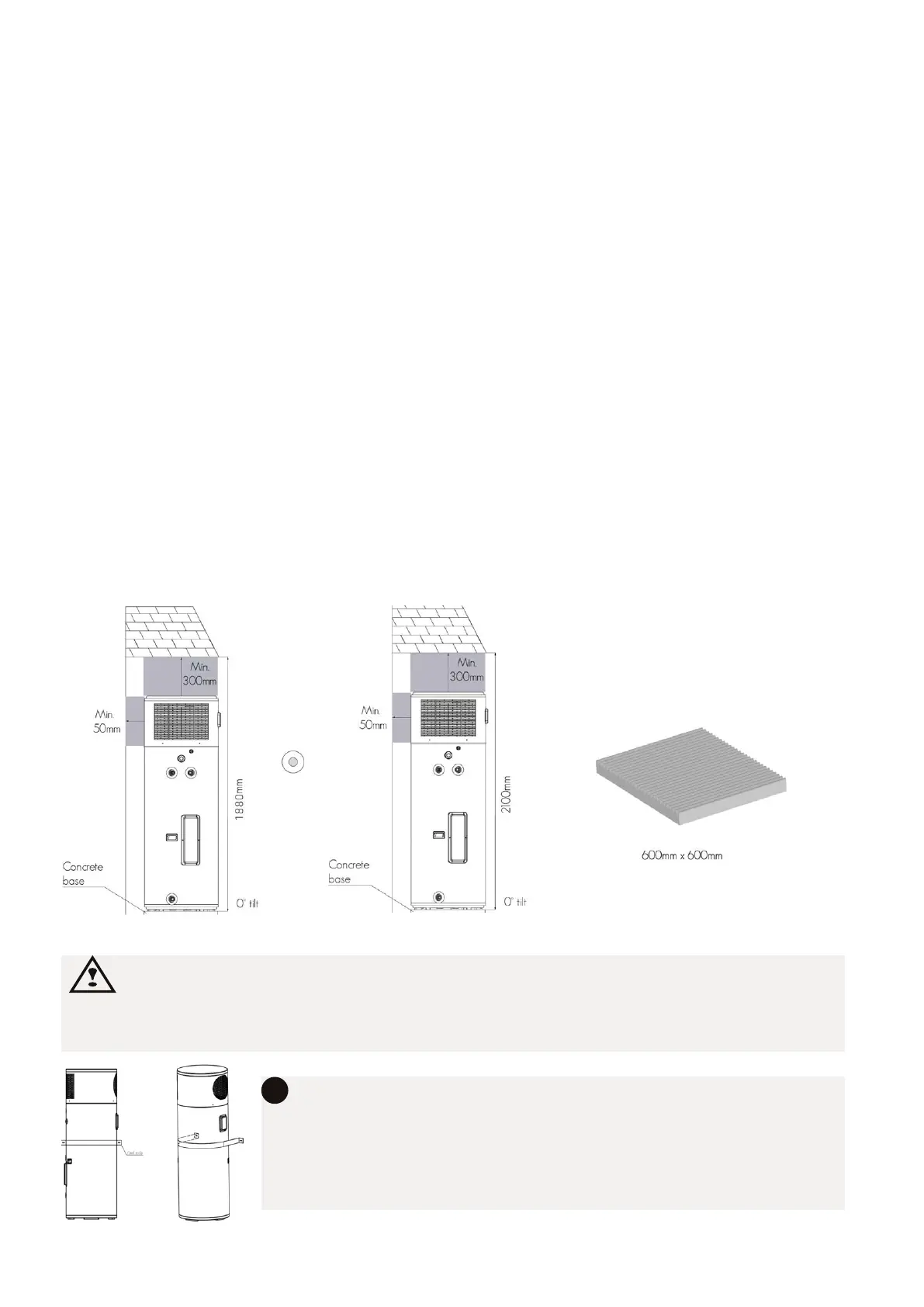

• The unit should be installed on a concrete plinth or stable structure capable of sustaining
weights in excess of 340kg (RAPID/X6) / 386kg (DYNAMIC/X8). The supporting structure
must not shift over time (due to water drainage etc.). A concrete base of at least 50mm
thick or a well-seasoned hardwood slat at least 25mm is required. If a concrete base paver
is being used, a minimum dimension of 600mm x 600mm is required.
• Please ensure that all four feet are supported by the base being used otherwise warranties
maybe voided.
•
& local standards.
• When installed the unit must be completely vertical and level as to ensure that conden-
sate can be properly drained. If the system is installed at a level with a tilt of more than 3
degrees, warranties may be voided.
•
installed.
If the product is installed in a location where there is a possibility of frost, then all
precautions must be taken to ensure all pipework is sufficiently insulated.
Warning about possible dangers.
The system should be permanently fixed to avoid tilting and
movement beyond 15°. To achieve this, a 25 x 1mm stainless
steel strap should be fastened around the centre of the cylinder
and securely attached to the framing with a tension device,
which will keep the straps in place.
