5.3 AIRFLOW
•
• Avoid installation in areas where falling debris such as leaves is prevalent, as this may re-
sult in air vents being blocked or the unit being damaged.

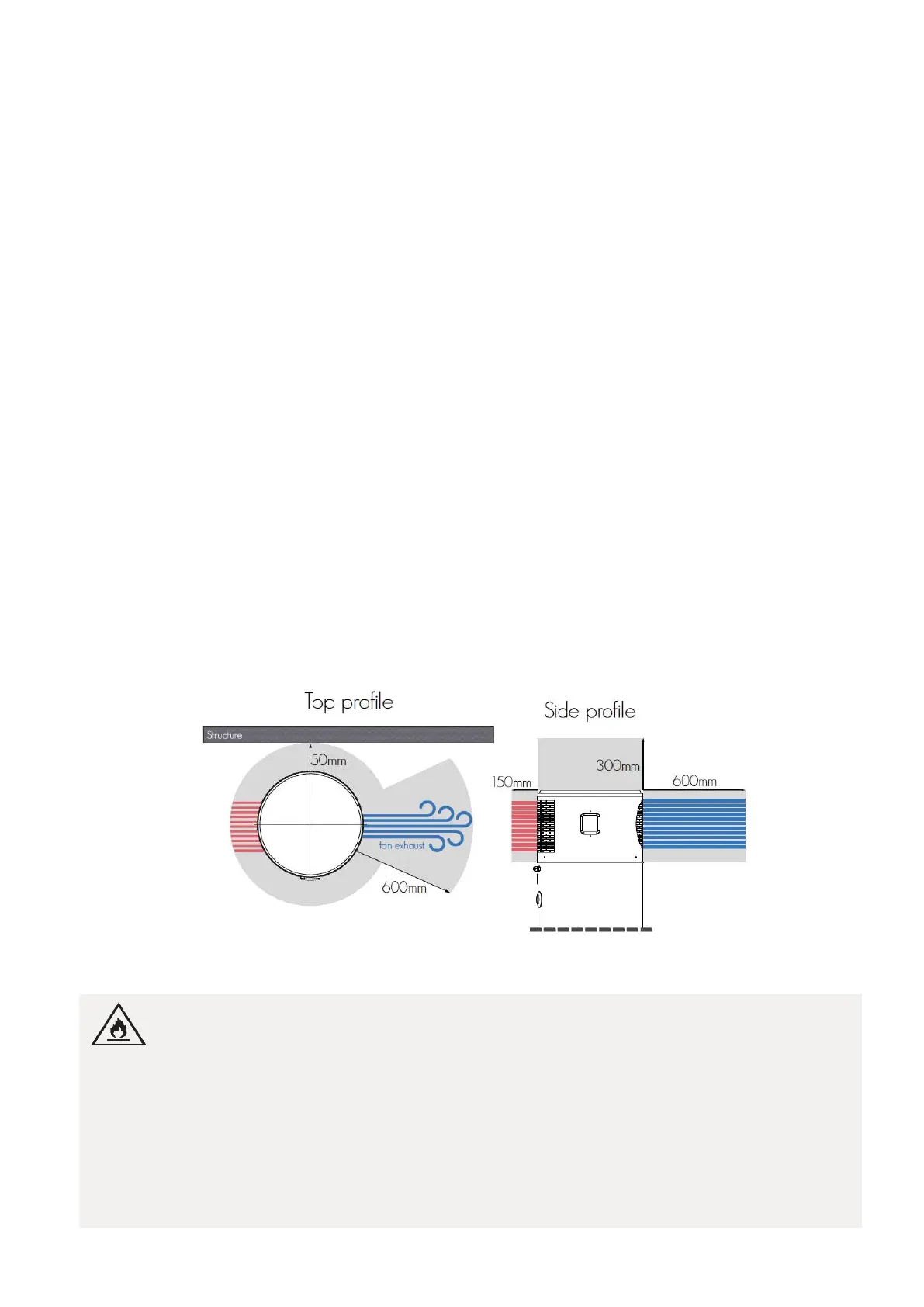

• Avoid placing the system in locations with multiple walls or structures (See Figure 1 & 2).
Always maintain optimum perimeter from all structures.
• -
tween the top of the unit, 600mm on the right-hand side of the system (when facing unit)
and 150mm on the left-hand side of the system (when facing system) (see section 2.3 AIR
FLOW).
• System must be installed a minimum of 50mm off your home’s wall so that the entire unit
can be accessed during any servicing work as well as to prevent circulation of cold air (see
section 2.3 AIR FLOW). If the system cannot be properly serviced due to the system being
costs of draining and moving the system.
• The system should be installed so that the control interface is accessible to users and that
there is clear access to the electrical panel at the back of the system.
If incorrect installation has occurred, warranties may be void or charges may be
required to ensure that the system is compliant and/or serviceable.
13
Important information regarding flammable materials.
• The systems are designed for external installation with a minimum of 20m
3
of
unobstructed space surrounding the unit. If used indoors, the appliance must be placed,
2
(RAPID/X6)
47m
2
(DYNAMIC/X8)and any required ventilation openings clear of obstruction
• Ensure the location complies with the Requirements with the regards to the heat pump
• Ensure the electrical access point and display panel should always be accessible.
