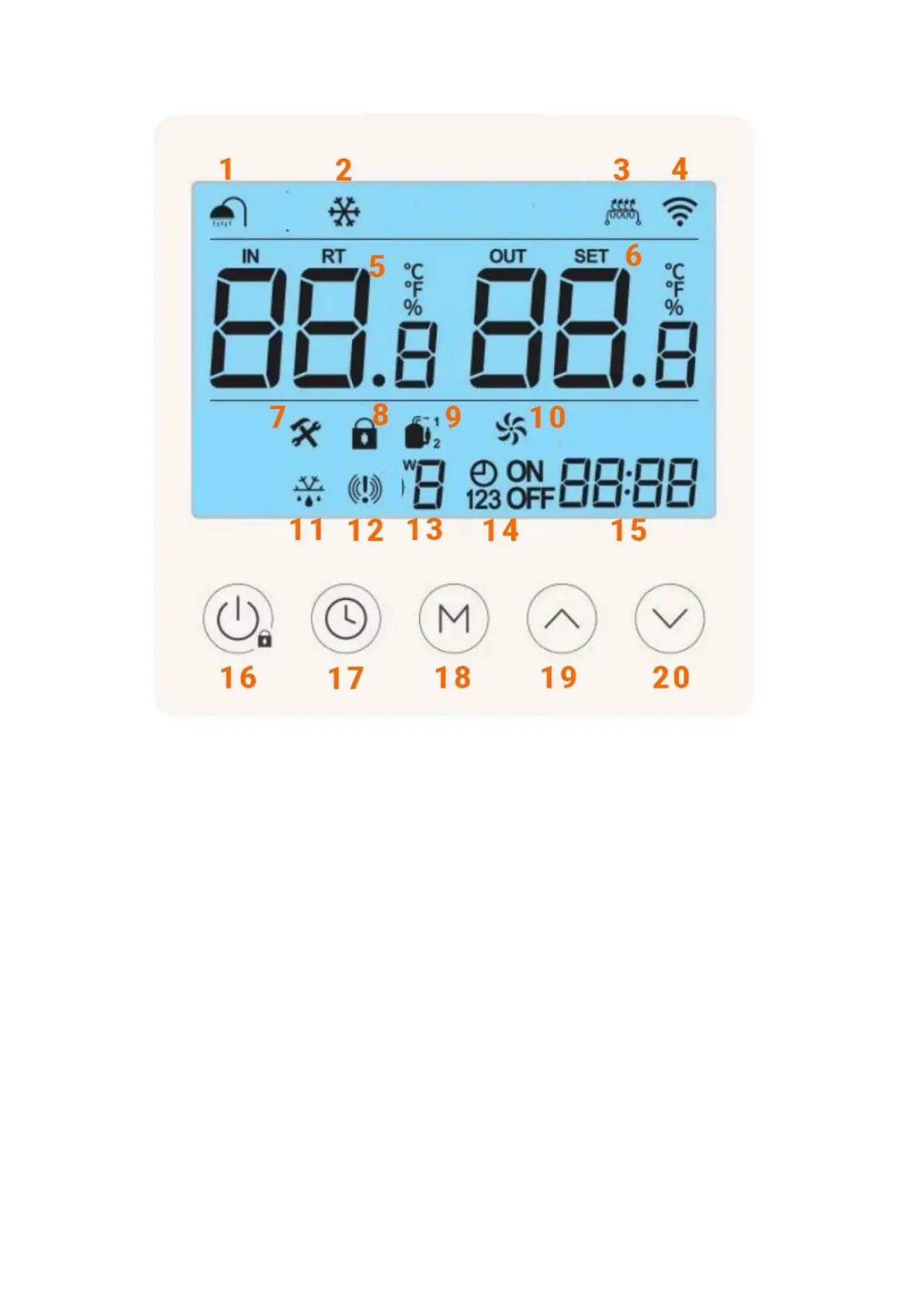

1. SHOWER - INDICATES SYSTEM IS ON 13. W# - UNIQUE DAILY TIMER IS SET (REMOVE)
2. SNOWFLAKE - SYSTEM IS IN COOLING MODE 14. CLOCK # | ON/OFF - TIMERS ARE SET
3. ELECTRIC - ELEMENT IS ON & HEATING 15. CURRENT TIME
4. WI-FI (SOLID INDICATES CONNECTED TO NETWORK) 16. POWER BUTTON - HOLD TO TURN SYSTEM ON/OFF
5. R.T TEMPERATURE (CURRENT WATER TEMPERATURE) 17. CLOCK BUTTON - SET TIME & TIMERS
6. S.T TEMPERATURE (TARGET WATER TEMPERATURE) 18. MODE BUTTON - PRESS TO SELECT MODE
7. TOOLS - CONTROLLER IS IN RE-SET STATE 19. UP ARROW - USE TO ADJUST TIMES OR NAVIGATE
8. LOCK - CONTROLLER IS IN SLEEP MODE 20. DOWN ARROW - USE TO ADJUST TIMES OR NAVIGATE
9. COMPRESSOR - HEAT PUMP IS ON & HEATING
10. FAN - HEAT PUMP IS ON & HEATING
11. MELTING SNOWFLAKE - SYSTEM IS IN DEFROST
12. ALARM - SYSTEM IS IN ERRO MODE
