16

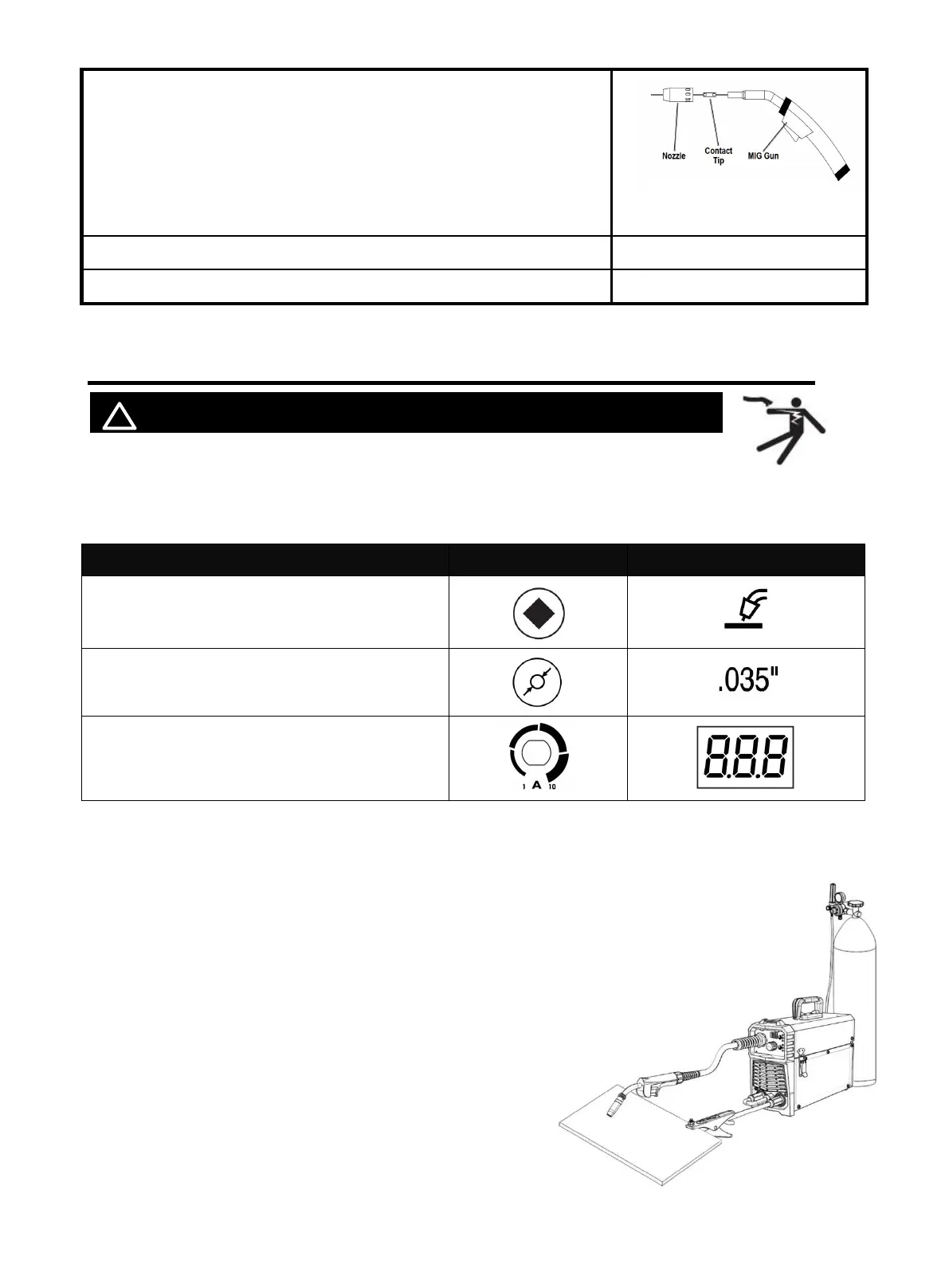

4.Turn off the machine after the wire stick out. Then install the
nozzle and contact tip.
NOTE:
Cut the wire 3/8” to 5/8” from the end of the tip.
5.Turn on the machine. The machine is now ready to weld.
6.Close the Door Latch. Make sure. Door is securely latched.
5.4 Operation
! WARINING BEWARE OF ELECTRIC SHOCK!
Turn on the power switch of the machine, and the power indicator illuminates.
Select proper working mode and proper function according your welding situation.
Clamp the Ground clamp onto the workpiece, The Ground clamp must be securely connected to the
workpiece.
Function with synergic Part Select
Select MIG
Select wire
diameter
Turn the knob to find the required current
NOTICE:
•
Always weld clean, dry and well-prepared
material.
• Hold gun at a 45° angle to the workpiece with
nozzle about 1/2” from the surface.
•
Move the gun smoothly and steadily as you
weld.
• On thin gauge material, move quickly and only
weld 1/4” stitch-welds at a time to avoid
melt-through.
•
Avoid welding in very drafty areas. A weak,
pitted and porous weld will result due to drafts
blowing away the
Figure 23
Figure 24
