• Keep wire and liner clean. Do not use rusty wire.
•
Sharp bends or kinks in the welding cable should be avoided
• ONLY use MIG solid welding wire.
•

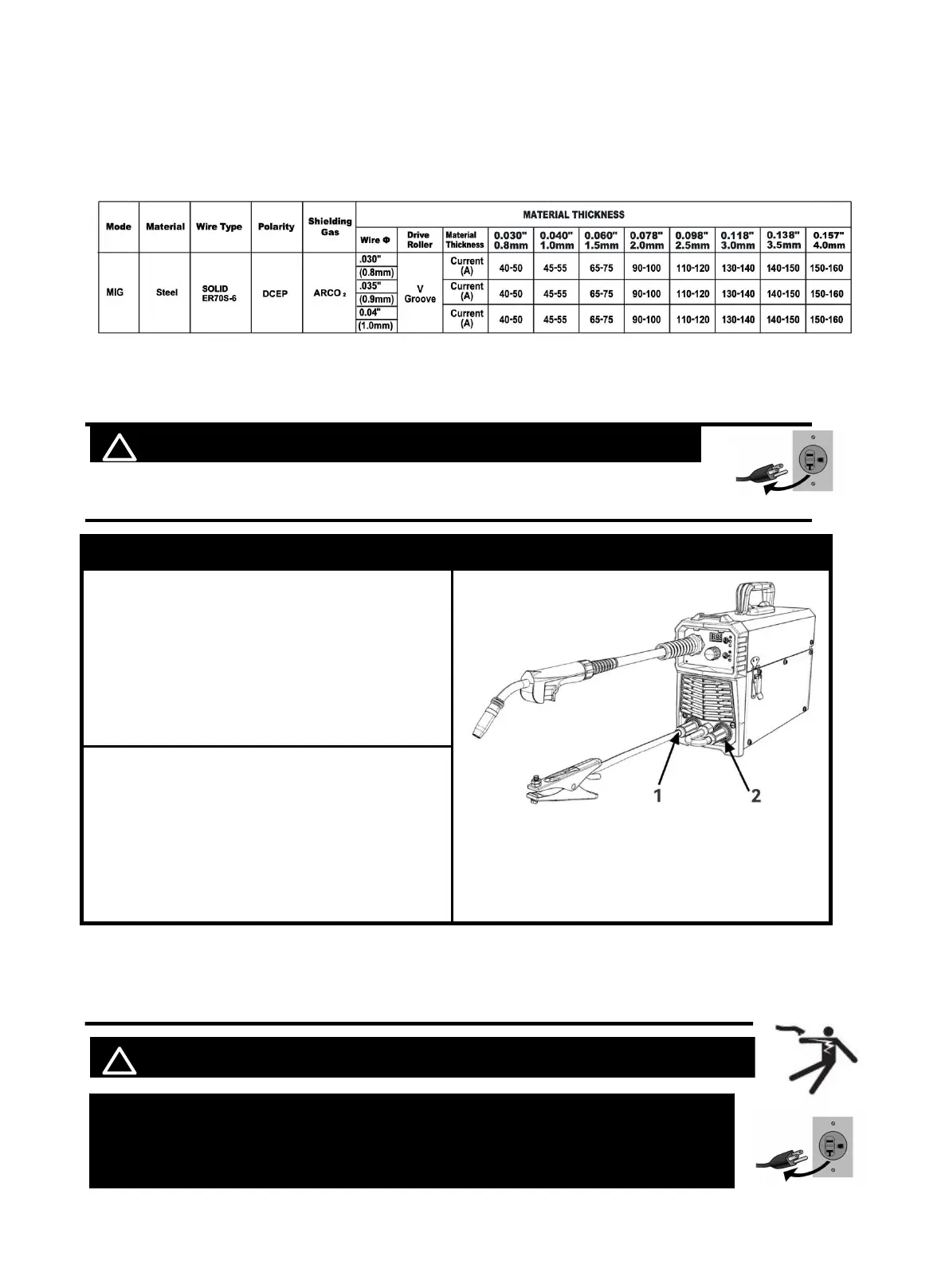

MIG Welding parameters table
（
for reference only
）
6. Operation for MIG Flux-Cored Welding
! WARINING DO NOT set up without SWITCH OFF !
6.1 Connection
Description Picture
1. Connect the ground clamp to “+” positive
polarity
NOTICE:
 The ground clamp connecter MUST be
tightly connected to the socket to avoid
power short circuit.
Figure 25
2. Connect the polarity changeover plug to “-”
negative polarity
NOTICE:
The polarity changeover plug MUST be
tightly connected to the socket to avoid
power short circuit.
6.2 Input Power Connection
! WARINING BEWARE OF ELECTRIC SHOCK!
NOTICE: The following steps require applying power to the Welder
with the cover open.
To prevent serious injury from fire or electric shock:
