21

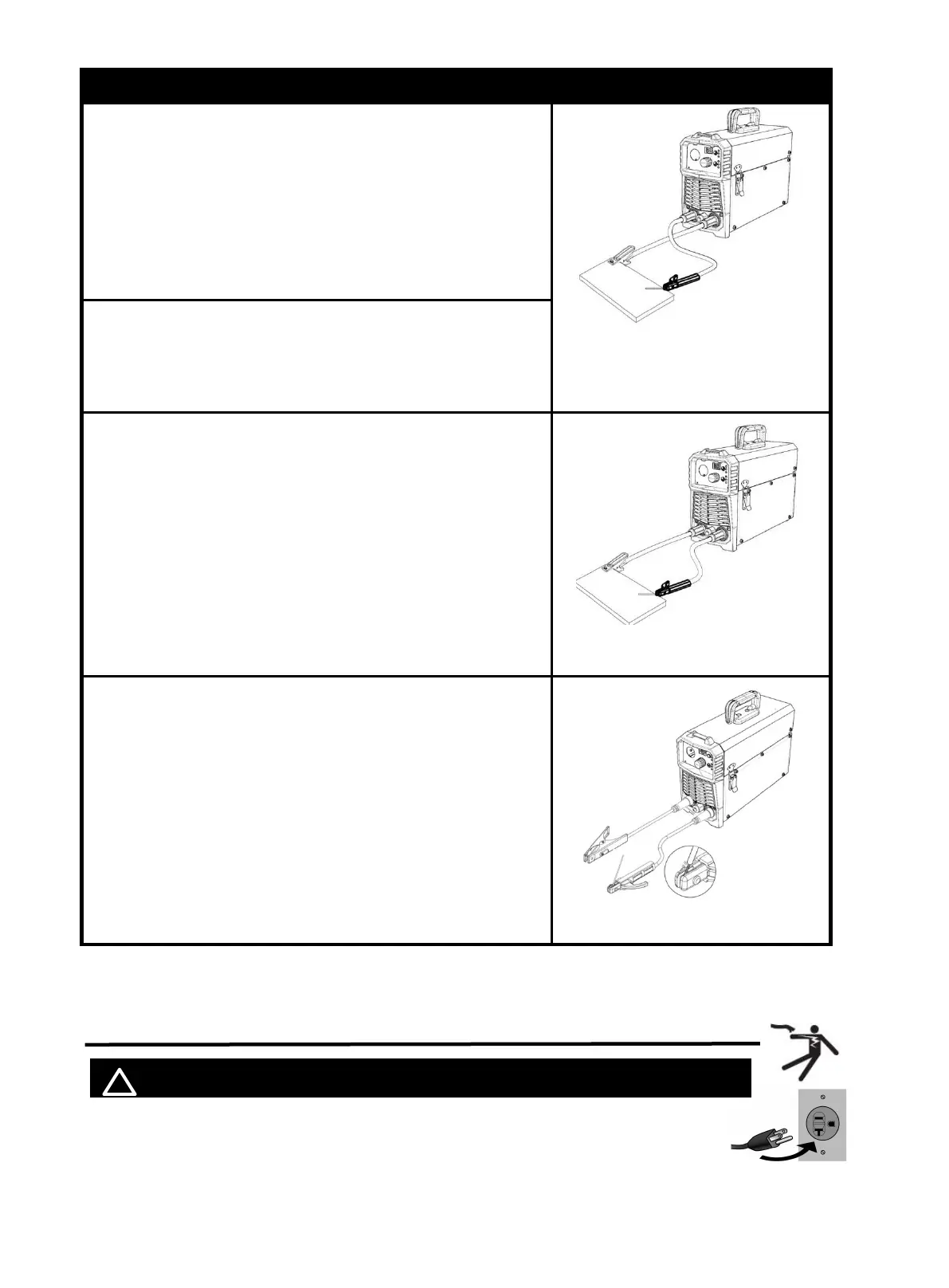

Description Picture
1. Connect the ground clamp to “-” Negative polarity
NOTE:
The ground clamp connecter MUST be tightly
connected to the socket to avoid power short circuit.
Ensure the ground clamp is connected on clean,
bare metal (not rusty or painted).
2. Connect the Electrode Holder to “+” Positive polarity
NOTE: The Electrode Holder connecter MUST be tightly
connected to the socket to avoid power short circuit.
3. When you use Alkaline rods (E7018), need to DCEP, that
is connect the holder and ground clamp as mentioned above
in above 1. and 2.
If you use Acidic rods(E6013), need to DCEN, that is connect
the holder to “-”and ground clamp to “+” .
NOTE: Incorrect wiring can affect welding results.
4. Place the bare metal end of the Stick Electrode (sold
separately) inside the jaws of the Electrode Holder.
NOTE: Set Electrode Holder down on nonconductive,
nonflammable surface away from any grounded
objects.Install Stick Electrode with the machine turned off.
7.2 MMA Welder Operation
! WARINING BEWARE OF ELECTRIC SHOCK!
Figure 30 DCEP
Figure 31 DCEN
Figure 32
