NOTICE: The following steps require applying power to the Welder
with the cover open.
To prevent serious injury from fire or electric shock:
1.DO NOT touch anything, especially not the ground clamp, with the
gun or welding wire or an arc will be ignited.
2. DO NOT touch internal Welder Components while it is plugged in.

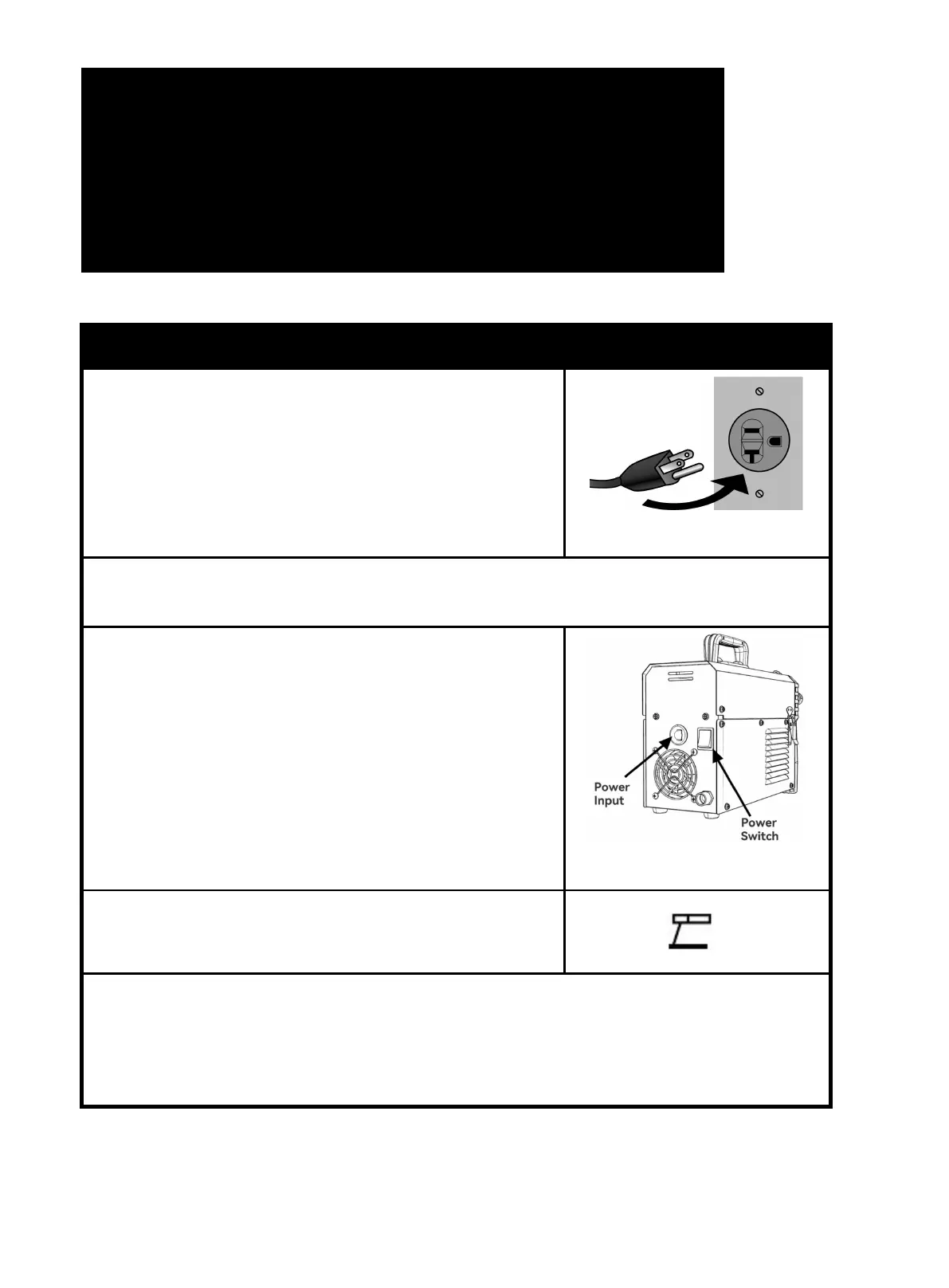

Operation steps
1. connect power cord
NOTE: Turn the Power Switch off before connecting Power
Cord. Plug the Power Cord into a properly grounded and
rated receptacle that matches the plug. The circuit must be
equipped with delayed action-type circuit breaker or fuses.
2.
Place the bare metal end of the Stick Electrode (sold separately) inside the jaws of the Electrode
Holder.
3.
Turn the Power Switch ON.
The Operation interface will light up and the Cooling fan will
rotate.
NOTE:
Welder is now energized and open circuit Voltage is
present.
4. Select MMA
5. Stroke the workpiece lightly to ignite the arc.
Tips for igniting the arc:
a. Tap the surface with the Electrode.
b. Stroke the surface with the Electrode.
c. Strike the surface like a match with the Electrode.
Figure 34
Figure 33
