2. Start to install the wire:
Turn counterclockwise to remove the spool knob,
then remove the spring.

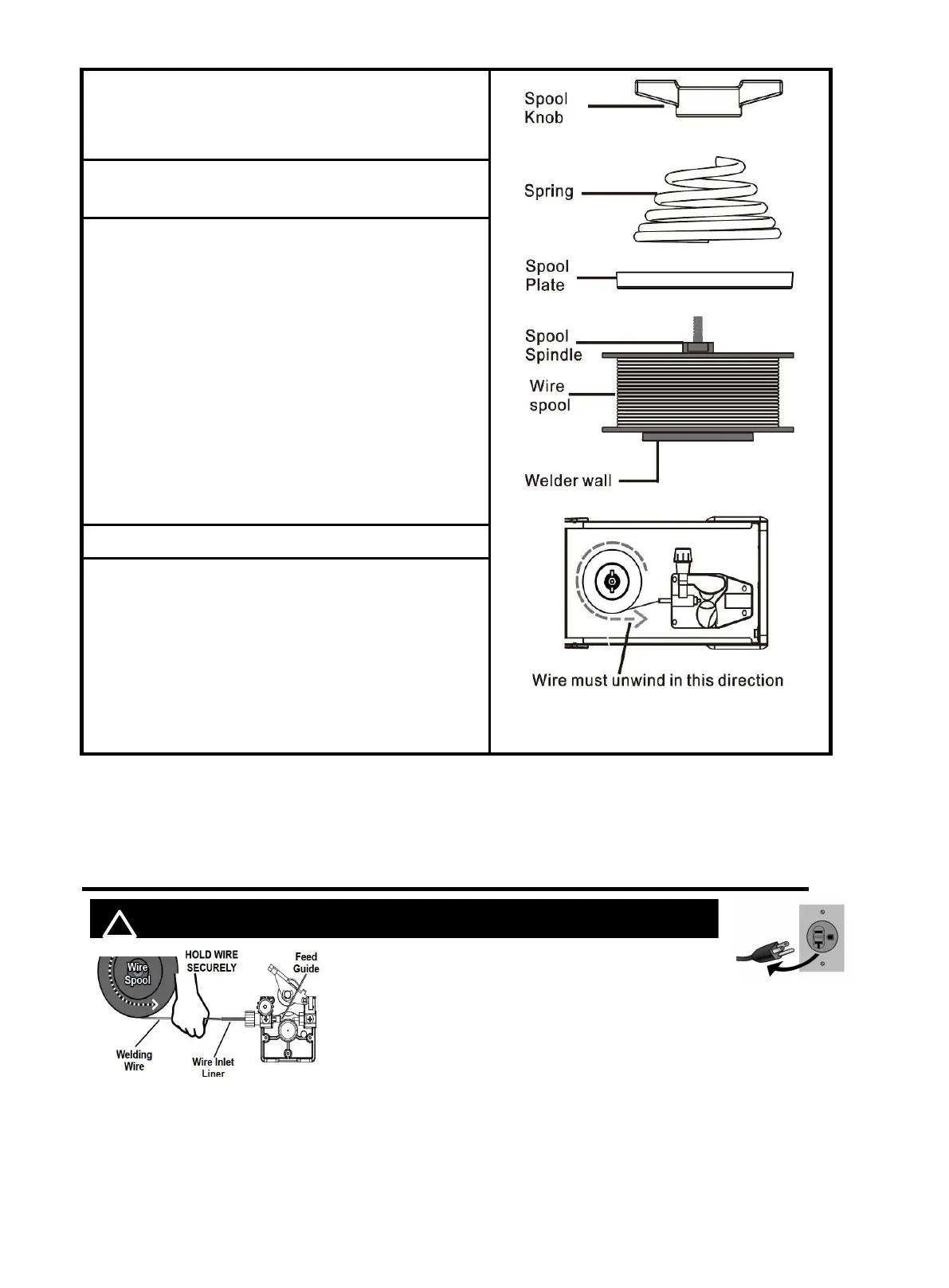

Figure 13 Wire spool
3.Remove the spool plate, then spool spindle will be
exposed.
4.Place the wire spool over the spool spindle.
NOTICE:
To prevent wire feed problems, set the leading
end of spool wire towards to wire inlet liner (refer
to the picture), so that it will unwind
counterclockwise.
NOTICE:
To prevent welding wire to unravel and unspool
which can cause tangling and feeding problems,
DO NOT release the wire before spool knob
replace.
5.Replace the spool plate back on the spool spindle.
6.Replace the spring and spool knob over the spool
plate, then turn the spool knob clockwise to tighten.
NOTICE:
If Wire Spool can spin freely, Knot is too loose.
This will cause the welding wire to unravel and
unspool which can cause tangling and feeding
problems.
4.4 Wire Feeding Installation
! WARINING DO NOT set up without SWITCH OFF !
NOTE: MUST Securely hold onto the end
of the welding wire and keep tension on it during the
following steps. If this is not done, the welding wire will
unravel and unspool which can cause tangling and
feeding problems!
Figure 14
