24
Description

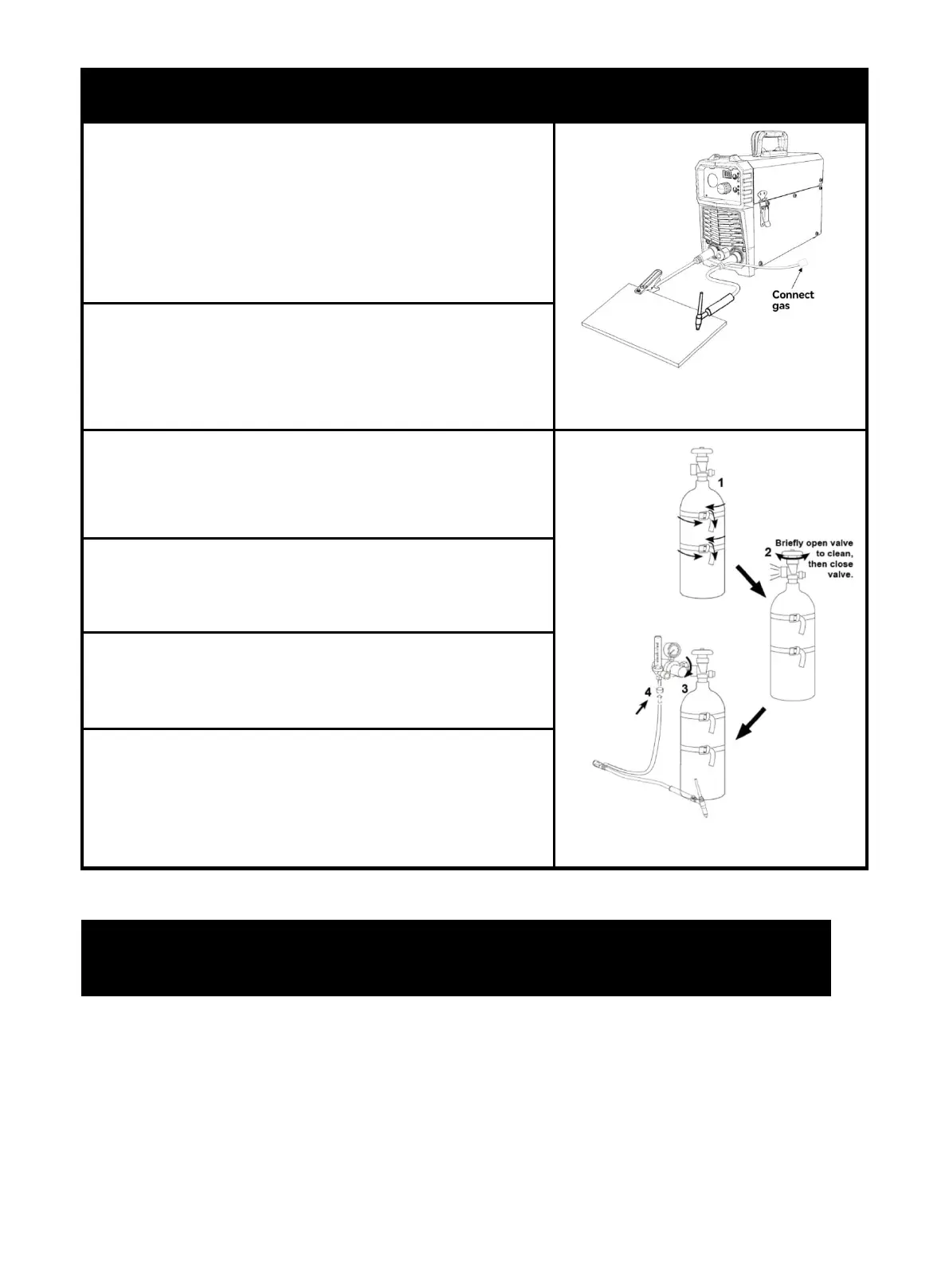

1. Connect the ground clamp to “+” Positive polarity
NOTICE:
The ground clamp connecter MUST be tightly
connected to the socket to avoid power short circuit.
Ensure the ground clamp is connected on clean,
bare metal (not rusty or painted).
2. Connect the tig gun（WP-17V） to “-” Negative polarity
NOTICE:
The tig gun connecter MUST be tightly connected to
the socket to avoid power short circuit.
1. With assistance, place an 100% Argon cylinder (not included)
onto a cabinet or cart near the Welder and secure the cylinder in
place with two straps (not included) to prevent tipping.
2.
Remove the cylinder’s cap. Stand to the side of the valve
opening, then open the valve briefly to blow dust and dirt from
the valve opening. Close the cylinder valve.
3. Locate the Regulator (included) and close its valve until it is
loose, then thread Regulator onto cylinder and wrench-tighten
connection.
4. Connect Shielding Gas Hose on TIG Torch Cable Connector
to the Regulator’s Outlet and wrench-tighten connection.
Sharpen tungsten Electrode
WARNING! TO PREVENT SERIOUS INJURY: Some Electrodes may contain materials that are
hazardous to breathe. Wear a respirator and ANSI-approved safety goggles when grinding an
Electrode.
Figure 35
Figure 36
