Arctic MAFP020A - Recommended Circulation Pump (External)

8
Recommended Circulation Pump (External)
Technical Specifications
UPS26-99FC (240 VAC):
• Voltage: 230 VAC
• Amperage at Speed 1: 1.3
Amps;
• Amperage at Speed 2: 1.5
Amps;
• Amperage at Speed 3: 1.8
Amps;
• Hertz: 60 Hz;
• Phase: 1;
• Watts at Speed 1: 150W;
• Watts at Speed 2: 179W;
• Watts at Speed 3: 197W;
• Max Pressure: 145 psi;
• Max Temperature: 230F;
• Min Temperature: 36F;
• Flow Range: 0-33 GPM;
• Head Range: 0-29 ft;
• Horse Power: 1/6HP;
• Body: Cast Iron;
• Connections: Flanged, 1/2",
3/4", 1", 1-1/4";

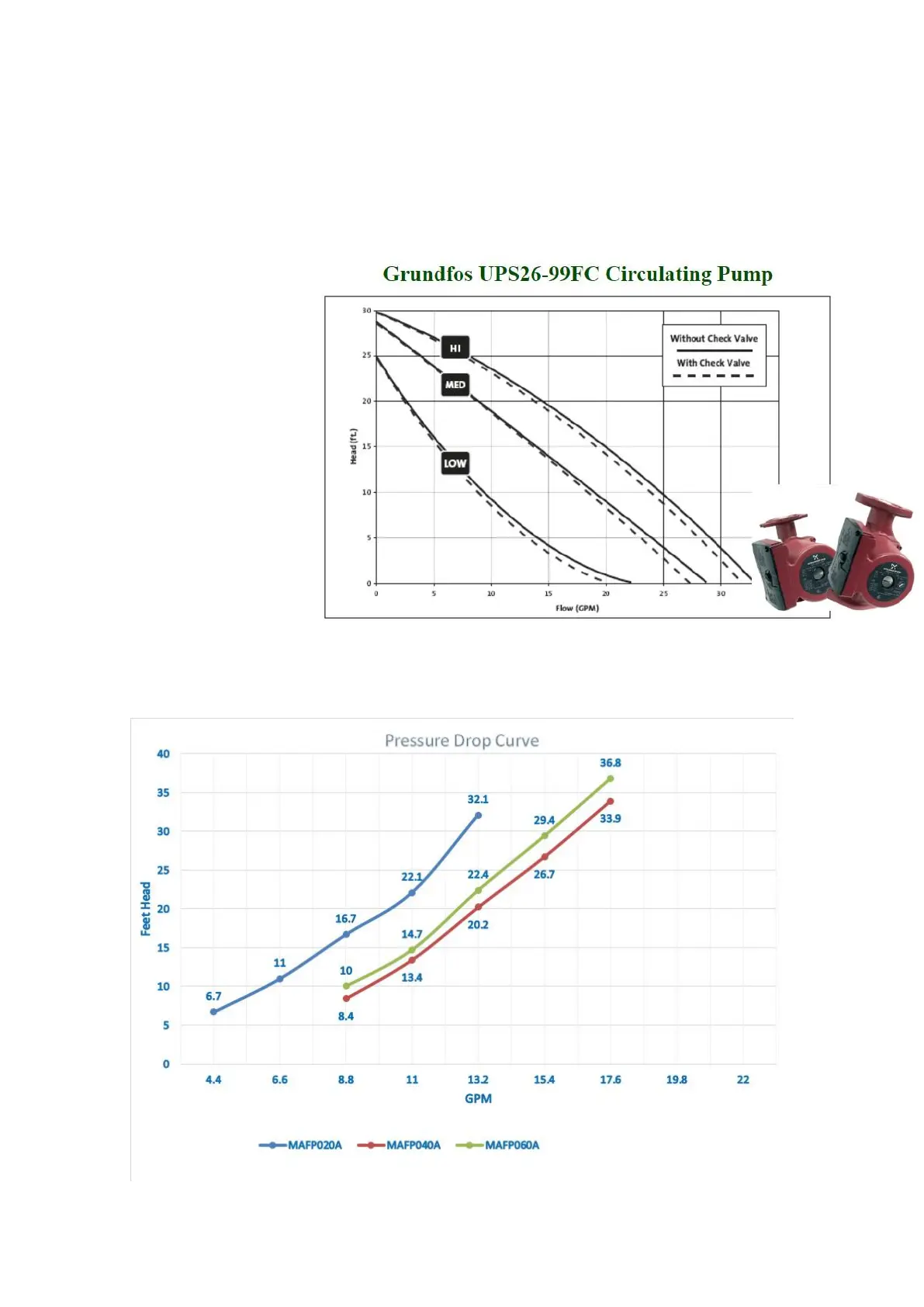

Heat Pump Flow Pressure Drop Curves
