Aritech 2X Series User Manual

Chapter 1: Introduction
2X Series Installation Manual 11
Icons displayed on the LCD
Icons displayed on the LCD are shown below.

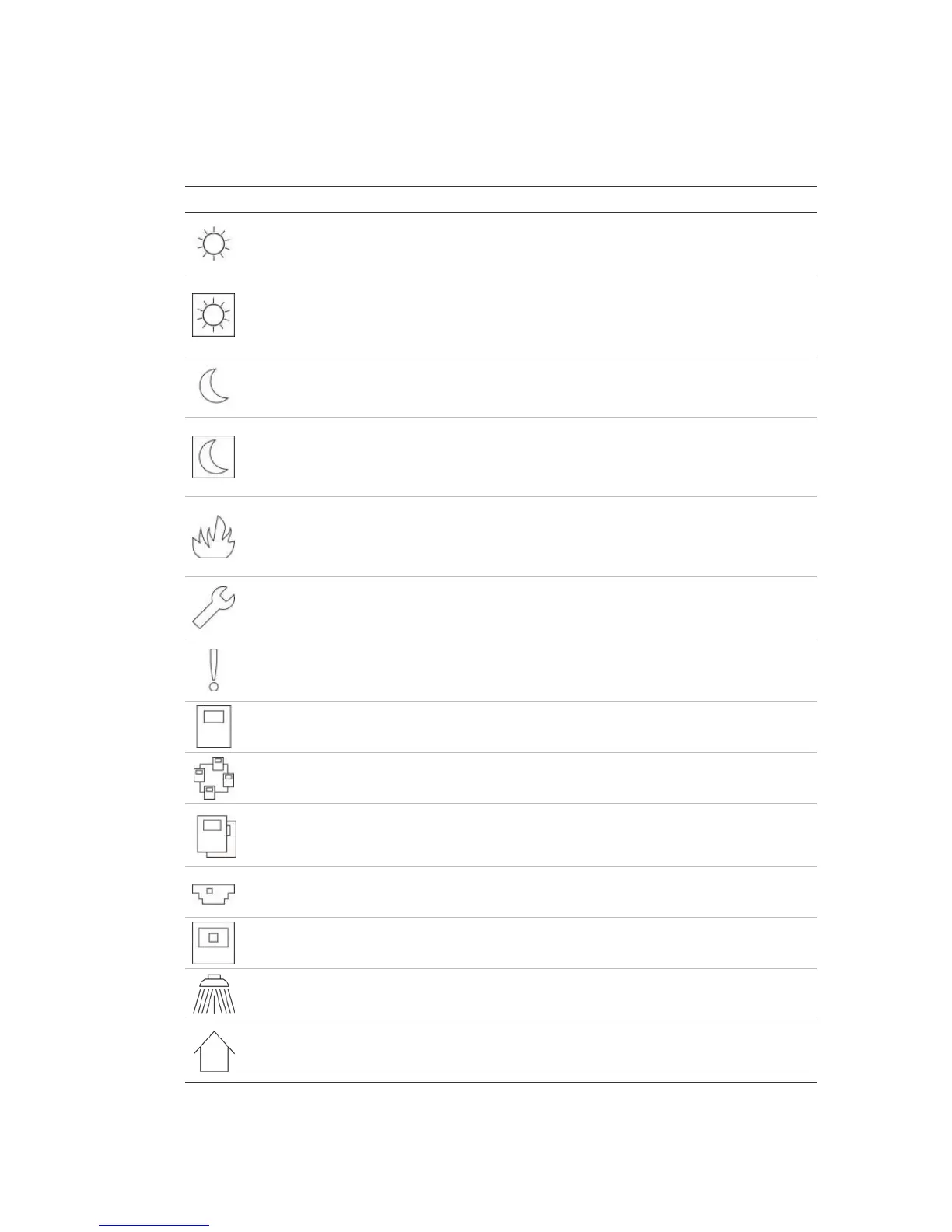

Table 5: LCD icons and descriptions
Icon
Description
Day mode (network)
This icon indicates that the primary sensitivity mode
setting for control panels in the fire network is day
mode.
Day mode (control panel)
This icon indicates that the sensitivity mode for the local
control panel is day mode. Other control panels in the
fire network may have a different sensitivity mode
setting.
Night mode (network)
This icon indicates that the primary sensitivity mode
setting for control panels in the fire network is night
mode.
Night mode (control panel)
This icon indicates that the sensitivity mode for the local
control panel is night mode. Other control panels in the
fire network may have a different sensitivity mode
setting.
Fire alarms
The number beside this icon indicates the number of
zones with an active fire alarm. Alarm information for
the first and last zones to report an alarm is displayed in
the LCD message area.
Faults
The number beside this icon indicates the number of
active faults. Additional information is available by
pressing F1 (Show Events).
Conditions
The number beside this icon indicates the number of
active system conditions. Additional information is
available by pressing F1 (Show Events).
Stand-alone
This icon indicates that the control panel is not
connected to the fire network.
Networked
This icon indicates that the control panel is connected
to the fire network.
Repeater
This icon indicates that the control panel is configured
to operate as a repeater and is connected to the fire
network.
Detector alarm [1]
This icon indicates a detector alarm.
Manual call point alarm [1]
This icon indicates a manual call point alarm.
Manual call point alarm
(sprinkler) [1]
This icon indicates a manual call point alarm (sprinkler).
Manual call point alarm
(“hausalarm”) [1]
This icon indicates a manual call point alarm
(“hausalarm”). This is a local alarm with no fire routing
activation.
[1] These icons appear in the message display area with the notification details.

Aritech 2X Series Specifications

General

Certifications	EN54-2, EN54-4
Power Supply	230V AC, 50Hz
Battery Capacity	7Ah
Current Consumption	Standby: 50mA
Humidity Range	Up to 95% RH, non-condensing
