Chapter 1: Introduction

10 2X Series Installation Manual

There are two fire routing output groups, the first is in activated status and the

second is in acknowledged status. The fire routing indication displays the

acknowledged status but not the activation status (the acknowledgement status

takes priority).

For more information on output groups, see “Output groups” on page 86.

LCD controls and indicators

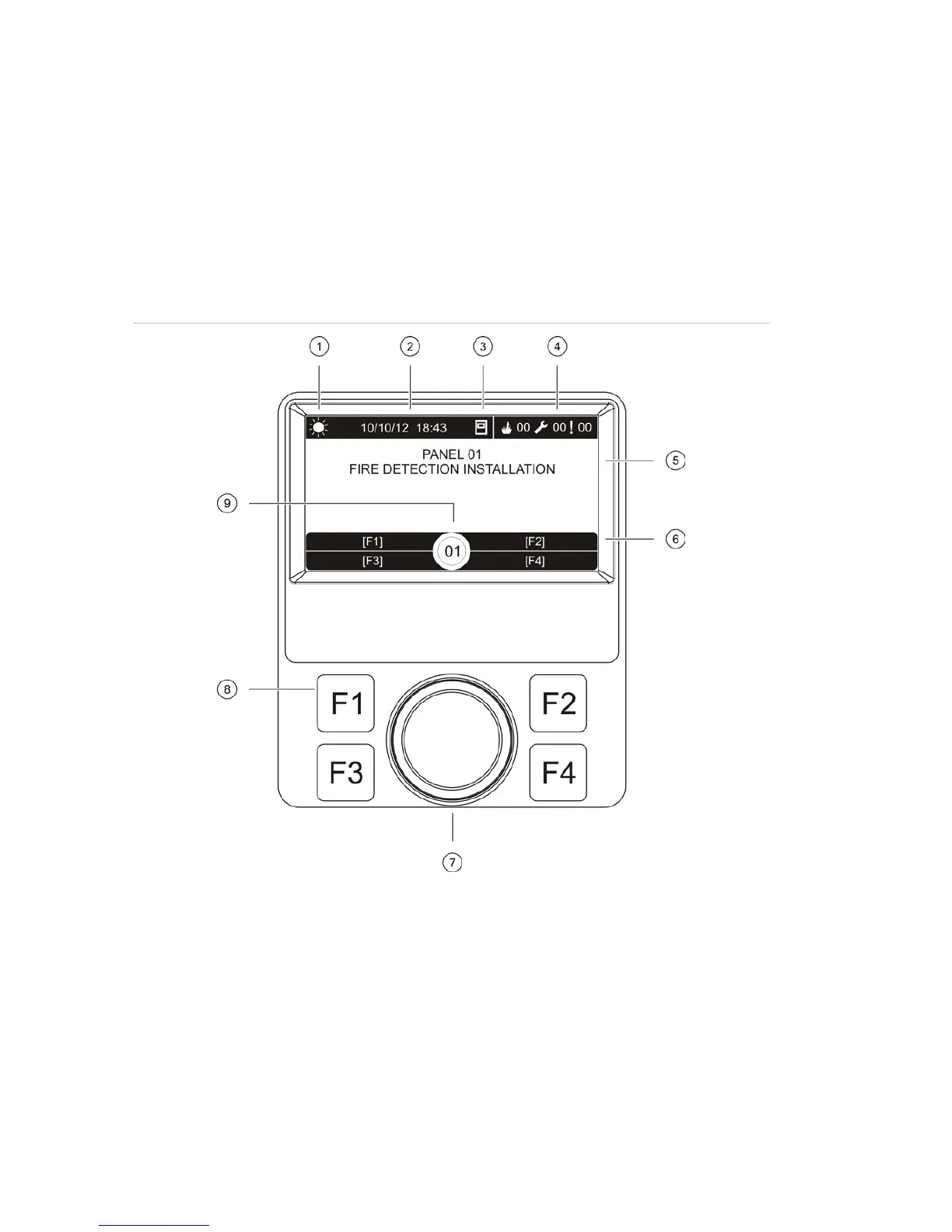

Figure 3: LCD controls and indicators

1. Day/night mode indicator

2. System date and time

3. Control panel network status (stand-alone, networked, repeater)

4. Current alarm, fault, and condition events counter

5. Message display area

6. Soft keys (menu options linked to function buttons F1, F2, F3, and F4)

7. Jog dial

8. Function buttons F1, F2, F3, and F4

9. Local control panel ID (in a fire network)
