Aritech 2X Series - Cabinet and PCB layout

Chapter 2: Installation
2X Series Installation Manual 17
Cabinet and PCB layout

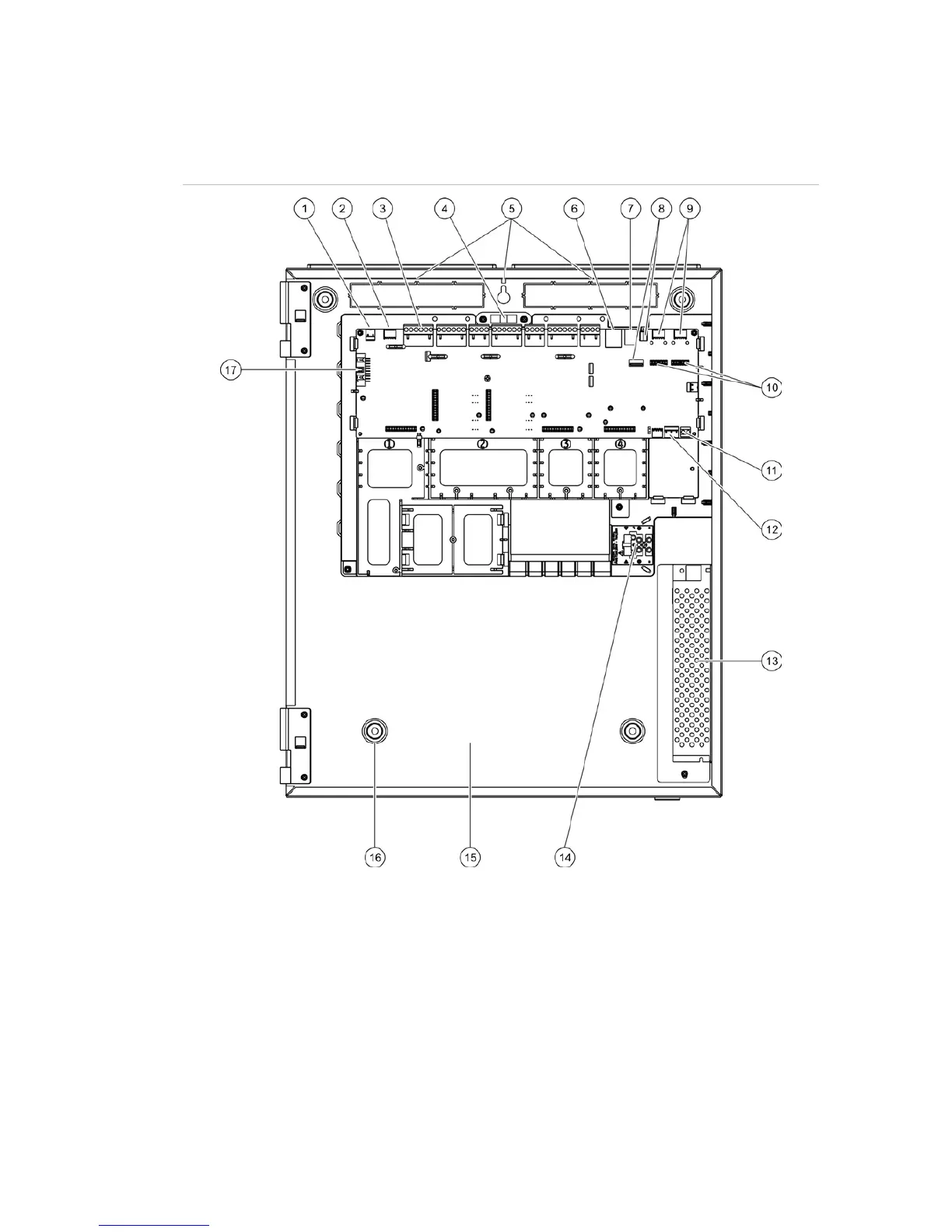

Figure 4: Large cabinet and PCB layout (two-loop control panel)
1
. 24V connector
2
. COM2 serial port
3
. Loop and fire system connectors
4
. Spirit level
5
. Earth studs
6
. Ethernet connector
7
. USB type B connector
8
. USB type A connectors
9. COM0 and COM1 serial ports
10. COM0 and COM1 interface connectors
11. Battery connector
12. Power supply connector
13. Power supply
14. Mains terminal block and fuse
15. Battery area
16. Mounting holes
17. User interface connector
