Chapter 2: Installation
18 2X Series Installation Manual

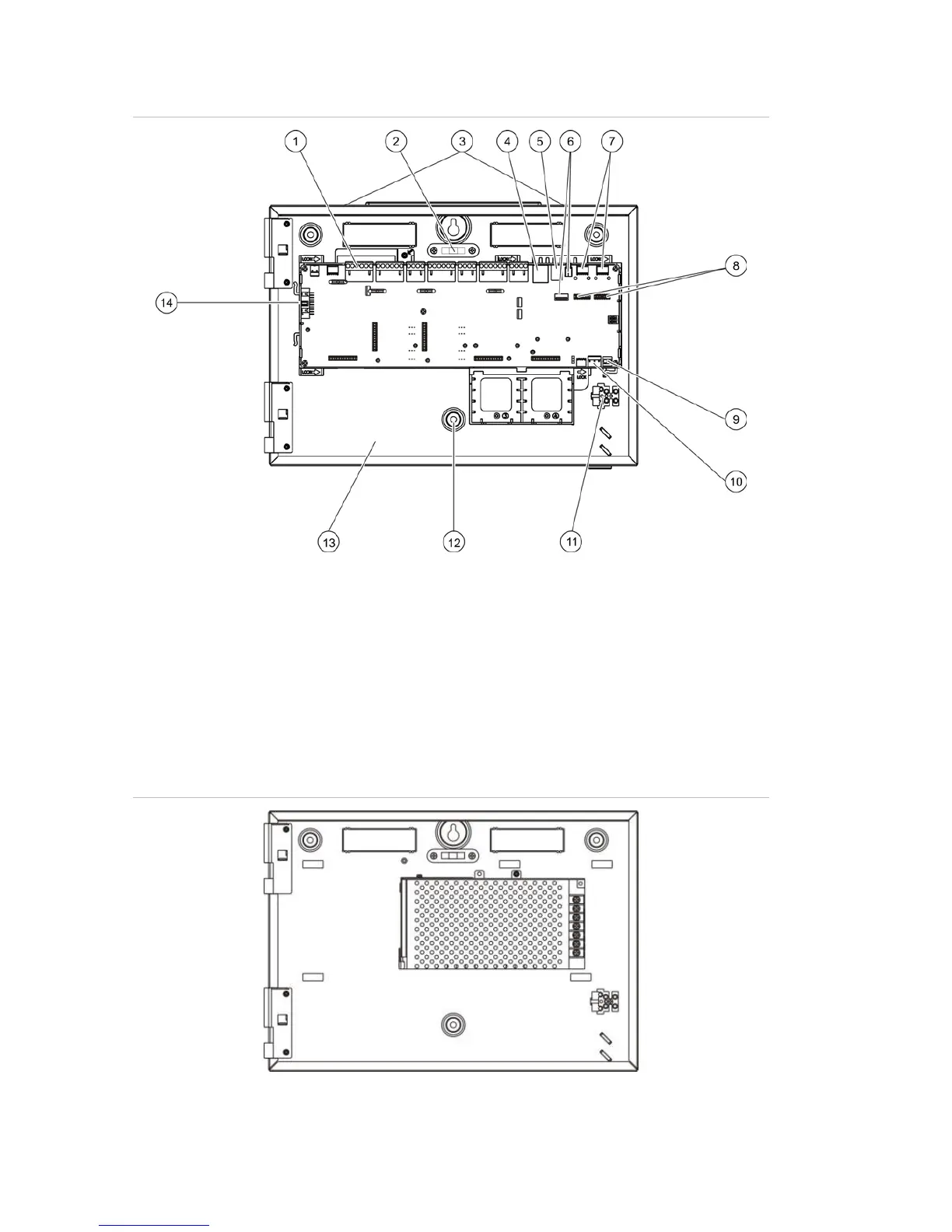

Figure 5: Small cabinet and PCB layout (two-loop control panel)
1
. Loop and fire system connectors
2
. Spirit level
3
. Earth studs
4
. Ethernet connector
5
. USB type B connector
6
. USB type A connectors
7. COM0 and COM1 serial ports
8. COM0 and COM1 interface connectors
9. Battery connector
10. Power supply connector
11. Mains terminal block and fuse
12. Mounting holes
13. Battery area
14. User interface connector
Figure 6: Small cabinet with main PCB and chassis removed to show power supply
