7

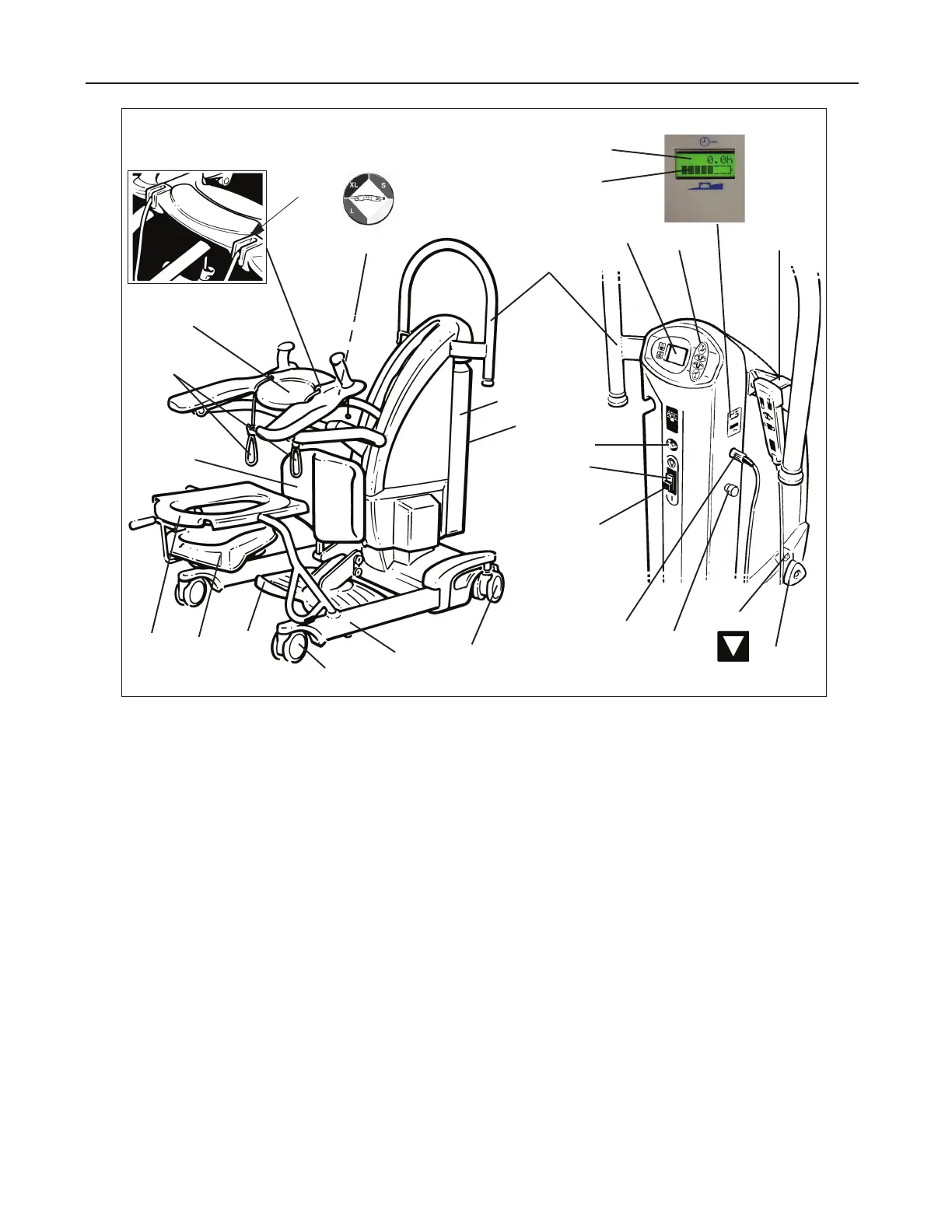

Parts designation
1. Maneuvering handle
2. Battery pack
3. Braked castors (rear)
4. Chassis legs
5. Front castors (unbraked)
6. Foot support (removable)
7. Commode pan (optional)
8. Commode seat and frame (optional)
9. Proactive Pad™ (adjustable)
10. Attachment cords (for sling)
11. Arc-Rest™ (supportive arm rests with handgrips)
12. Detail view of cord locking cleats
13. Dual control panel
14. Hand control
15. System failure lower override knob
16. Label - System failure lower override identification
17. Handset cable connection
18. Battery discharge indicator
19. Power on/reset button (green)
20. Power off button (red)
21. Label - Read Instructions for use before use
22. Label - Sling size guide
23. Hour/cycle meter
24. Scale display panel (if avalable)
25. Label - Read Instructions for use before use
26. Emergency stop button
P1331a/2, P1431a, P1224, P1381c
11
10
9
4
1
6
2
3
7
8
17
5
20
19
15
24
21
13
14
23
18
16
12
22
25
26
