Description
7

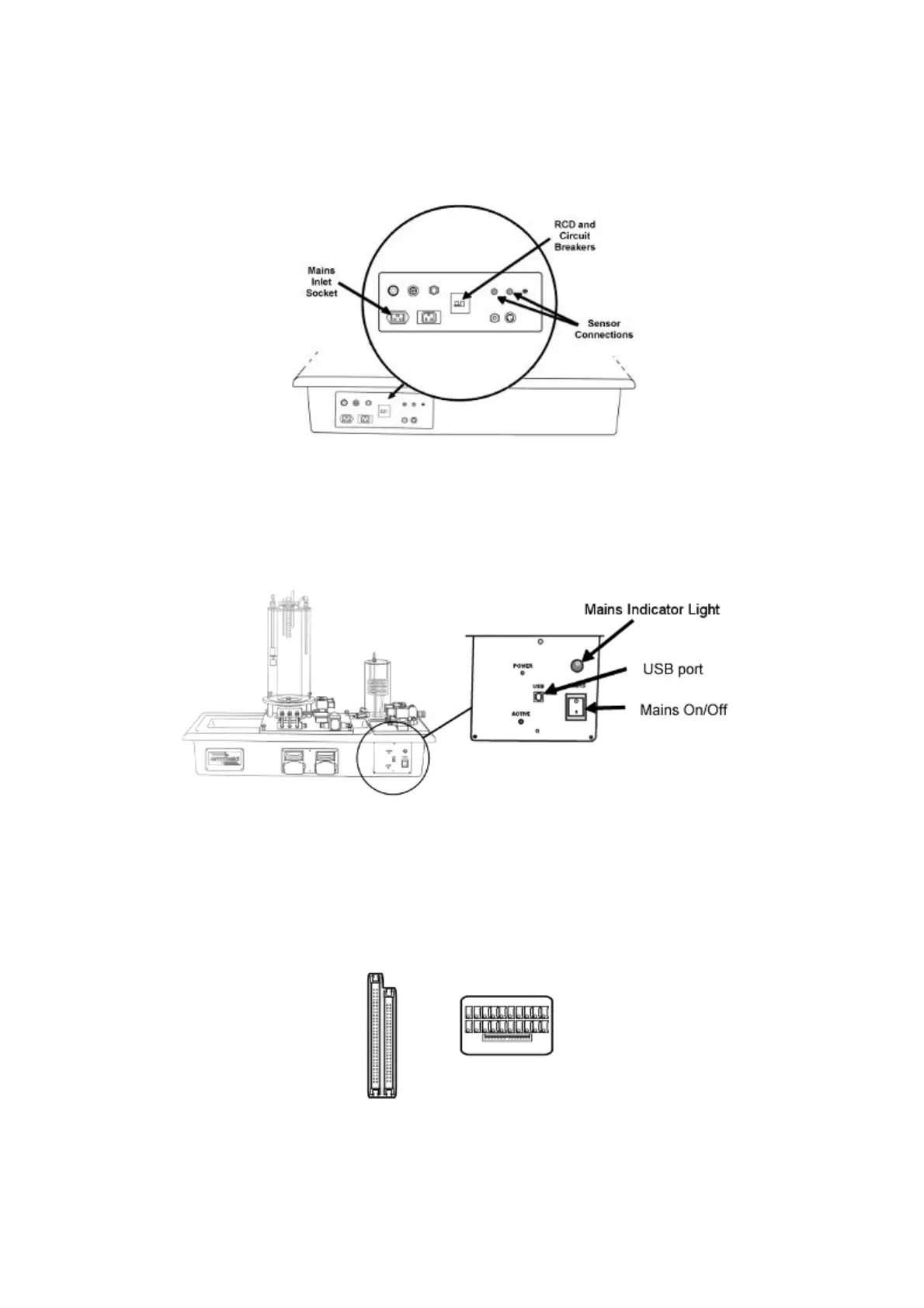

A mains power inlet socket and sensor connections are located at the rear of the
plinth, which also incorporates an RCD and circuit breakers for electrical safety.
The front of the plinth incorporates the mains on/off switch and a USB socket for
connection to a PC running the Armfield PCT40 software.
Both a 60-way I/O connector and a 50-way I/O connector are located on the right
hand end of the plinth and may be used for connecting the PCT43 Electronic
Console, when required.
