Armfield Instruction Manual
8
The left-hand end of the plinth includes a mounting point for the optional PCT41
Process Vessel Accessory.
Other options such as the PCT44 Pneumatic Control Valve and PCT43 Electronic
Console are designed to stand alongside the plinth when in use.

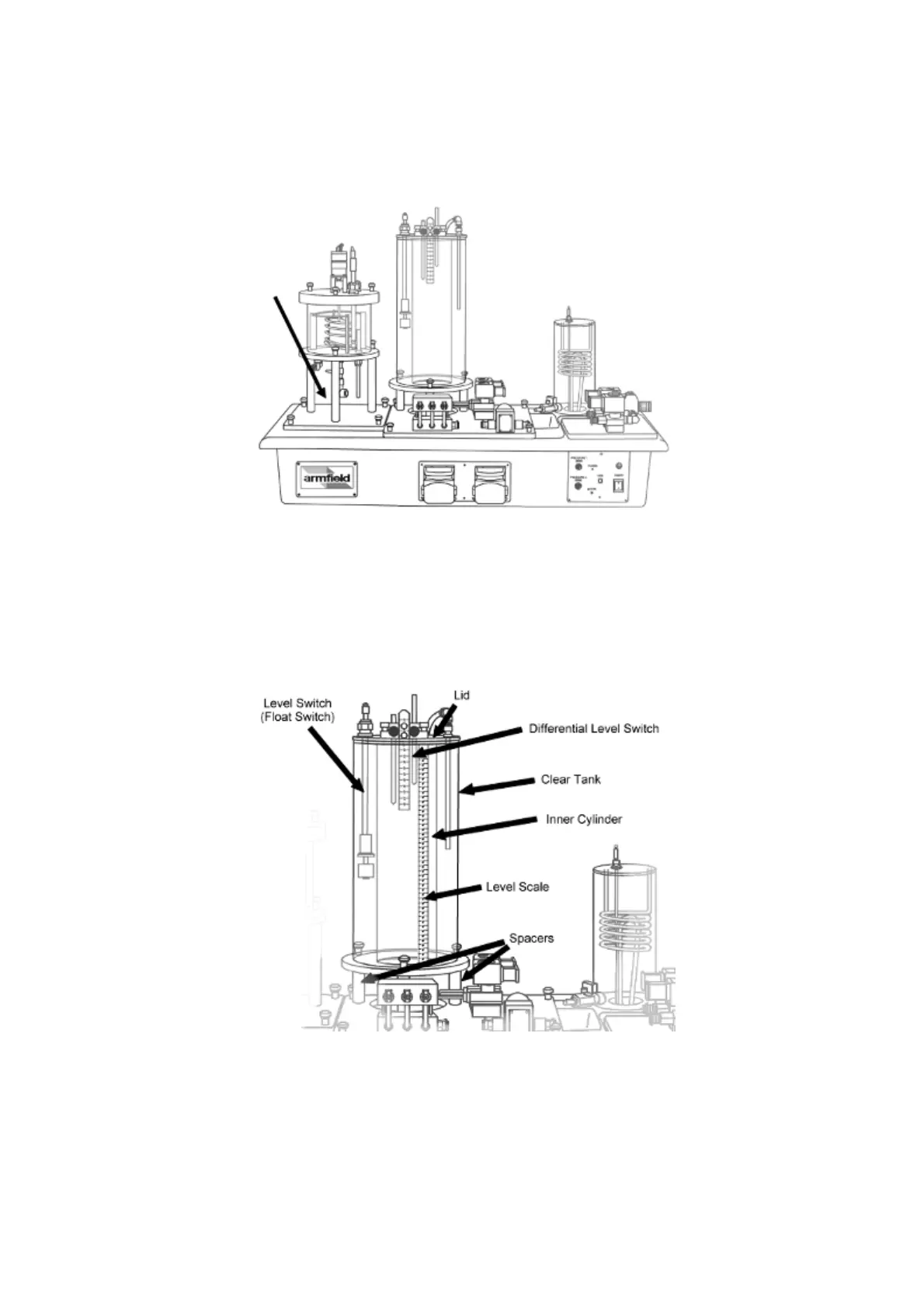

Large Process Vessel
The large acrylic vessel has a removable tube inside to vary the volume of the
vessel. When installed on the ‘O’ rings at the base, the tube creates an annular
vessel of reduced volume. The vessel is mounted on spacers to allow access to the
connections on the underside. The vessel includes a level scale. Tappings in the
